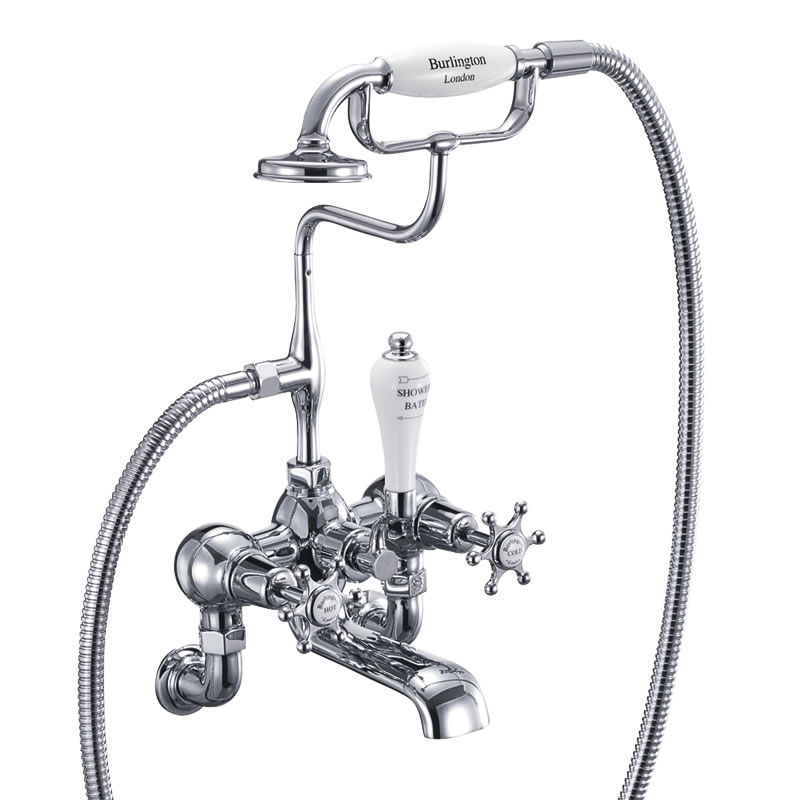

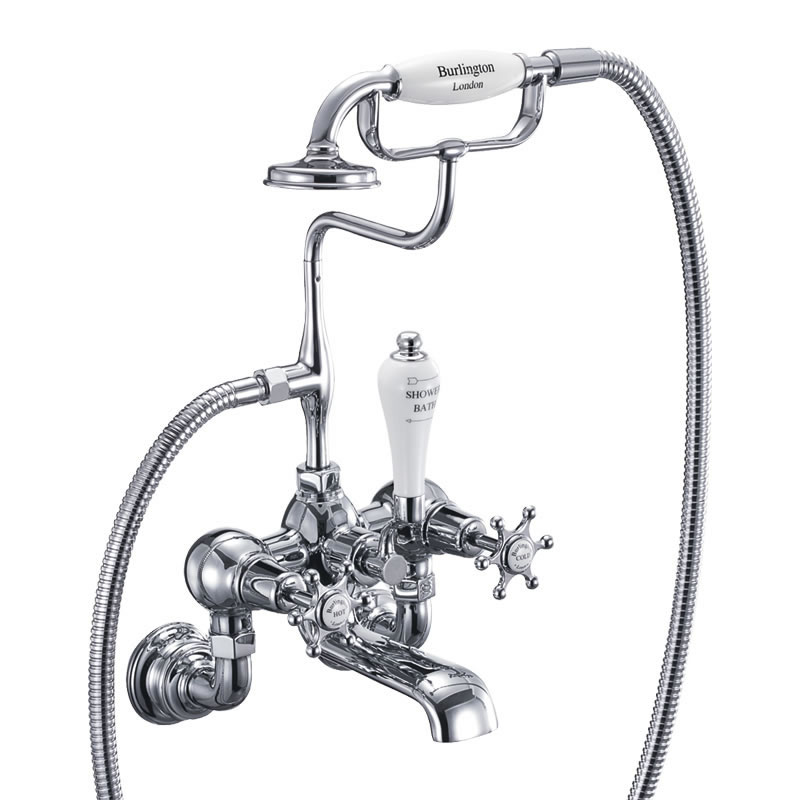

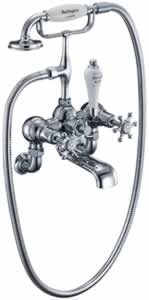

Burlington bath shower mixer wall mounted with S adjuster
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
|
Chrome
|
Claremont
|
Anglesey
|
Birkenhead
|
Kensington
|
quarter turn
|
tradional screw-down
|
|
Standard base
|
Regent base
|
|
White
|
Medici
|

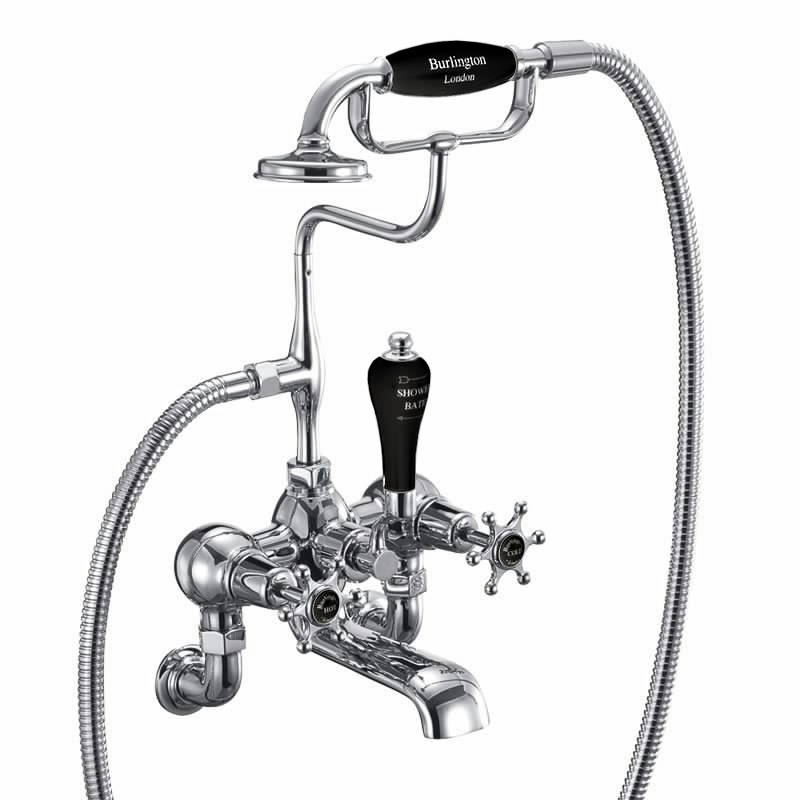

Black
|
As Shown
| T8_QT Quarter turn bath shower mixer |
| T17_2 Wall mounting unions |
| T3 Birkenhead tap handles |
| BI17-QT - Combined product code |
Colour
| T8_QT - tap - Polished Chrome |
| T17_2 - accessories - Polished Chrome |
| T3 - tap handle - Polished Chrome |
Gross Weight Including Packaging
| T8_QT - tap - 4.76kg |
| T17_2 - accessories - 0.82kg |
| T3 - tap handle - 0.2kg |
Packed Dimension
| T8_QT - 375 x 365 x 215 = 0.0294 m3 |
| T17_2 - 165 x 130 x 60 = 0.0013 m3 |
| T3 - 70 x 65 x 65 = 0.0003 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
Gold and Nickel finish is only available with the quarter turn option |
|
Gold and Nickel finish is only available with the Claremont handle |
|
Gold and Nickel finish is only available with white indicies |
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 22 | 22.6 | 25.2 | 27.2 | 29 | n/a | n/a |
| Spout (aerator) | 5.6 | 10.5 | 11.7 | 14.1 | 15.5 | n/a | n/a |
| Handset | 3.68 | 4.48 | 7.55 | 12.53 | 16.23 | n/a | n/a |
| ACSH1 | 1.5m Shower hose with ACS approval for T8, T8-QT, TF2S, TF3S, AF3S, T2DB |
| SP162 | aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1548 | aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| V26 | burlington Shower hose 1500mm |
| SP1209 | ceramic handle for Burlington telephone handset |
| SP523 | chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps |
| SP1771 | cradle connector (including O ring) for T8, T8-QT, T9, T9-QT |
| SP557 | cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT |
| SP931 | decorative cap of Burlington tap handles - cold |
| SP930 | decorative cap of Burlington tap handles - hot |
| SP191 | diverter for all finishes products of T8, T8-QT, T9, T9-QT |
| SP378 | diverter handle for T8, T8-QT, T9, T9-QT |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1547 | flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1480 | inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT |
| SP1722 | o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2 |
| SP1006 | o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT |
| SP317 | s Adjustor for T8, T8-QT, T9, T9-QT |
| SP1072 | set of parts used to connect the T8 BSM diverter and cross handle |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP68 | T8, T10, T11 3, 4 quarter turn COLD cartridge |
| SP67 | T8, T10, T11 3, 4 quarter turn HOT cartridge |
| SP99 | the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3 |
| SP1721 | thread pipe (1 piece) for T17, T17-2 |
Downloads
-
2D CAD-File - DWG -
BI17-QT
(BI17_LD.dwg)
-

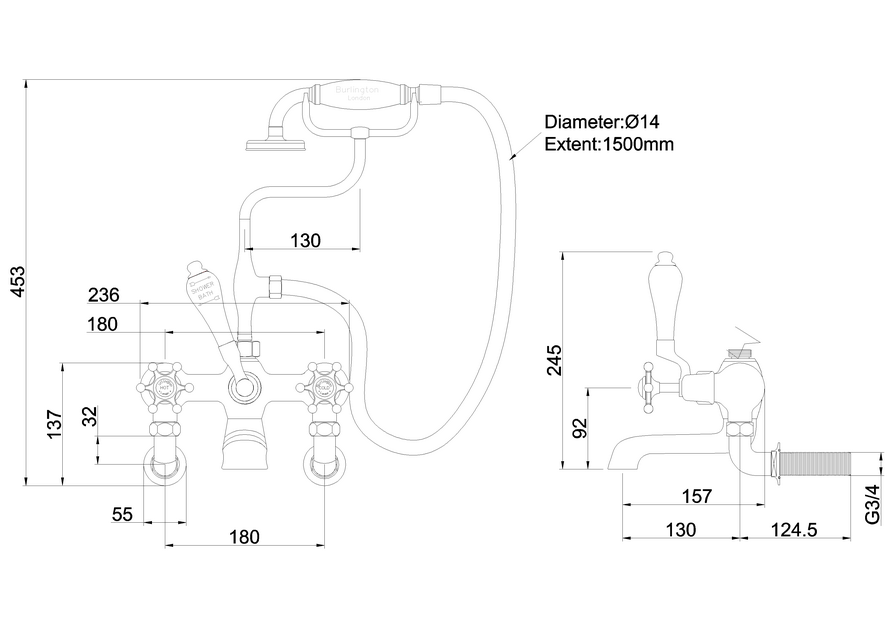

2D Drawing - PDF -
BI17-QT
(BI17_LD.pdf)
2D Drawing - PDF - BI17-QT
-
3D RFA BIMM Objects - File - RFA
-
BI17-QT
(T8_T17-2_T3.rfa)
- 3D DWG - File - DWG - T3 (T3.dwg)
- 3D DXF - File - DXF - T3 (T3.dxf)
- 3D IGS - File - IGS - T3 (T3.igs)
- 3D DWG - File - DWG - T17_2 (T17-2.dwg)
- 3D DXF - File - DXF - T17_2 (T17-2.dxf)
- 3D IGS - File - IGS - T17_2 (T17-2.igs)
- 3D IGS - File - IGS - T8_QT (T8.igs)
