Burlington bath shower mixer wall mounted with S adjuster
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options

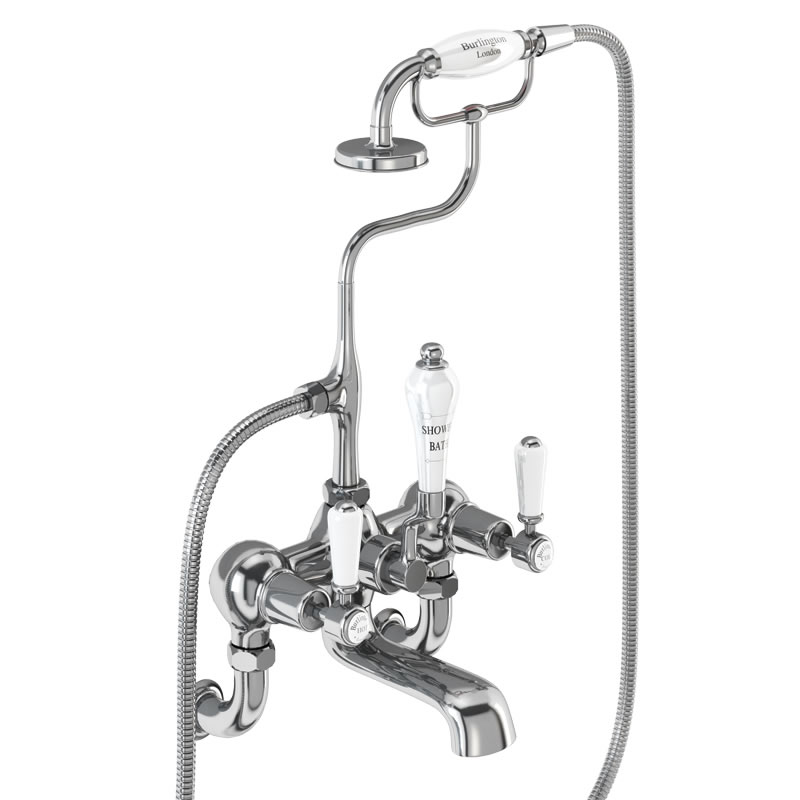

Kensington bath shower mixer - wall mounted Chrome
Tap Head Options (Chrome Finish Shown)
Claremont bath shower mixer - wall mounted Claremont Anglesey bath shower mixer - wall mounted Anglesey Birkenhead bath shower mixer - wall mounted Birkenhead Handle_v2.jpg Kensington
Quarter turn options
qt_done.jpg quarter turn
Tap Base options

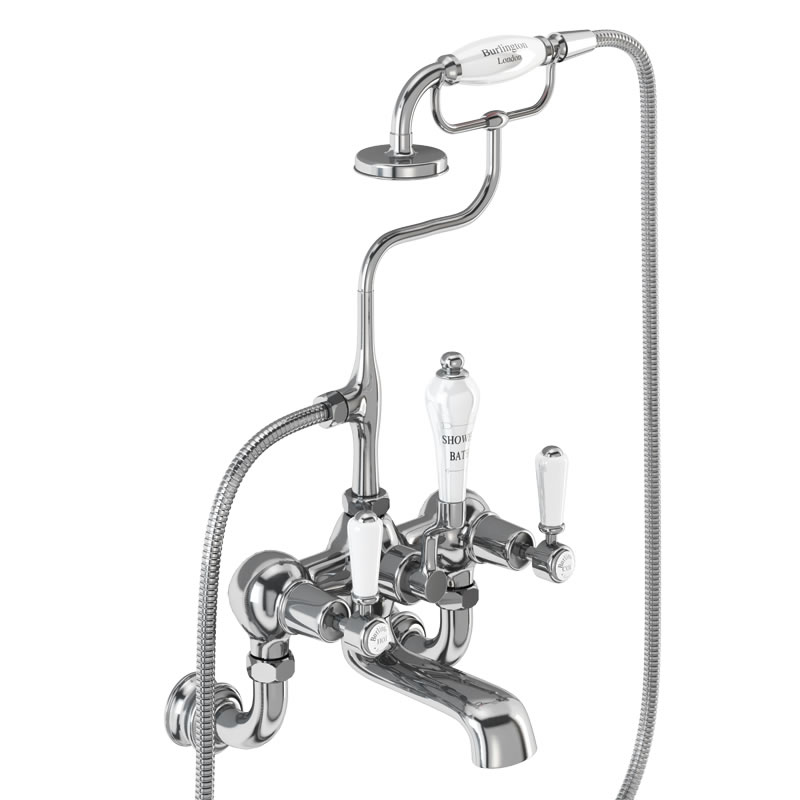

Kensington bath shower mixer - wall mounted Standard base Kensington Regent bath shower mixer - wall mounted Regent base
Indicies & lever finish

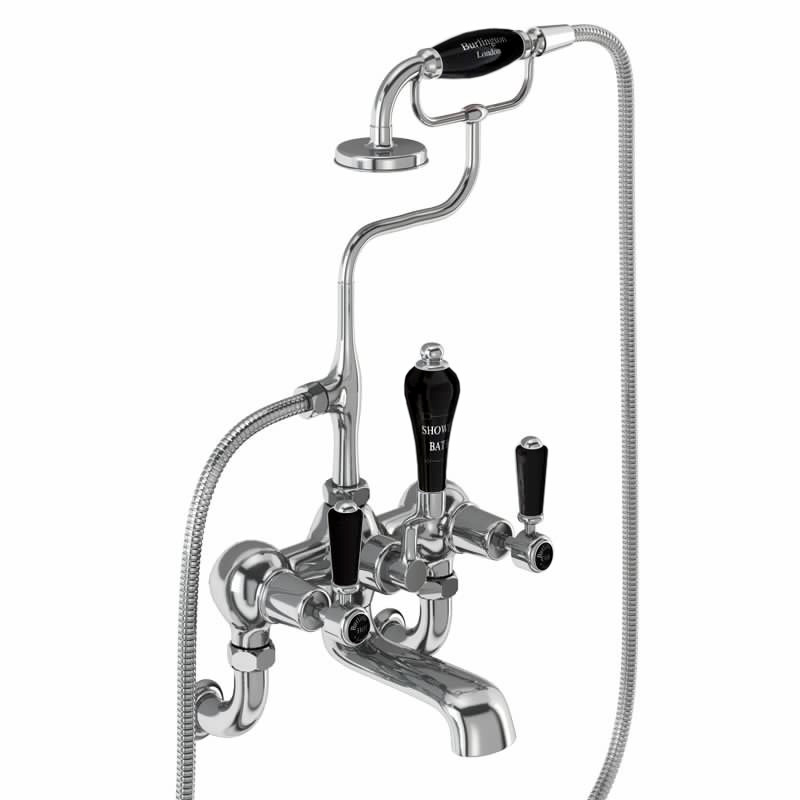

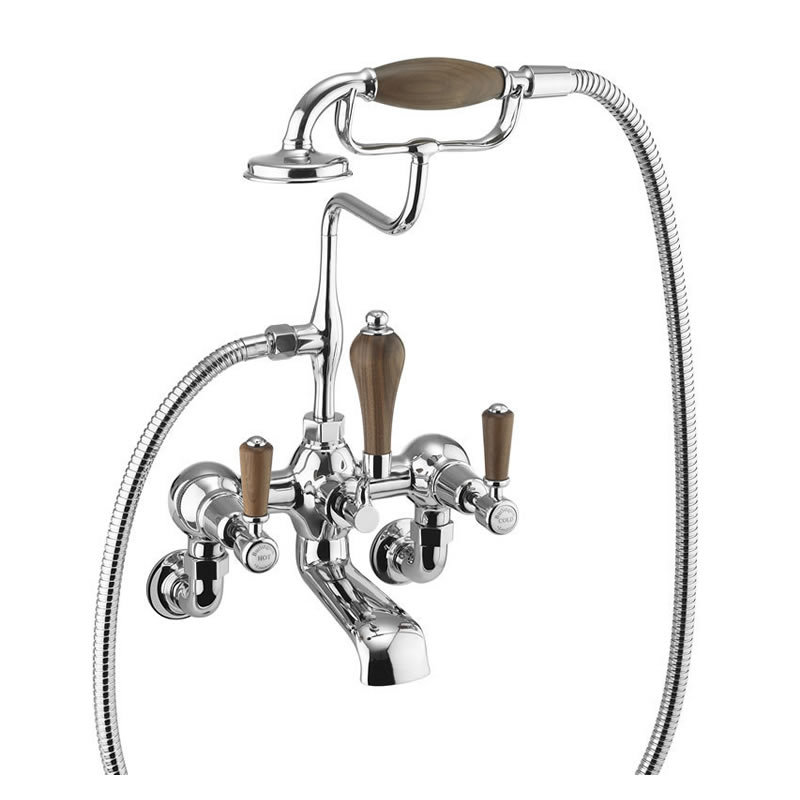

Kensington bath shower mixer - wall mounted White Kensington Medici bath shower mixer - wall mounted Medici Kensington bath shower mixer - wall mounted Black Kensington Walnut Bath Shower Mixer - Wall Mounted White & Walnut
Alternate Text
As Shown
T17_2 Wall mounting unions
T4 Kensington tap handles
T8_QT Quarter turn bath shower mixer
KE17-QT  -  Combined product code
Colour
T17_2 - accessories - Polished Chrome
T4 - tap handle - Polished Chrome
T8_QT - tap - Polished Chrome
Material
T17_2 - accessories - Brass
T4 - tap handle - Brass
T8_QT - tap - Brass
Size
T17_2 - 64 x 235 x 67mm
T4 - 94 x 27 x 23.2mm
T8_QT - 176.2 x 236 x 402.5mm
Nett Weight
T17_2 - accessories - 0.67kg
T4 - tap handle - 0.29kg
T8_QT - tap - 4.02kg
Gross Weight Including Packaging
T17_2 - accessories - 0.82kg
T4 - tap handle - 0.34kg
T8_QT - tap - 4.76kg
Packed Dimension
T17_2 - 165 x 130 x 60 = 0.0013 m3
T4 - 105 x 70 x 35 = 0.0003 m3
T8_QT - 375 x 365 x 215 = 0.0294 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
ACS Approved
Alternate Text
Additional Information
Gold and Nickel finish is only available with the quarter turn option
Gold and Nickel finish is only available with the Claremont handle
Gold and Nickel finish is only available with white indicies
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Handset 3.68  4.48  7.55  12.53  16.23  n/a  n/a
Spout (straightener) 22  22.6  25.2  27.2  29  n/a  n/a
Spout (aerator) 5.6  10.5  11.7  14.1  15.5  n/a  n/a
ACSH1 1.5m Shower hose with ACS approval for T8, T8-QT, TF2S, TF3S, AF3S, T2DB
SP162 aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548 aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
V26 burlington Shower hose 1500mm
SP1209 ceramic handle for Burlington telephone handset
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP1771 cradle connector (including O ring) for T8, T8-QT, T9, T9-QT
SP557 cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP191 diverter for all finishes products of T8, T8-QT, T9, T9-QT
SP378 diverter handle for T8, T8-QT, T9, T9-QT
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547 flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1480 inner connector for T10, T10-QT, T11, T11-QT, T8, T8-QT, T9, T9-QT
SP1722 o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2
SP1006 o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP317 s Adjustor for T8, T8-QT, T9, T9-QT
SP1072 set of parts used to connect the T8 BSM diverter and cross handle
SP68 T8, T10, T11 3, 4 quarter turn COLD cartridge
SP67 T8, T10, T11 3, 4 quarter turn HOT cartridge
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1721 thread pipe (1 piece) for T17, T17-2
Downloads
  • Instructions - PDF - T4 (English)
  • Instructions - PDF - T8_QT (English)
  • Instructions - PDF - T8_QT (French)
  • Instructions - PDF - T4 (French)
  • 3D DWG - File - DWG  -  KE17-QT (T8.dwg)
  • 3D DXF - File - DXF  -  KE17-QT (T8.dxf)
  • 3D IGS - File - IGS  -  KE17-QT (T8.igs)
  • 3D IGS - File - IGS - T4 (t4.igs)
  • 3D DWG - File - DWG - T17_2 (T17-2.dwg)
  • 3D DXF - File - DXF - T17_2 (T17-2.dxf)
  • 3D IGS - File - IGS - T17_2 (T17-2.igs)
  • 3D IGS - File - IGS - T8_QT (T8.igs)
  • Product image 1 - jpg
  • Product image 2 - jpg

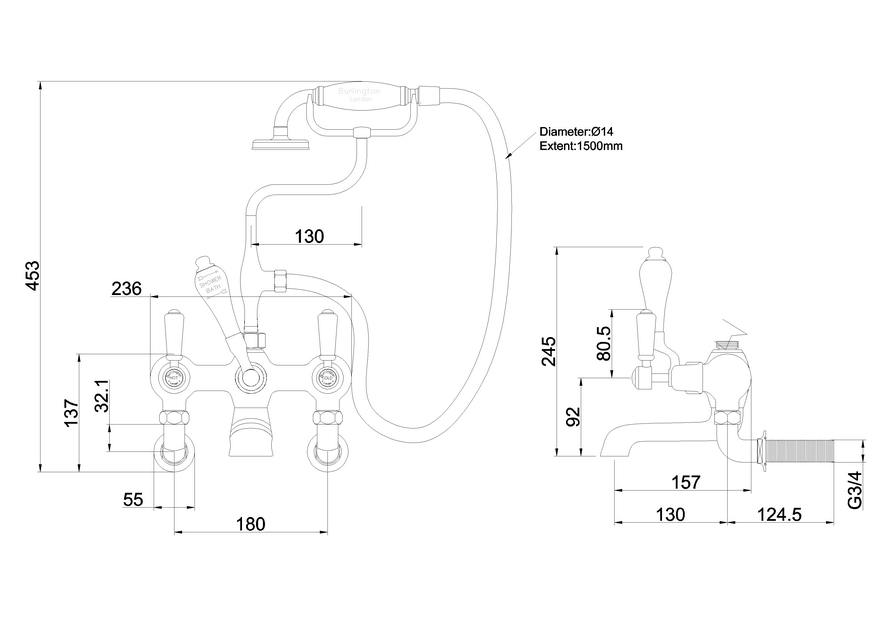

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
