Design 8 Curved Quad with Single Door
Product Options
Sizes (click on size to refresh details)
80cm (D)
|
90cm (D)
|
100cm (D)
|
As Shown
| DQSSC0800+ Curved Quad with Single Door 800mm |
Material
| DQSSC0800+ - quadrant - Aluminium |
Nett Weight
| DQSSC0800+ - quadrant - 47.2kg |
Gross Weight Including Packaging
| DQSSC0800+ - quadrant - 50.17kg |
Packed Dimension
| DQSSC0800+ - 2045 x 795 x 195 = 0.317 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
| DS0000043_V2 | bright chrome, bottom profile L=257 for DQSSC0800+ DQDSC0800+ |
| DS0000012_V2 | cap |
| DS0000011_V2 | cap |
| DS0000023_V2 | cap(LH) |
| DS0000022_V2 | cap(RH) |
| DS0000009_V2 | cover of hinge for all Design products |
| DS0000018_V2 | cover(LH) |
| DS0000017_V2 | cover(RH) |
| DS0000020_V2 | cover- IM-AL |
| DS0000016_V2 | fixed part |
| DS0000019_V2 | glass clamp for all Design products |
| DS0000021_V2 | hinge for all Design products |
| DS0000010_V2 | M4 *8mm Screw for all Design products |
| DS0000014_V2 | wall bracket |
| DS0000015_V2 | wall bracket cover |
| DS0000001_V2 | wall profile, L=1926 for Hinge door, Side panel, quadrant door |
Downloads
-
2D CAD-File - DWG -
DQSSC0800+
(DQSSC0800_.dwg)
-

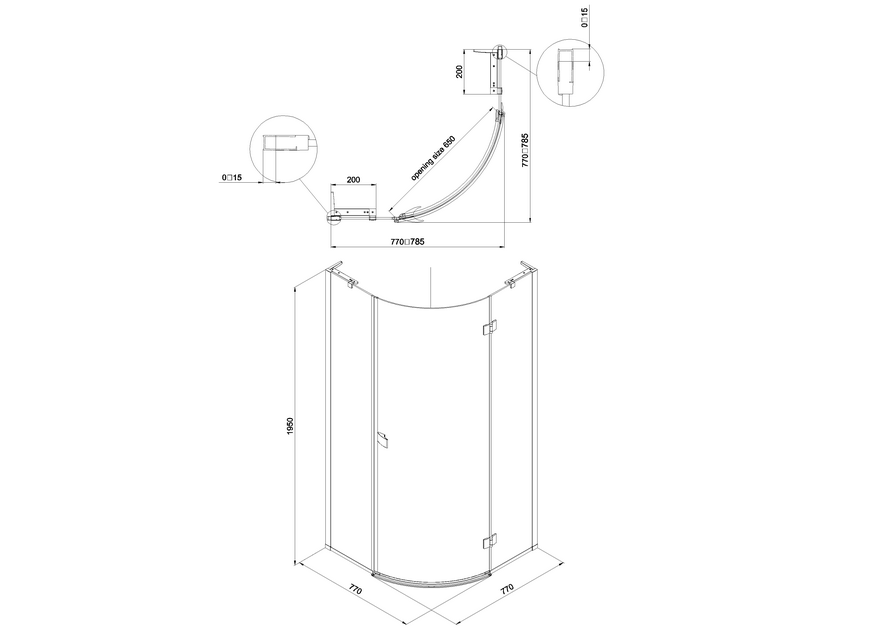

2D Drawing - PDF -
DQSSC0800+
(DQSSC0800_.pdf)
2D Drawing - PDF - DQSSC0800+
