Design 8 Curved Quad with Single Door
Product Options
Sizes (click on size to refresh details)
80cm (D)
|
90cm (D)
|
100cm (D)
|
As Shown
| DQSSC1000A+ Curved Quad with Single Door 1000mm Box A |
| DQSSC1000B+ Curved Quad with Single Door 1000mm Box B |
Gross Weight Including Packaging
| DQSSC1000A+ - quadrant - 26.25kg |
| DQSSC1000B+ - quadrant - 40.4kg |
Packed Dimension
| DQSSC1000A+ - 2030 x 785 x 195 = 0.3107 m3 |
| DQSSC1000B+ - 2025 x 555 x 65 = 0.0731 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
| DS0000005_V2 | bottom seat(LH) |
| DS0000006_V2 | bottom seat(RH) |
| DS0000042_V2 | bright chrome, bottom profile L=457 for DQSSC1000B+ |
| DS0000011_V2 | cap |
| DS0000012_V2 | cap |
| DS0000023_V2 | cap(LH) |
| DS0000022_V2 | cap(RH) |
| DS0000009_V2 | cover of hinge for all Design products |
| DS0000018_V2 | cover(LH) |
| DS0000017_V2 | cover(RH) |
| DS0000020_V2 | cover- IM-AL |
| DS0000007_V2 | end part(RH) |
| DS0000016_V2 | fixed part |
| DS0000019_V2 | glass clamp for all Design products |
| DS0000021_V2 | hinge for all Design products |
| DS0000010_V2 | M4 *8mm Screw for all Design products |
| DS0000014_V2 | wall bracket |
| DS0000015_V2 | wall bracket cover |
| DS0000004_V2 | wall frame sealing strip I L=1926 |
| DS0000003_V2 | wall frame sealing strip, L=1950 |
| DS0000001_V2 | wall profile, L=1926 for Hinge door, Side panel, quadrant door |
Downloads
-
2D CAD-File - DWG -
DQSSC1000+
(DQSSC1000_.dwg)
-

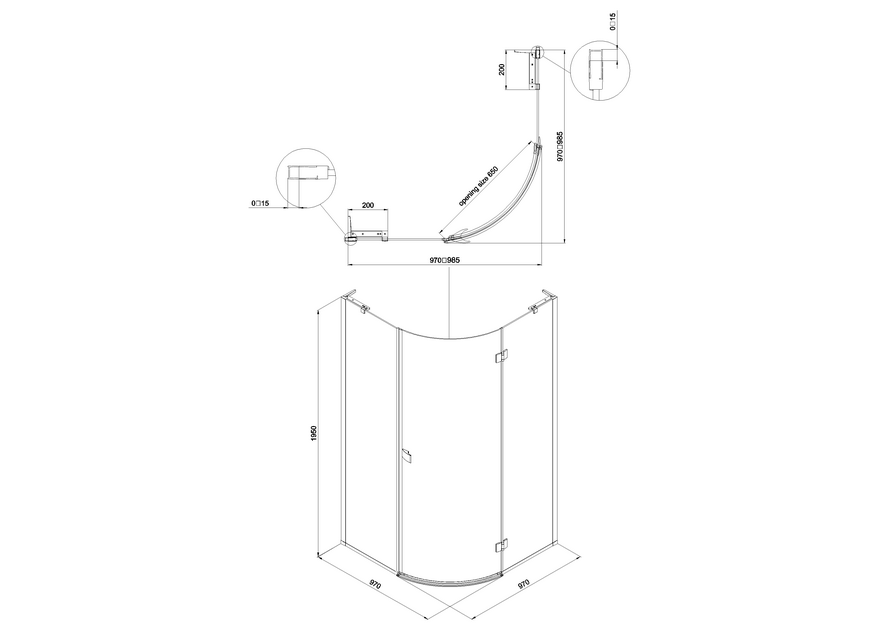

2D Drawing - PDF -
DQSSC1000+
(DQSSC1000_.pdf)
2D Drawing - PDF - DQSSC1000+
