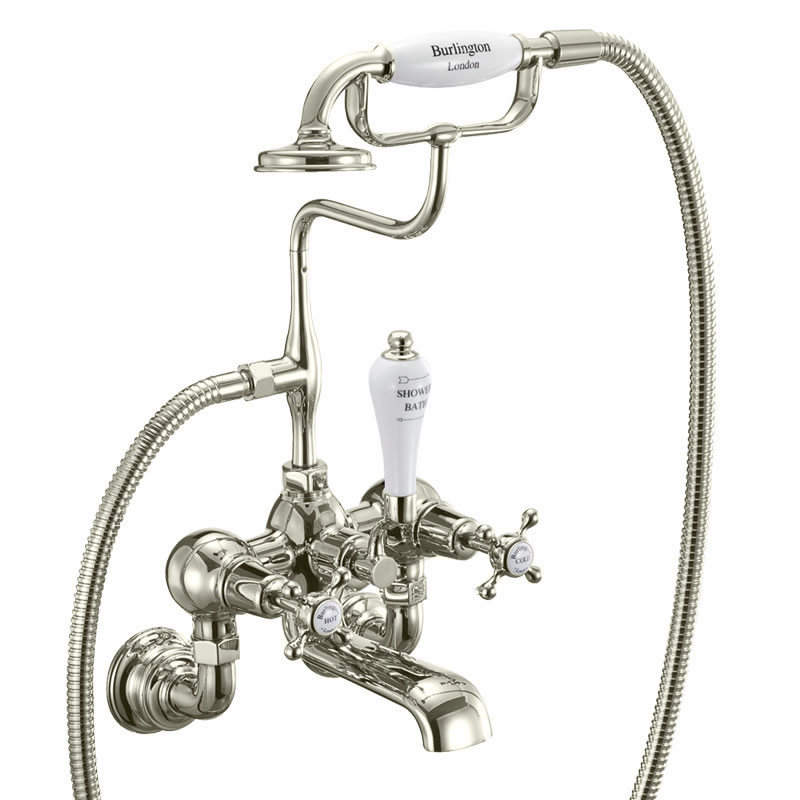

Burlington bath shower mixer wall mounted with S adjuster
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Chrome
|
Gold
|
Nickel
|
Brushed Nickel
|
Claremont
|
quarter turn
|
|
Standard base
|
Regent base
|
|
White
|
As Shown
| T8-QT NKL Quarter Turn Bath Shower Mixer (Including the standard cradle, 'S' adjuster, ceramic diverter, hose, ceramic telephone handset, excluding tap heads, bases and unions) -nickel |
| T1 NKL Claremont tap handles (pair) -nickel |
| T17-2 NKL Wall mounting unions (for Bath Shower Mixer & Bath Filler, 3/4",pair) -nickel |
| CL17-QT NKL - Combined product code |
Colour
| T8-QT NKL - tap - Polished Nickel |
| T1 NKL - tap handle - Polished Nickel |
| T17-2 NKL - accessories - Polished Nickel |
Gross Weight Including Packaging
| T8-QT NKL - tap - 4.76kg |
| T1 NKL - tap handle - 0.17kg |
| T17-2 NKL - accessories - 0.82kg |
Packed Dimension
| T8-QT NKL - 330 x 315 x 420 = 0.0437 m3 |
| T1 NKL - 52 x 52 x 65 = 0.0002 m3 |
| T17-2 NKL - 180 x 168 x 73 = 0.0022 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
Gold and Nickel finish is only available with the Claremont handle |
|
Gold and Nickel finish is only available with the quarter turn option |
|
Gold and Nickel finish is only available with white indicies |
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 22 | 22.6 | 25.2 | 27.2 | 29 | n/a | n/a |
| Spout (aerator) | 5.6 | 10.5 | 11.7 | 14.1 | 15.5 | n/a | n/a |
| Handset | 3.68 | 4.48 | 7.55 | 12.53 | 16.23 | n/a | n/a |
| SP1658 | 3, 4 quarter turn COLD cartridge for T8-QT NKL |
| SP1659 | 3, 4 quarter turn HOT cartridge for T8-QT NKL |
| V29 NKL | burlington Ceramic Handset in nickel for T8-QT NKL, AF3S NKL, TF2S NKL |
| SP557 NKL | cradle, handset holder, S adjuster in nickel finish for T8-QT NKL |
| SP1606 | diverter handle for T8-QT NKL |
| V26 NKL | hose in nickel for T8-QT NKL, AF3S NKL, TF2S NKL |
| SP1555 | nickel finish Bell shape handle part for products T27-QT NKL, T12-QT NKL, T14-QT NKL, T5-QT NKL, T6-QT NKL, T8-QT NKL |
| SP1722 | o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2 |
Downloads
-
2D CAD-File - DWG -
CL17-QT NKL
(CL17_LD.dwg)
-
2D Drawing - PDF -
CL17-QT NKL
(CL17_LD.pdf)
2D Drawing - PDF - CL17-QT NKL
-
3D RFA BIMM Objects - File - RFA
-
CL17-QT NKL
(T8-wall mounted.rfa)
- 3D IGS - File - IGS - T1 NKL (T1.igs)
- 3D DWG - File - DWG - T17-2 NKL (T17-2.dwg)
- 3D DXF - File - DXF - T17-2 NKL (T17-2.dxf)
- 3D IGS - File - IGS - T17-2 NKL (T17-2.igs)
- 3D IGS - File - IGS - T8-QT NKL (T8.igs)
