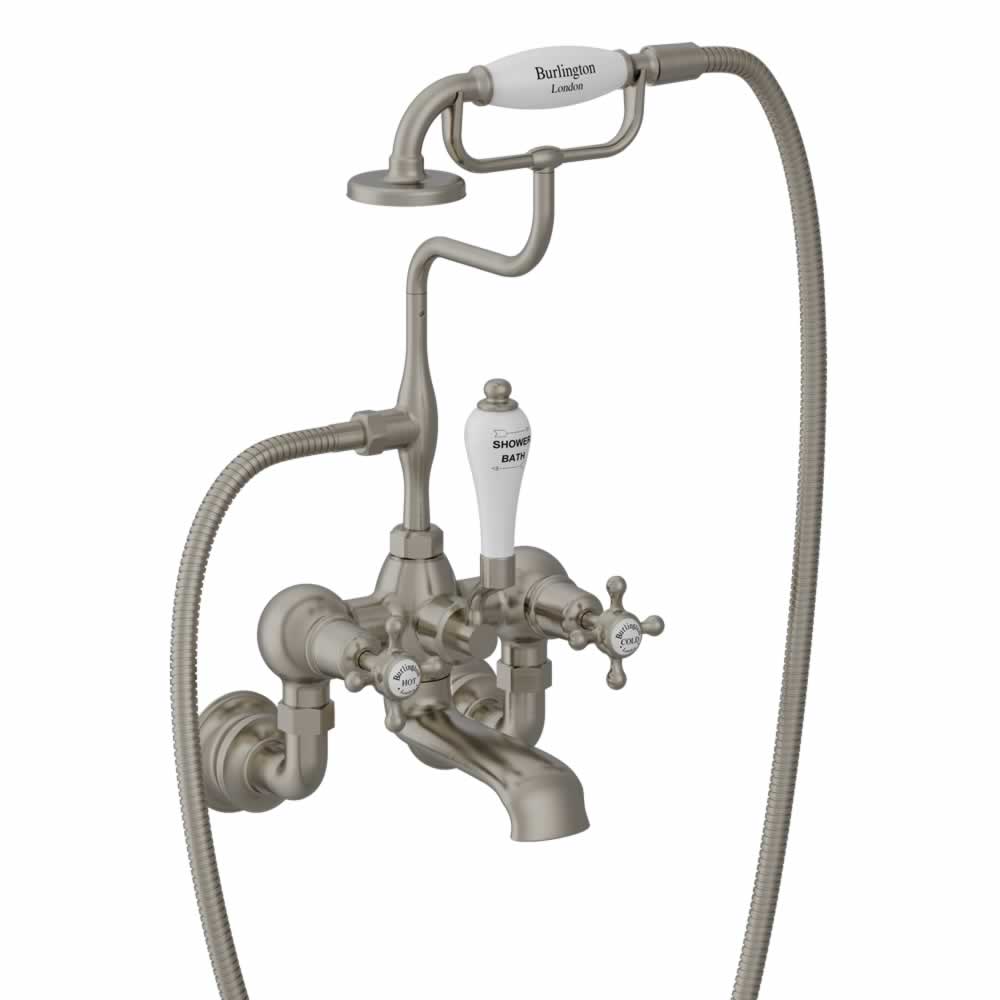

Burlington bath shower mixer wall mounted with S adjuster
Product Options
Finish Options
Tap Head Options (Chrome Finish Shown)
Quarter turn options
Tap Base options
Indicies & lever finish
Chrome
|
Gold
|
Nickel
|
Brushed Nickel
|
Claremont
|
quarter turn
|
|
Standard base
|
Regent base
|
|
White
|
As Shown
| T8_QTBNKL Quarter Turn Bath Shower Mixer Brushed Nickel |
| T1BNKL Claremont tap handles (pair) Brushed Nickel |
| T17_2BNKL Wall mounting unions Brushed Nickel |
| CL17-QT BNKL - Combined product code |
Gross Weight Including Packaging
| T8_QTBNKL - - 4.76kg |
| T1BNKL - - 0.17kg |
| T17_2BNKL - - 0.82kg |
Packed Dimension
| T8_QTBNKL - 375 x 365 x 215 = 0.0294 m3 |
| T1BNKL - 60 x 60 x 62 = 0.0002 m3 |
| T17_2BNKL - 165 x 130 x 60 = 0.0013 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
|
ACS Approved |
Additional Information
|
Gold and Nickel finish is only available with the quarter turn option |
|
Gold and Nickel finish is only available with the Claremont handle |
|
Gold and Nickel finish is only available with white indicies |
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 22 | 22.6 | 25.2 | 27.2 | 29 | n/a | n/a |
| Spout (aerator) | 5.6 | 10.5 | 11.7 | 14.1 | 15.5 | n/a | n/a |
| Handset | 3.68 | 4.48 | 7.55 | 12.53 | 16.23 | n/a | n/a |
| SP1964 | 3, 4 Quarter Turn Cold Cartridge for T8_QTBNKL |
| SP1965 | 3, 4 Quarter Turn Hot Cartridge for T8_QTBNKL |
| SP162 | aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1548 | aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1209 | ceramic handle for Burlington telephone handset |
| SP191 | diverter for all finishes products of T8, T8-QT, T9, T9-QT |
| SP378BNKL | diverter handle in brushed nickel for T8-QT BNKL |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1547 | flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8 |
| SP1722 | o ring (1 piece) for all finishes products of T2DS, T2DB, T18, T17, T17-2 |
| SP1006 | o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
| SP1721 | thread pipe (1 piece) for T17, T17-2 |
Downloads
-
2D CAD-File - DWG -
CL17-QT BNKL
(CL17_LD.dwg)
-
2D Drawing - PDF -
CL17-QT BNKL
(CL17_LD.pdf)
2D Drawing - PDF - CL17-QT BNKL
