100 Freestanding Left Hand Vanity Unit with Doors
Product Options
Finish Options
Worktop options
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
Blue
|
Matt Green
|
|
Minerva Carrara white worktop
|
Minerva white worktop
|
Minerva black granite worktop
|

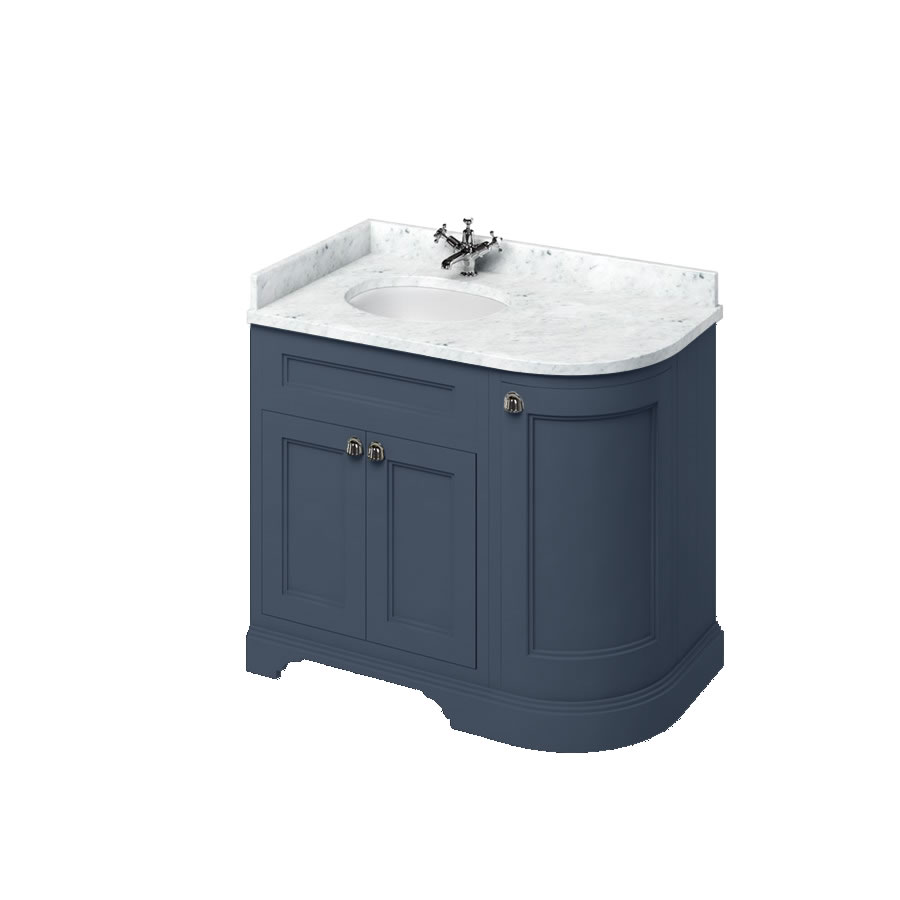

As Shown
| FC2B Freestanding 100 Curved Corner Vanity Unit Left Hand 'Door - Blue |
| BC98L Minerva carrara white LH with vanity bowl |
| FC2B_BC98L - Combined product code |
Material
| FC2B - base unit - Engineered Wood - MDF |
| BC98L - worktop with intergrated basin - minerva solid surface material |
Gross Weight Including Packaging
| FC2B - base unit - 61.3kg |
| BC98L - worktop with intergrated basin - 35kg |
Packed Dimension
| FC2B - 1075 x 660 x 1075 = 0.7627 m3 |
| BC98L - 1060 x 625 x 255 = 0.1689 m3 |
Tap Hole Options
| Tap holes are drilled by the installer. |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Minerva worktops are supplied with an integrated bowl with overflow, and no tap holes. Tap holes are drilled by the installer in the required position and configuration. A template is provided with the Minerva tops indicating tap hole positions and sizes. |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Doors are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
|
One adjustable glass shelf |
|
A backsplash is supplied with the worktop but is optional as to whether you want to use it. This can be fit into place using silicon. |
| SP907 | brackets for bath panels and Burlington curved units (2 pieces) |
| SPFC1CP-B | curve panel for FC1B, FC2B, FC3B, FC4B, FC5B |
| SP763 | curved glass shelf for FC1, FC2, FC3, FC4 |
| SP1617 | flat door panel for FF8B, FC9B, FC1B, FC2B, FC3B |
| SP280 | glass shelf fixings (set of 4) |
| SP993 | glass shelf fixings of curved units FC1, FC2, FC3, FC4, FC7 (one set of 4 pieces) |
| SP674 | hinges for the curved panel of FC1, FC2, FC3, FC4, FC7, FC5 (1 set of 2 pieces) |
| P100LB | plinth for Freestanding 100 Curved Corner Vanity Unit Left Hand - Blue |
| SP761 | rectangular glass shelf for FC2, FC3 |
| SP949 | soft close hinges for FF8, FC1, FC2, FC3, FC9, RIVF580, RIVF650 – one pair |
Downloads
- 2D CAD-File - DWG - FC2B_BC98L (FC2_FT4BL-B.dwg)
-
2D Drawing - PDF -
FC2B_BC98L
(FC2_FT4BL-B.pdf)
2D Drawing - PDF - FC2B_BC98L
-
3D DWG - File - DWG
-
FC2B_BC98L
(90549.dwg)
-
3D DXF - File - DXF
-
FC2B_BC98L
(90549.dxf)
-
3D IGS - File - IGS
-
FC2B_BC98L
(90549.igs)
-
3D RFA BIMM Objects - File - RFA
-
FC2B_BC98L
(90549.rfa)
