100 Freestanding Left Hand Vanity Unit with Doors
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options
Freestanding 100 Curved Corner Vanity Unit Left Hand - Dark Olive and Minerva Carrara white worktop with integrated white basin Dark Olive Freestanding 100 Curved Corner Vanity Unit Left Hand - Sand and Minerva Carrara white worktop with integrated white basin Sand Freestanding 100 Curved Corner Vanity Unit Left Hand - Matt White and Minerva Carrara white worktop with integrated white basin Matt White
Freestanding 100 Curved Corner Vanity Unit Left Hand - Classic Grey and Minerva Carrara white worktop with integrated white basin Classic Grey Freestanding 100 Curved Corner Vanity Unit Left Hand - Blue and Minerva Carrara white worktop with integrated white basin Blue Freestanding 100 Curved Corner Vanity Unit Left Hand - Matt Green Matt Green
Worktop options

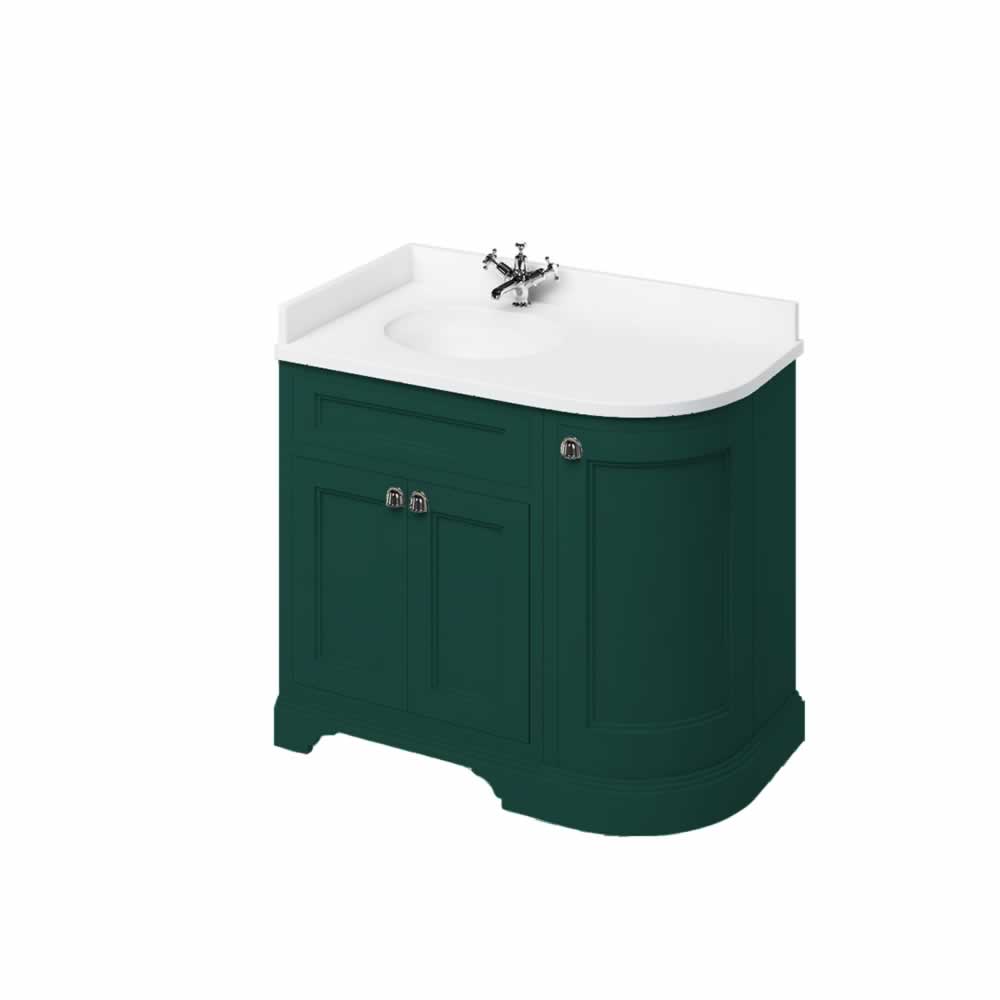

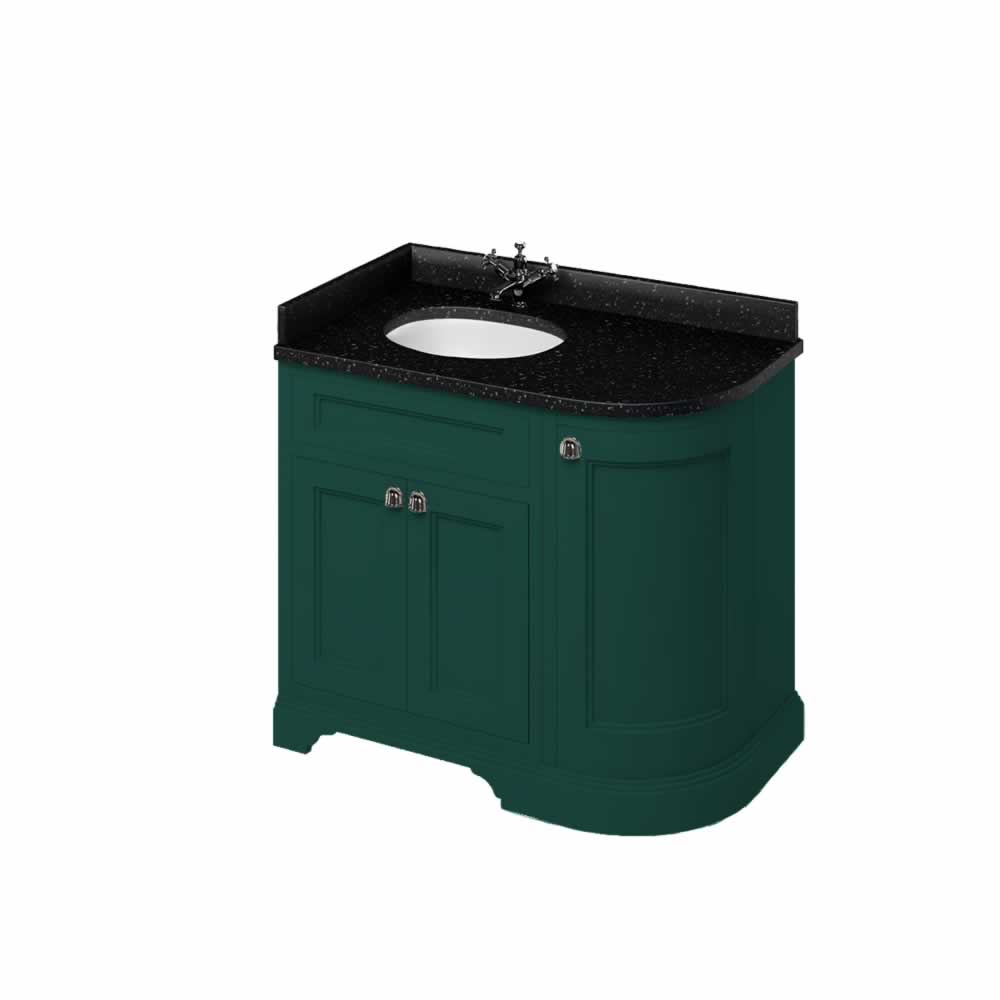

Freestanding 100 Curved Corner Vanity Unit Left Hand - Matt Green Minerva Carrara white worktop Freestanding 100 Curved Corner Vanity Unit Left Hand - Matt Green Minerva white worktop Freestanding 100 Curved Corner Vanity Unit Left Hand - Matt Green Minerva black granite worktop
Alternate Text
As Shown
FC2MG Door unit left end round corner Matt Green
BC98L Minerva carrara white LH with vanity bowl
Colour
FC2MG - base unit - Matt Green
BC98L - worktop with intergrated basin - carrara white
Material
FC2MG - base unit - Engineered Wood - MDF
BC98L - worktop with intergrated basin - minerva solid surface material
Size
FC2MG - 548 x 983 x 820mm
Nett Weight
FC2MG - base unit - 52.5kg
BC98L - worktop with intergrated basin - 32kg
Gross Weight Including Packaging
FC2MG - base unit - 61.3kg
BC98L - worktop with intergrated basin - 35kg
Packed Dimension
FC2MG - 1075 x 660 x 1075 = 0.7627 m3
BC98L - 1060 x 625 x 255 = 0.1689 m3
Tap Hole Options
Tap holes are drilled by the installer.
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
EN14749:2016
Additional Information
Minerva worktops are supplied with an integrated bowl with overflow, and no tap holes. Tap holes are drilled by the installer in the required position and configuration. A template is provided with the Minerva tops indicating tap hole positions and sizes.
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight.
Doors are soft closing
Chrome plated metal handles
Fully assembled
One adjustable glass shelf
A backsplash is supplied with the worktop but is optional as to whether you want to use it. This can be fit into place using silicon.
SP907 brackets for bath panels and Burlington curved units (2 pieces)
SPFF8GS glass shelf for FF8, FC1, FC2, FC3, FC9
SP674 hinges for the curved panel of FC1, FC2, FC3, FC4, FC7, FC5 (1 set of 2 pieces)
SP761 rectangular glass shelf for FC2, FC3
Downloads
  • Instructions - PDF - FC2MG (English)
  • Instructions - PDF - FC2MG (French)
  • 3D DWG - File - DWG  -  FC2MG (90549.dwg)
  • 3D DXF - File - DXF  -  FC2MG (90549.dxf)
  • 3D IGS - File - IGS  -  FC2MG (90549.igs)
  • 3D RFA BIMM Objects - File - RFA  -  FC2MG (90549.rfa)
  • Product image 1 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
