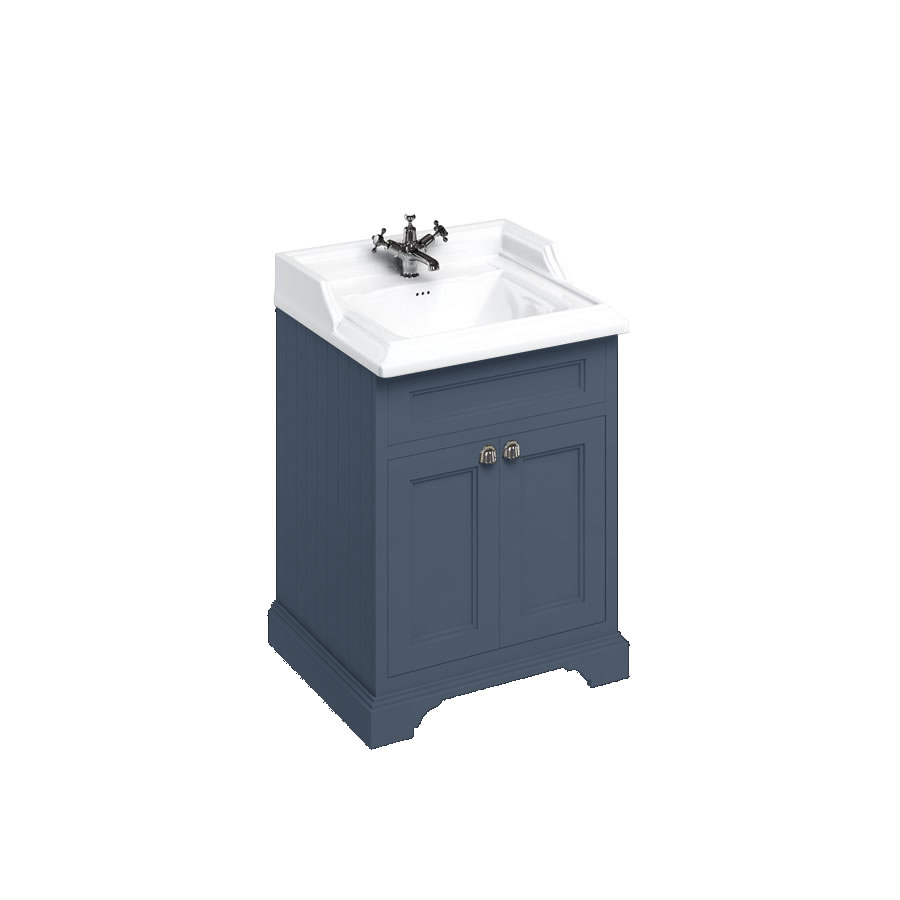

Freestanding 650 vanity unit with doors & Classic 650 basin for standard waste & overflow
Product Options
Finish Options
Tap hole options
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
Blue
|
Matt Green
|
1 tap hole
|
2 tap holes
|
3 tap holes
|
As Shown
| B152TH Classic 65cm basin two tap holes |
| FF8B Freestanding 65 Vanity Unit with doors - Blue |
| FF8B_B15 2TH - Combined product code |
Nett Weight
| B152TH - basin - 19.05kg |
| FF8B - base unit - 31.2kg |
Gross Weight Including Packaging
| B152TH - basin - 22.9kg |
| FF8B - base unit - 36.5kg |
Packed Dimension
| B152TH - 670 x 597 x 315 = 0.126 m3 |
| FF8B - 730 x 615 x 885 = 0.3973 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
|
EN14749:2016 |
Additional Information
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Doors are soft closing |
|
Please note that when ordering the basin in a 2TH option it will be supplied with a small chain stay hole for the plug and chain |
|
Chrome plated metal handles |
|
Fully assembled |
|
One adjustable glass shelf. |
| SP945 | assembling screws & fixings for Burlington and Aqua furniture (10pcs for one set) |
| SP1617 | flat door panel for FF8B, FC9B, FC1B, FC2B, FC3B |
Downloads
-
2D CAD-File - DWG -
FF8B_B15 2TH
(FF8_B15 2TH.dwg)
-
2D Drawing - PDF -
FF8B_B15 2TH
(FF8_B15 2TH.pdf)
2D Drawing - PDF - FF8B_B15 2TH
-
3D DXF - File - DXF
-
FF8B_B15 2TH
(90525.dxf)
-
3D DWG - File - DWG
-
FF8B_B15 2TH
(90525.dwg)
-
3D IGS - File - IGS
-
FF8B_B15 2TH
(90525.igs)
-
3D RFA BIMM Objects - File - RFA
-
FF8B_B15 2TH
(90525.rfa)
