Freestanding 650 vanity unit with doors & Classic 650 basin for standard waste & overflow
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options

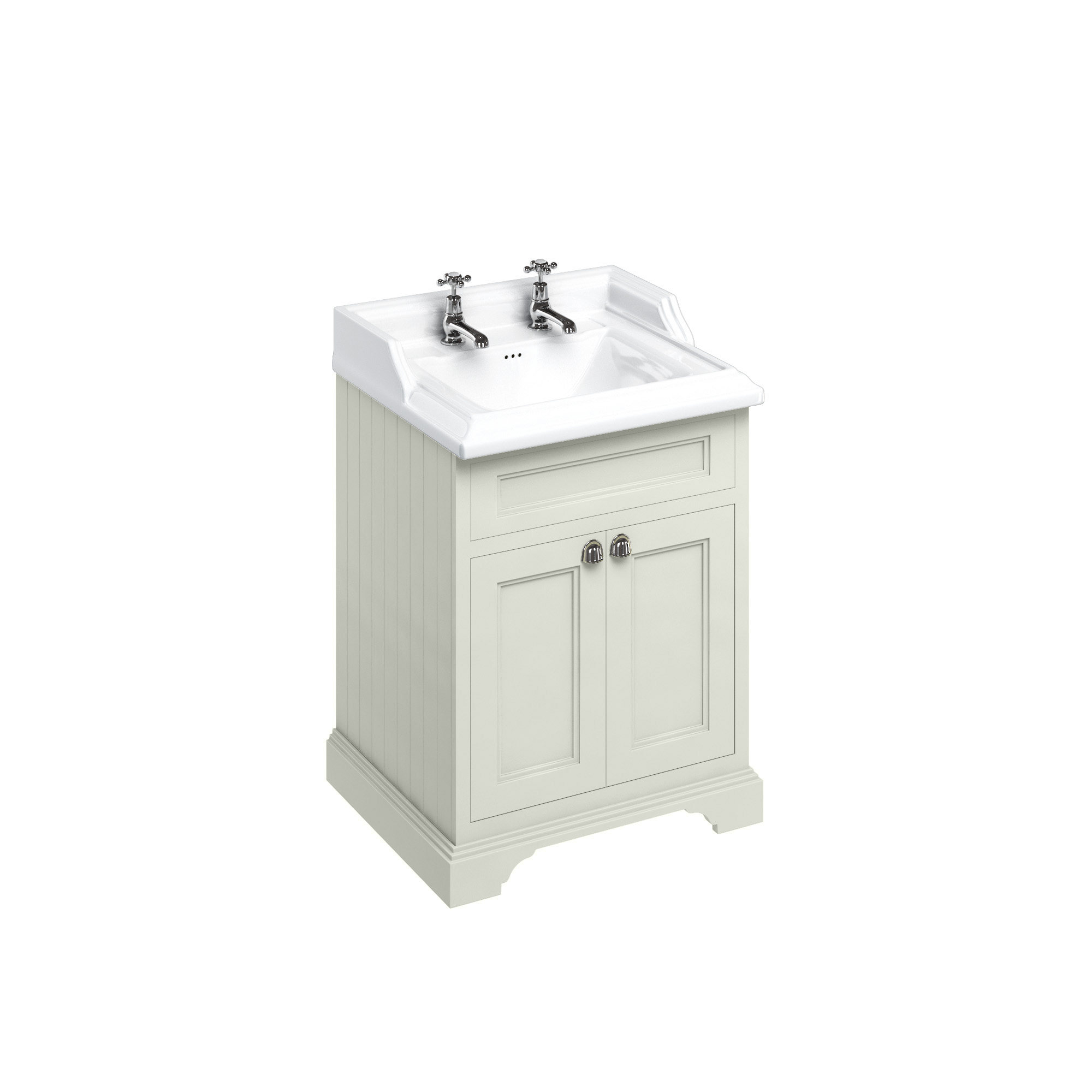

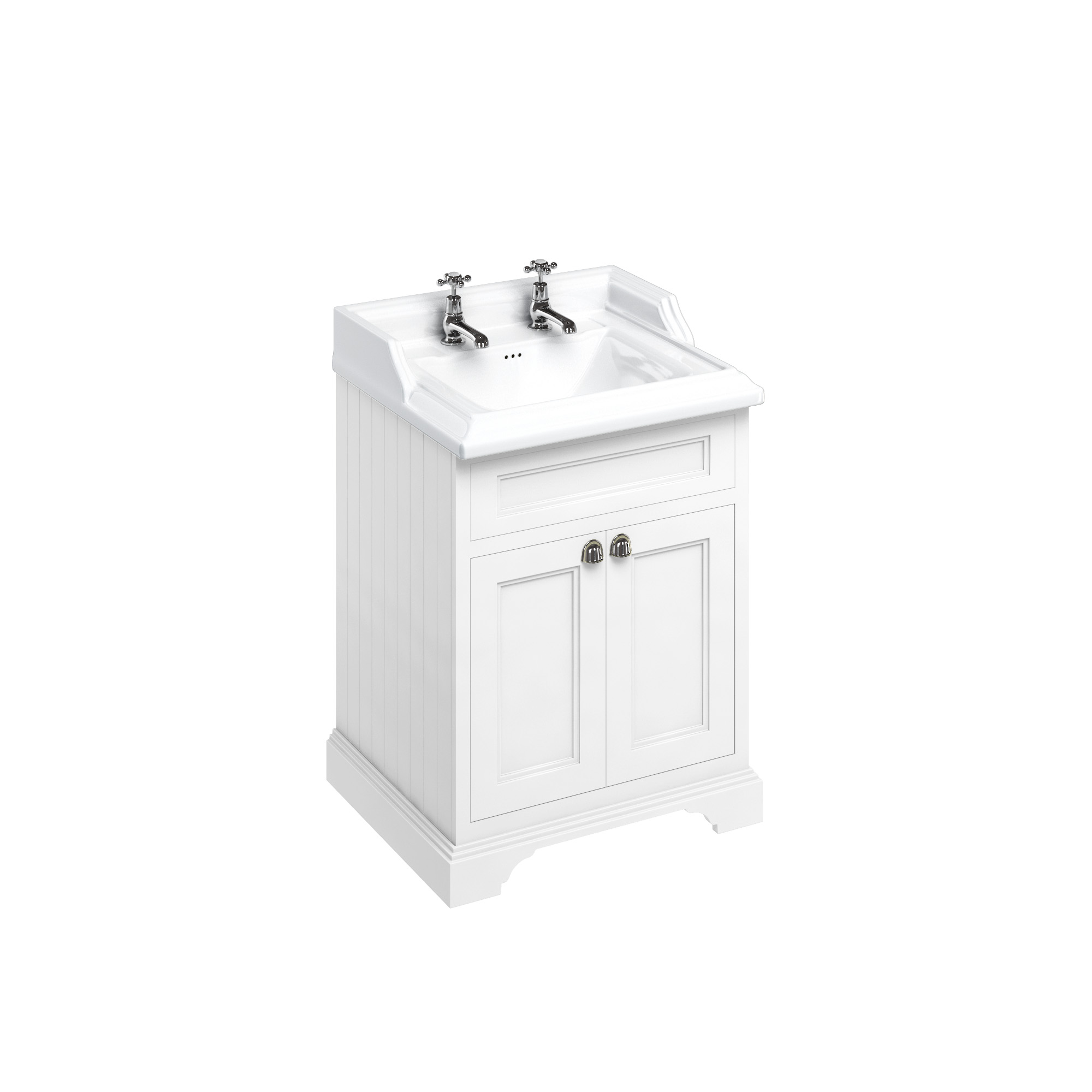

Freestanding 65 Vanity Unit with doors - Dark Olive and Classic basin 2 tap holes Dark Olive Freestanding 65 Vanity Unit with doors - Sand and Classic basin 2 tap holes Sand Freestanding 65 Vanity Unit with doors - Matt White and Classic basin 2 tap holes Matt White

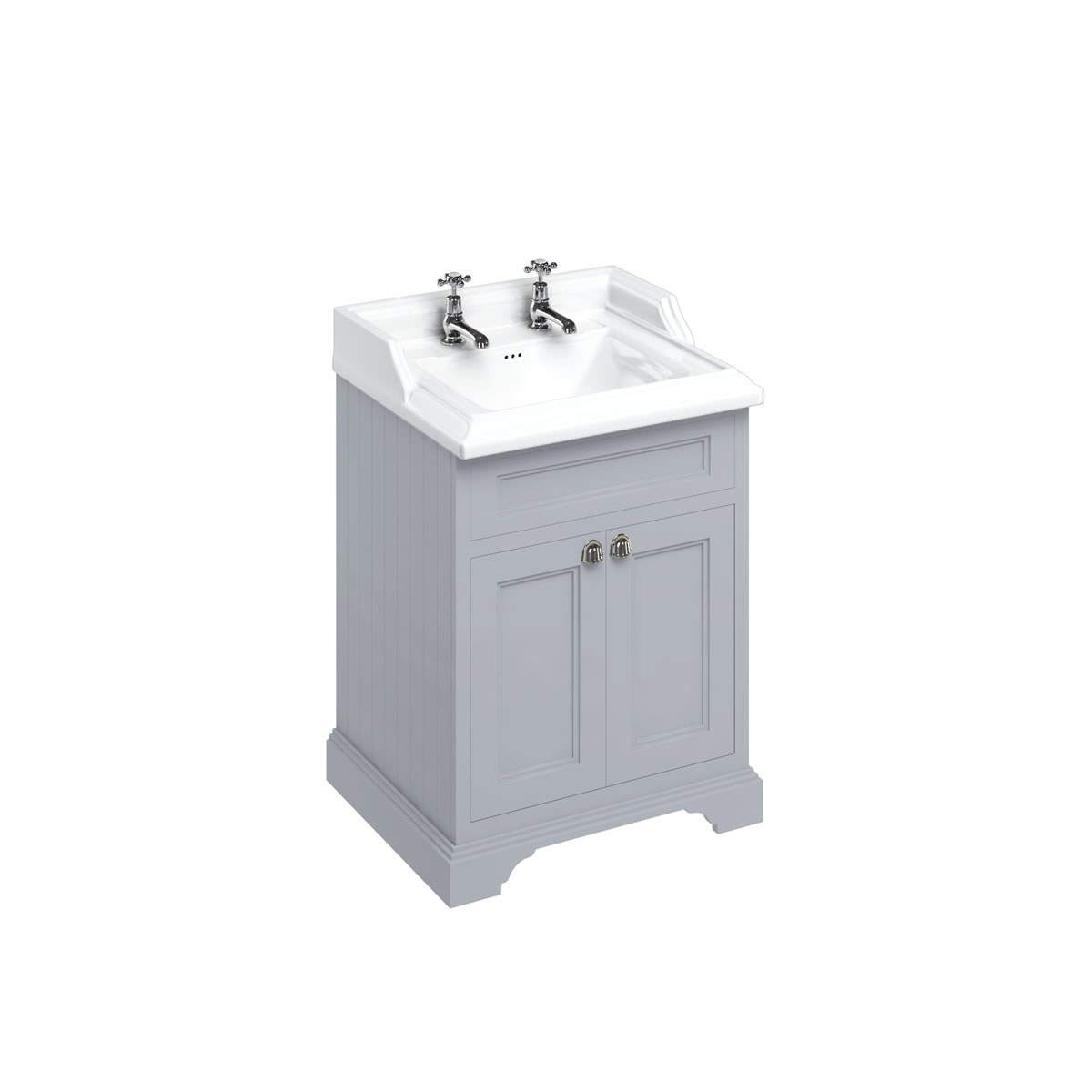

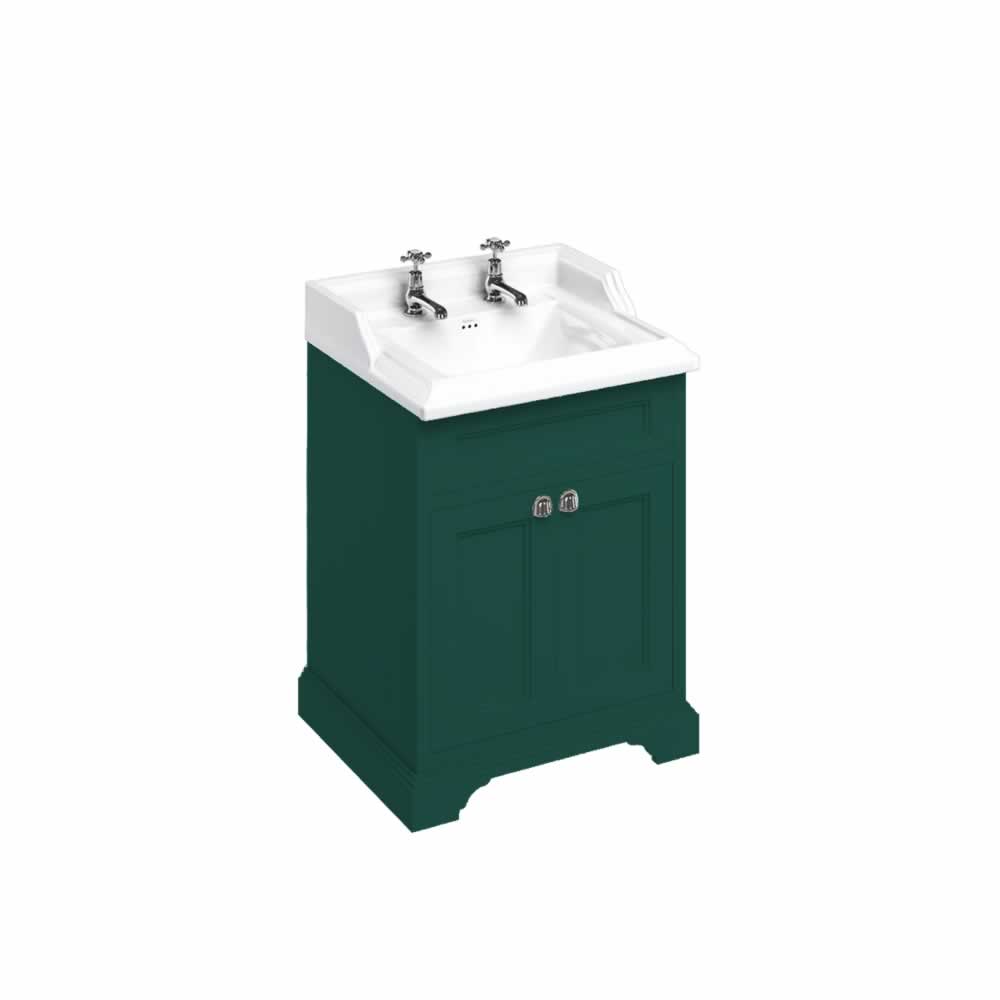

Freestanding 65 Vanity Unit with doors - Classic Grey and Classic basin 2 tap holes Classic Grey Freestanding 65 Vanity Unit with doors - Blue and Classic basin 2 tap holes Blue Freestanding Basin Unit Doors Matt Green Matt Green
Tap hole options

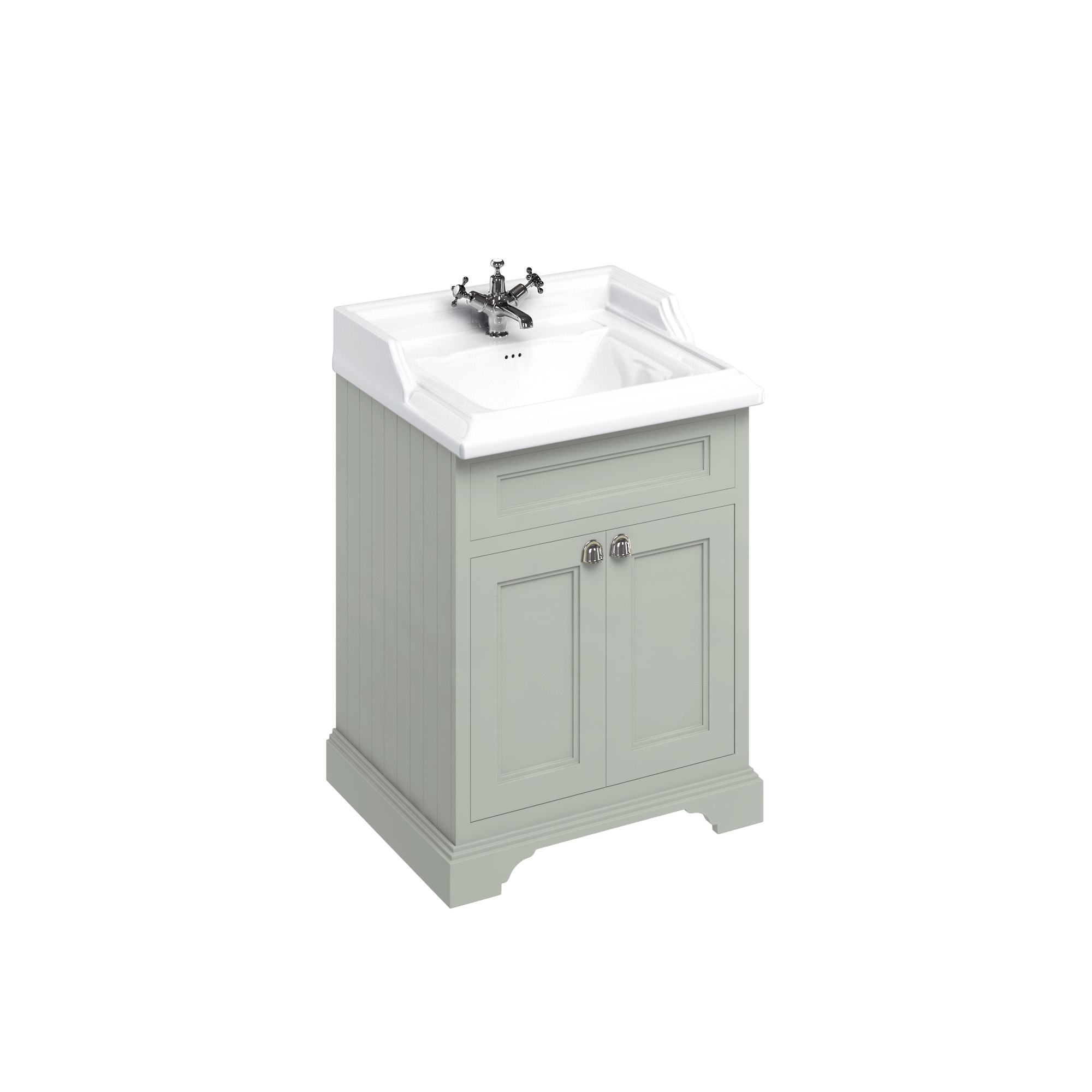

Freestanding 65 Vanity Unit with doors - Dark Olive and Classic basin 1 tap hole 1 tap hole Freestanding 65 Vanity Unit with doors - Dark Olive and Classic basin 2 tap holes 2 tap holes Freestanding 65 Vanity Unit with doors - Dark Olive and Classic basin 3 tap holes 3 tap holes
Alternate Text

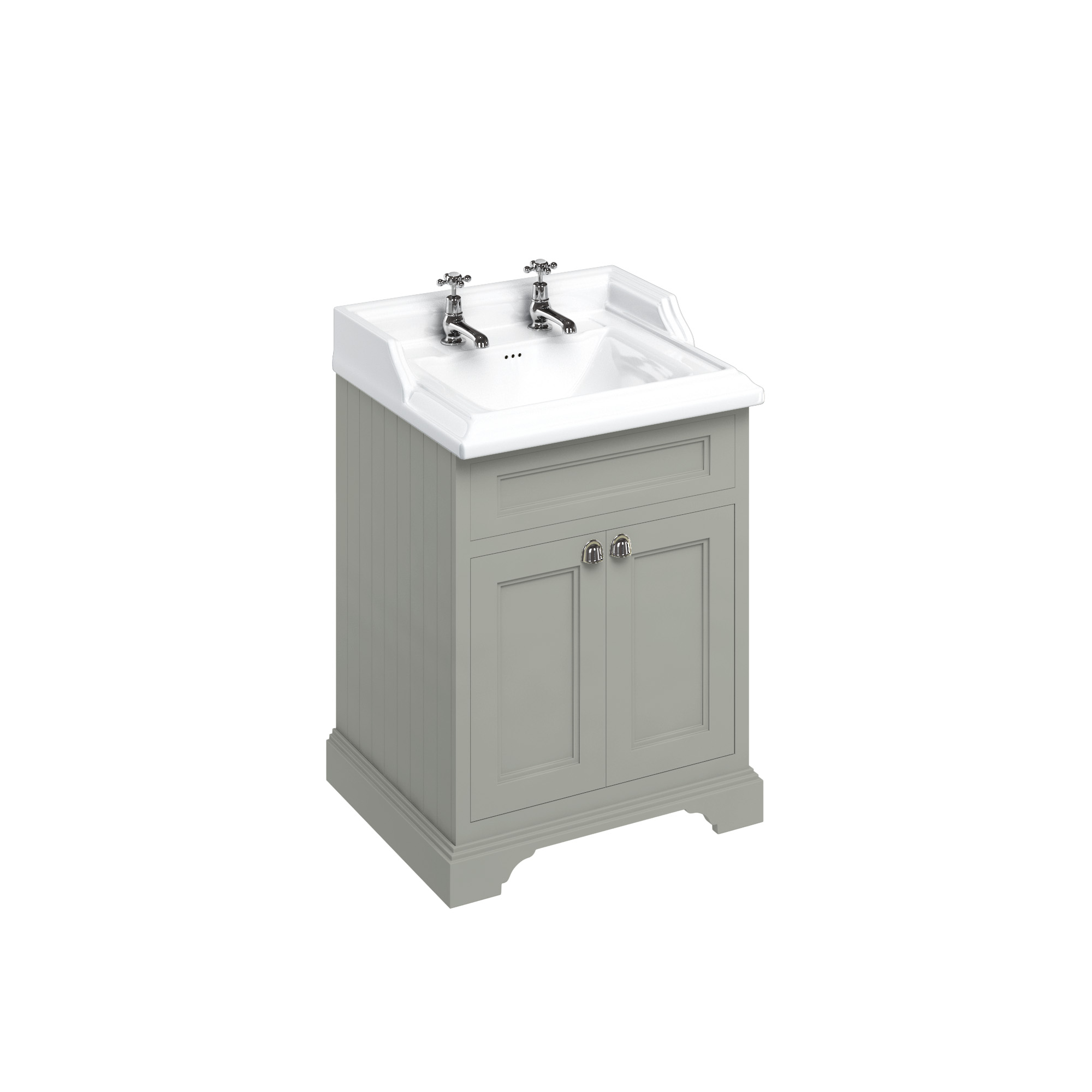

As Shown
B15 2TH Classic 65cm basin two tap holes
FF8O Freestanding Basin Unit with doors
Colour
B15 2TH - basin - Gloss White
FF8O - base unit - Dark Olive
Material
B15 2TH - basin - Fine Fire Clay
FF8O - base unit - Engineered Wood - MDF
Size
B15 2TH - 581 x 654 x 297mm
FF8O - 548 x 666 x 820mm
Nett Weight
B15 2TH - basin - 19.05kg
FF8O - base unit - 31.2kg
Gross Weight Including Packaging
B15 2TH - basin - 22.9kg
FF8O - base unit - 36.5kg
Packed Dimension
B15 2TH - 670 x 597 x 315 = 0.126 m3
FF8O - 730 x 615 x 885 = 0.3973 m3
Tap Hole Options
Available with one (1TH), two (2TH) or three (3TH) tap holes
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 14688:2015
BS EN 31:2011
EN14749:2016
Additional Information
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight.
Doors are soft closing
Please note that when ordering the basin in a 2TH option it will be supplied with a small chain stay hole for the plug and chain
Chrome plated metal handles
Fully assembled
One adjustable glass shelf.
SP653 1x handle, 2x screws, 2x washers for Burlington furniture
SP669 adjustable leg 80mm for FF8, FF9, FC9, FC10, FC1, FC2, FC3, FC4, FC5
SPFF8DP-O flat door paenel for FF8O, FC9O, FC1O, FC2O, FC3O
SP758 plinth for FF8O, FF9O
SP762 rectangular glass shelf for FF8, FC9 (588*358*5mm)
SP949 soft close hinges for FF8, FC1, FC2, FC3, FC9, RIVF580, RIVF650 – one pair
SPFF8TF-O top fascia for FF8O, FC9O
Downloads
  • Instructions - PDF - FF8O (English)
  • Instructions - PDF - FF8O (French)
  • 3D DXF - File - DXF  -  FF8O_B15 2TH (90525.dxf)
  • 3D DWG - File - DWG  -  FF8O_B15 2TH (90525.dwg)
  • 3D IGS - File - IGS  -  FF8O_B15 2TH (90525.igs)
  • 3D RFA BIMM Objects - File - RFA  -  FF8O_B15 2TH (90525.rfa)
  • Product image 1 - jpg

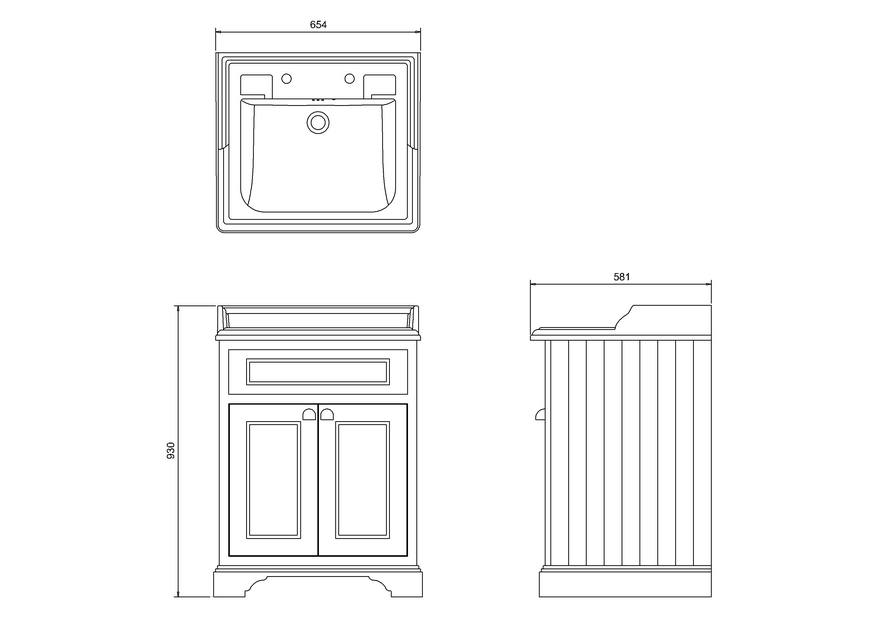

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
