Pivot Door with in line Panel & Side Panel
Product Options
Sizes (click on size to refresh details)
80cm (A), 80cm (C)
|
80cm (A), 90cm (C)
|
90cm (A), 80cm (C)
|
90cm (A), 90cm (C)
|
100cm (A), 80cm (C)
|
|
100cm (A), 90cm (C)
|
120cm (A), 80cm (C)
|
120cm (A), 90cm (C)
|
140cm (A), 80cm (C)
|
140cm (A), 90cm (C)
|
As Shown
| OXPDSPVC0800 Optix 10 Side Panel for Pivot Door with in line panel 800 Brushed stainless steel |
| OXPDVC0900 Optix 10 Pivot Door with in line Panel 900 Brushed stainless steel |
Colour
| OXPDSPVC0800 - side panel - Brushed Stainless Steel |
| OXPDVC0900 - door - Brushed Stainless Steel |
Gross Weight Including Packaging
| OXPDSPVC0800 - side panel - 47kg |
| OXPDVC0900 - door - 60kg |
Packed Dimension
| OXPDSPVC0800 - 80 x 820 x 2090 = 0.1371 m3 |
| OXPDVC0900 - 90 x 580 x 2090 = 0.1091 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
2000mm enclosure height |
|
25mm width adjustment for easy fitting |
|
Flush-fit pivot hinges |
|
Reversible door for left or right hand entry |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
OXPDVC0900 OXPDSPVC0800
(OXPDSC0900 _ OXPDSPSC0800.dwg)
-

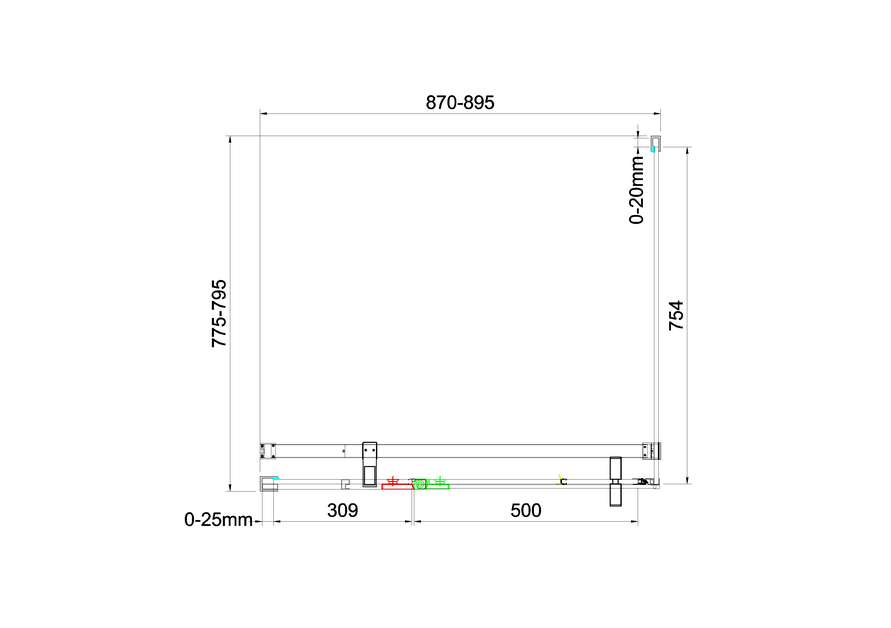

2D Drawing - PDF -
OXPDVC0900 OXPDSPVC0800
(OXPDSC0900 _ OXPDSPSC0800.pdf)
2D Drawing - PDF - OXPDVC0900 OXPDSPVC0800
