Pivot Door with in line Panel & Side Panel
Product Options
Sizes (click on size to refresh details)
80cm (A), 80cm (C)
|
80cm (A), 90cm (C)
|
90cm (A), 80cm (C)
|
90cm (A), 90cm (C)
|
100cm (A), 80cm (C)
|
|
100cm (A), 90cm (C)
|
120cm (A), 80cm (C)
|
120cm (A), 90cm (C)
|
140cm (A), 80cm (C)
|
140cm (A), 90cm (C)
|
As Shown
| OXPDSPVC0800 Optix 10 Side Panel for Pivot Door with in line panel 800 Brushed stainless steel |
| OXPDVC1000A Optix 10 Pivot Door with in line Panel 1000 Brushed stainless steel |
| OXPDVC1000B Optix 10 Pivot Door with in line Panel 1000 Moving Brushed stainless steel |
Colour
| OXPDSPVC0800 - side panel - Brushed Stainless Steel |
| OXPDVC1000A - door - Brushed Stainless Steel |
| OXPDVC1000B - door - Brushed Stainless Steel |
Material
| OXPDSPVC0800 - side panel - Stainless Steel |
| OXPDVC1000A - door - Stainless Steel |
| OXPDVC1000B - door - Stainless Steel |
Size
| OXPDSPVC0800 - 10 x 800 x 2000mm |
| OXPDVC1000A - 10 x 1000 x 2000mm |
| OXPDVC1000B - 10 x 1000 x 2000mm |
Gross Weight Including Packaging
| OXPDSPVC0800 - side panel - 47kg |
| OXPDVC1000A - door - 35kg |
| OXPDVC1000B - door - 34kg |
Packed Dimension
| OXPDSPVC0800 - 80 x 820 x 2090 = 0.1371 m3 |
| OXPDVC1000A - 90 x 370 x 2090 = 0.0696 m3 |
| OXPDVC1000B - 90 x 680 x 2060 = 0.1261 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
2000mm enclosure height |
|
25mm width adjustment for easy fitting |
|
Flush-fit pivot hinges |
|
Reversible door for left or right hand entry |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
OXPDVC1000 OXPDSPVC0800
(OXPDSC1000 _ OXPDSPSC0800.dwg)
-

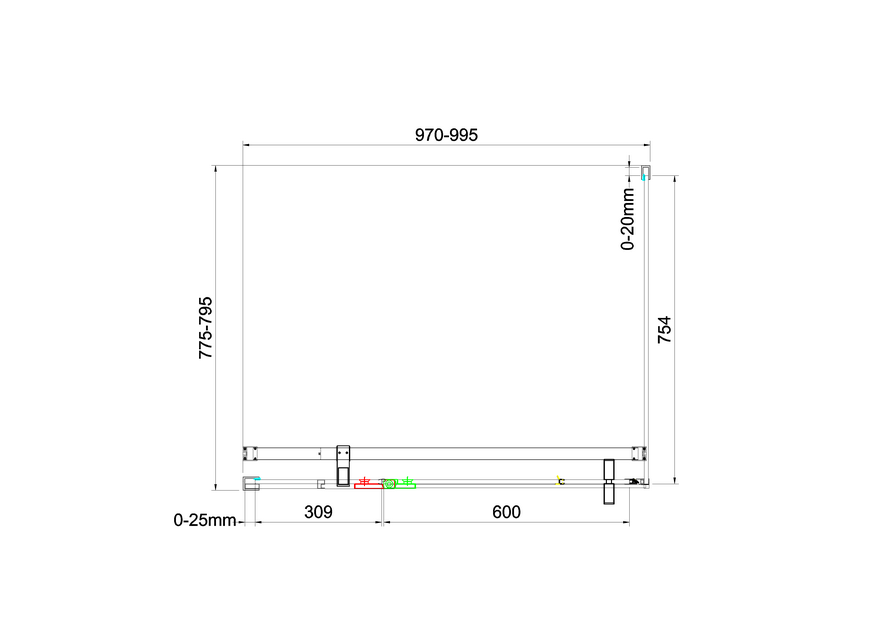

2D Drawing - PDF -
OXPDVC1000 OXPDSPVC0800
(OXPDSC1000 _ OXPDSPSC0800.pdf)
2D Drawing - PDF - OXPDVC1000 OXPDSPVC0800
