Soft Close Sliding Door & Side panel
Product Options
Sizes (click on size to refresh details)
120cm (A), 76cm (B)
|
120cm (A), 80cm (B)
|
120cm (A), 90cm (B)
|
|
140cm (A), 76cm (B)
|
140cm (A), 80cm (B)
|
140cm (A), 90cm (B)
|
|
150cm (A), 76cm (B)
|
150cm (A), 80cm (B)
|
150cm (A), 90cm (B)
|
|
170cm (A), 76cm (B)
|
170cm (A), 80cm (B)
|
170cm (A), 90cm (B)
|
As Shown
| OXSLSPVC0760 Optix 10 Side panel 760 for Soft Close Slider Brushed stainless steel |
| OXSLVC1400A Optix 10 Soft Close SlidIng door 1400 Brushed stainless steel |
| OXSLVC1400B Optix 10 Soft Close SlidIng door 1400 Moving Brushed stainless steel |
Colour
| OXSLSPVC0760 - side panel - Brushed stainless steel |
| OXSLVC1400A - door - Brushed Stainless Steel |
| OXSLVC1400B - door - Brushed Stainless Steel |
Material
| OXSLSPVC0760 - side panel - Stainless steel profile with safety glass |
| OXSLVC1400A - door - Stainless Steel |
| OXSLVC1400B - door - Stainless Steel |
Size
| OXSLSPVC0760 - 10 x 760 x 2000mm |
| OXSLVC1400A - 10 x 1400 x 2000mm |
| OXSLVC1400B - 10 x 1400 x 2000mm |
Gross Weight Including Packaging
| OXSLSPVC0760 - side panel - 40kg |
| OXSLVC1400A - door - 50kg |
| OXSLVC1400B - door - 43kg |
Packed Dimension
| OXSLSPVC0760 - 80 x 770 x 2100 = 0.1294 m3 |
| OXSLVC1400A - 90 x 690 x 2090 = 0.1298 m3 |
| OXSLVC1400B - 60 x 790 x 2050 = 0.0972 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Integrated self cleaning rollers |
|
Reversible door for left or right hand entry |
|
Smooth soft close door |
|
Suitable for tray or tiled floors (wetroom) |
|
2000mm enclosure height |
|
30mm width adjustment for easy fitting |
Downloads
-
2D CAD-File - DWG -
OXSLVC1400 OXSLSPVC0760
(OXSLSC1400 _ OXSLSPSC0760.dwg)
-

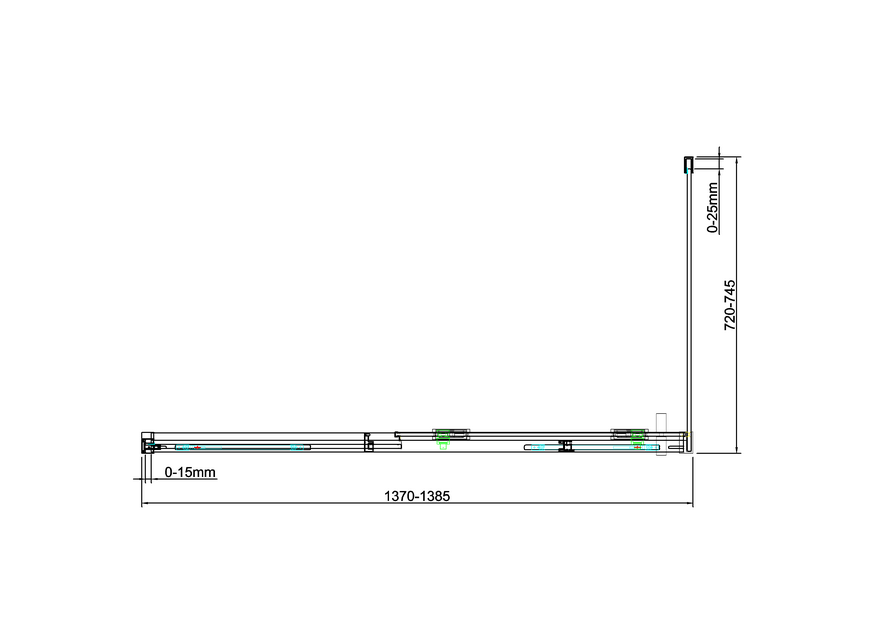

2D Drawing - PDF -
OXSLVC1400 OXSLSPVC0760
(OXSLSC1400 _ OXSLSPSC0760.pdf)
2D Drawing - PDF - OXSLVC1400 OXSLSPVC0760
