Soft Close Sliding Door & Side panel
Product Options
Sizes (click on size to refresh details)
120cm (A), 76cm (B)
|
120cm (A), 80cm (B)
|
120cm (A), 90cm (B)
|
|
140cm (A), 76cm (B)
|
140cm (A), 80cm (B)
|
140cm (A), 90cm (B)
|
|
150cm (A), 76cm (B)
|
150cm (A), 80cm (B)
|
150cm (A), 90cm (B)
|
|
170cm (A), 76cm (B)
|
170cm (A), 80cm (B)
|
170cm (A), 90cm (B)
|
As Shown
| OXSLSPVC0900 Optix 10 Side panel 900 for Soft Close Slider Brushed stainless steel |
| OXSLVC1700A Optix 10 Soft Close Sliding Door 1700 Brushed stainless steel |
| OXSLVC1700B Optix 10 Soft Close Sliding Door 1700 Moving Door Brushed stainless steel |
Colour
| OXSLSPVC0900 - side panel - Brushed Stainless Steel |
| OXSLVC1700A - door - Brushed Stainless Steel |
| OXSLVC1700B - door - Brushed Stainless Steel |
Material
| OXSLSPVC0900 - side panel - Stainless Steel |
| OXSLVC1700A - door - Stainless Steel |
| OXSLVC1700B - door - Stainless Steel |
Size
| OXSLSPVC0900 - 10 x 900 x 2000mm |
| OXSLVC1700A - 10 x 1700 x 2000mm |
| OXSLVC1700B - 10 x 1700 x 2000mm |
Gross Weight Including Packaging
| OXSLSPVC0900 - side panel - 50kg |
| OXSLVC1700A - door - 62kg |
| OXSLVC1700B - door - 46kg |
Packed Dimension
| OXSLSPVC0900 - 80 x 915 x 2090 = 0.153 m3 |
| OXSLVC1700A - 90 x 940 x 2090 = 0.1768 m3 |
| OXSLVC1700B - 60 x 840 x 2050 = 0.1033 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
2000mm enclosure height |
|
30mm width adjustment for easy fitting |
|
Integrated self cleaning rollers |
|
Reversible door for left or right hand entry |
|
Smooth soft close door |
|
Suitable for tray or tiled floors (wetroom) |
Downloads
-
2D CAD-File - DWG -
OXSLVC1700 OXSLSPVC0900
(OXSLSC1700 _ OXSLSPSC0900.dwg)
-

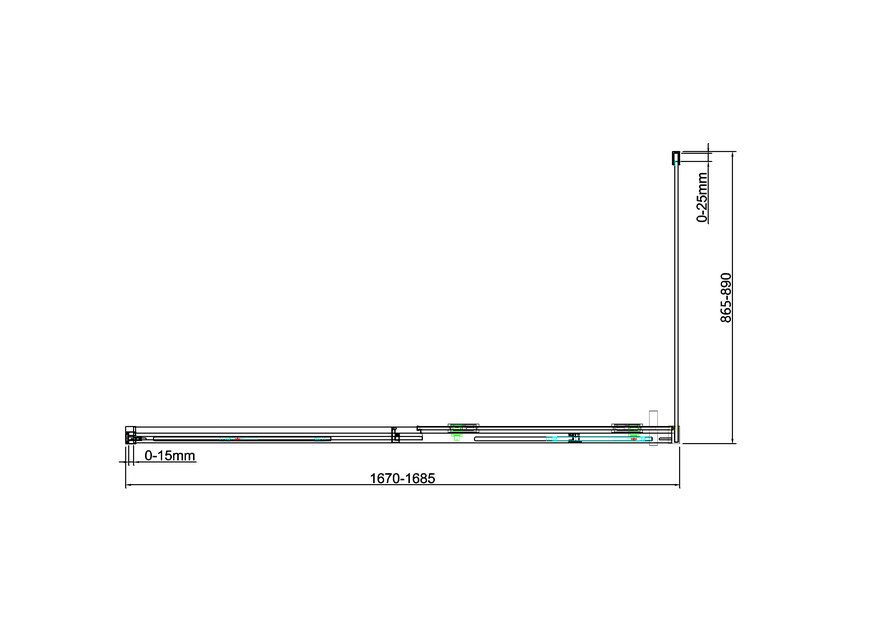

2D Drawing - PDF -
OXSLVC1700 OXSLSPVC0900
(OXSLSC1700 _ OXSLSPSC0900.pdf)
2D Drawing - PDF - OXSLVC1700 OXSLSPVC0900
