Trent Thermostatic dual function brass valve
Product Options
shower head options
Finish Options
Indicies & lever finish
6 inch
|
9 inch
|
12 inch
|
|
Chrome
|
White
|
Medici
|
Black
|
As Shown
| TF2S BLA Trent Thermostatic Two Outlet Concealed Divertor Shower Valve , Fixed Shower Arm, Handset & Holder with Hose (excluding Shower Head) - chrome & black |
| V17 9 inch shower rose |
| TF2S BLA_V17 - Combined product code |
Nett Weight
| TF2S BLA - valve - 3.81kg |
| V17 - shower rose - 0.56kg |
Gross Weight Including Packaging
| TF2S BLA - valve - 5.49kg |
| V17 - shower rose - 0.87kg |
Packed Dimension
| TF2S BLA - 490 x 420 x 130 = 0.0268 m3 |
| V17 - 260 x 240 x 100 = 0.0062 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Traditional brass faceplate, Claremont handle with ceramic lever. |
|
Wall outlet, and 1500mm shower hose |
|
Adjustable wall bracket, and handset with ceramic handle |
|
390mm adjustable fixed shower arm |
|

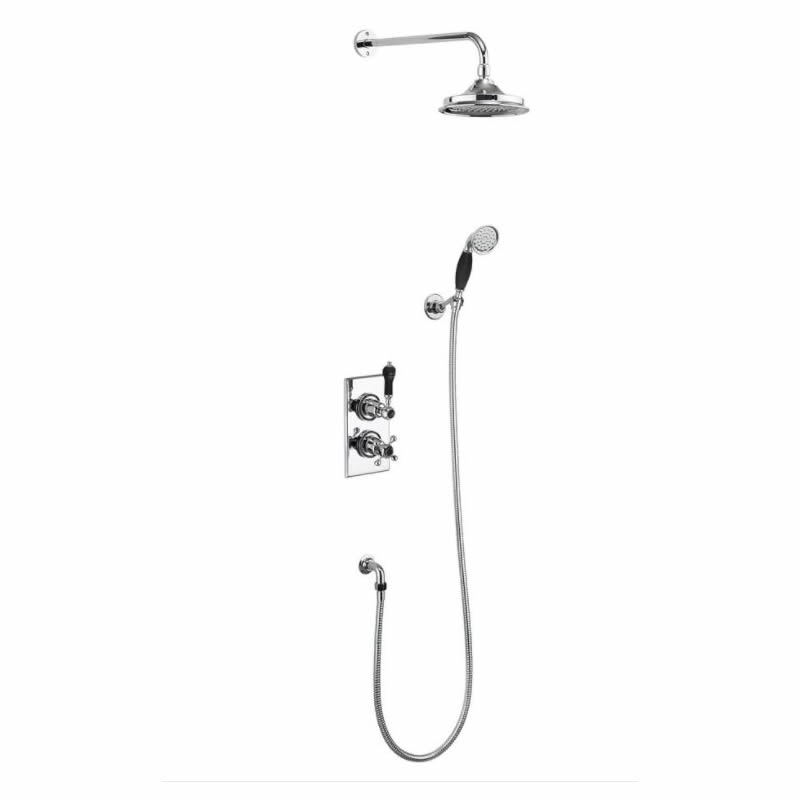

Image shown is with 6" Airburst shower head. (as shown on image) |
|
The shower head has anti-limescale silicon nipples. |
|
Large bore shower hose (11mm) |
|
Hot & cold inlet 3/4 female thread |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 4.17 | 4.8 | 8.07 | 12.38 | 15.28 | n/a | n/a |
| 6 inch rose | 3.85 | 4.45 | 7.25 | 10.85 | 12.3 | n/a | n/a |
| 9 inch rose | 3.74 | 4.17 | 5.27 | 8.15 | 11.32 | n/a | n/a |
| Handset | 3.9 | 5.54 | 8.23 | 12.46 | 15.35 | n/a | n/a |
| V26 | burlington Shower hose 1500mm |
| SP700 | check valve of all finishes products of TF2S, V34, V36, TF1S, TF3S, SF1S, SF3S |
| SP1676 | diverter retaining nut for all finishes products of HOX.005V, TF2S |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1692 | fixing screw sets (including flat washer and spring washer) for all finishes products of Avon valve, Trent valve, Severn valve |
| SP751 | lever base for AF1S, ARC74 CHR, TF3S, VF3S, TF3S BLA, ARCV25 CHR, SF3S, AF3S, AF3S BLA, TF2S, TF1S, VF1S, TF1H, ARC64 CHR, ARC73 CHR, TF1S BLA, TF1H BLA, TF2S BLA, SF1S |
| SP959 | retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64 |
| SP1676_1 | updated Diverter retaining nut for all finishes products of TF2S, HOX005V, GUSHOWERPACKSQ3, GUSHOWERPACKSQ4, HOX1500R |
Downloads
- Instructions - PDF - TF2S BLA (English)
- Instructions - PDF - V17 (English)
- Instructions - PDF - TF2S BLA (French)
-
2D CAD-File - DWG -
TF2S BLA_V17
(TF2S-V16_LD.dwg)
-
2D Drawing - PDF -
TF2S BLA_V17
(TF2S-V16_LD.pdf)
2D Drawing - PDF - TF2S BLA_V17
-
3D RFA BIMM Objects - File - RFA
-
TF2S BLA_V17
(TF2S-V17.rfa)
- 3D DWG - File - DWG - V17 (V17_9_showerhead.dwg)
- 3D DXF - File - DXF - V17 (V17_9_showerhead.dxf)
- 3D IGS - File - IGS - V17 (V17_9_showerhead.igs)
- 3D RFA BIMM Objects - File - RFA BIMM Objects - V17 (V17_9_showerhead.rfa)
- 3D DWG - File - DWG - TF2S BLA (TF2S.dwg)
- 3D DXF - File - DXF - TF2S BLA (TF2S.dxf)
- 3D IGS - File - IGS - TF2S BLA (TF2S.igs)
