Trent Thermostatic dual function brass valve
asaq2.Model.Web_product_new?.web_name
Product Options
shower head options
Trent Thermostatic Two Outlet Concealed Divertor Shower Valve , Fixed Shower Arm, Handset & Holder with Hose with 6 inch rose 6 inch 9_shower_head_wb.jpg 9 inch Trent Thermostatic Two Outlet Concealed Divertor Shower Valve , Fixed Shower Arm, Handset & Holder with Hose with 12 inch rose 12 inch
Finish Options

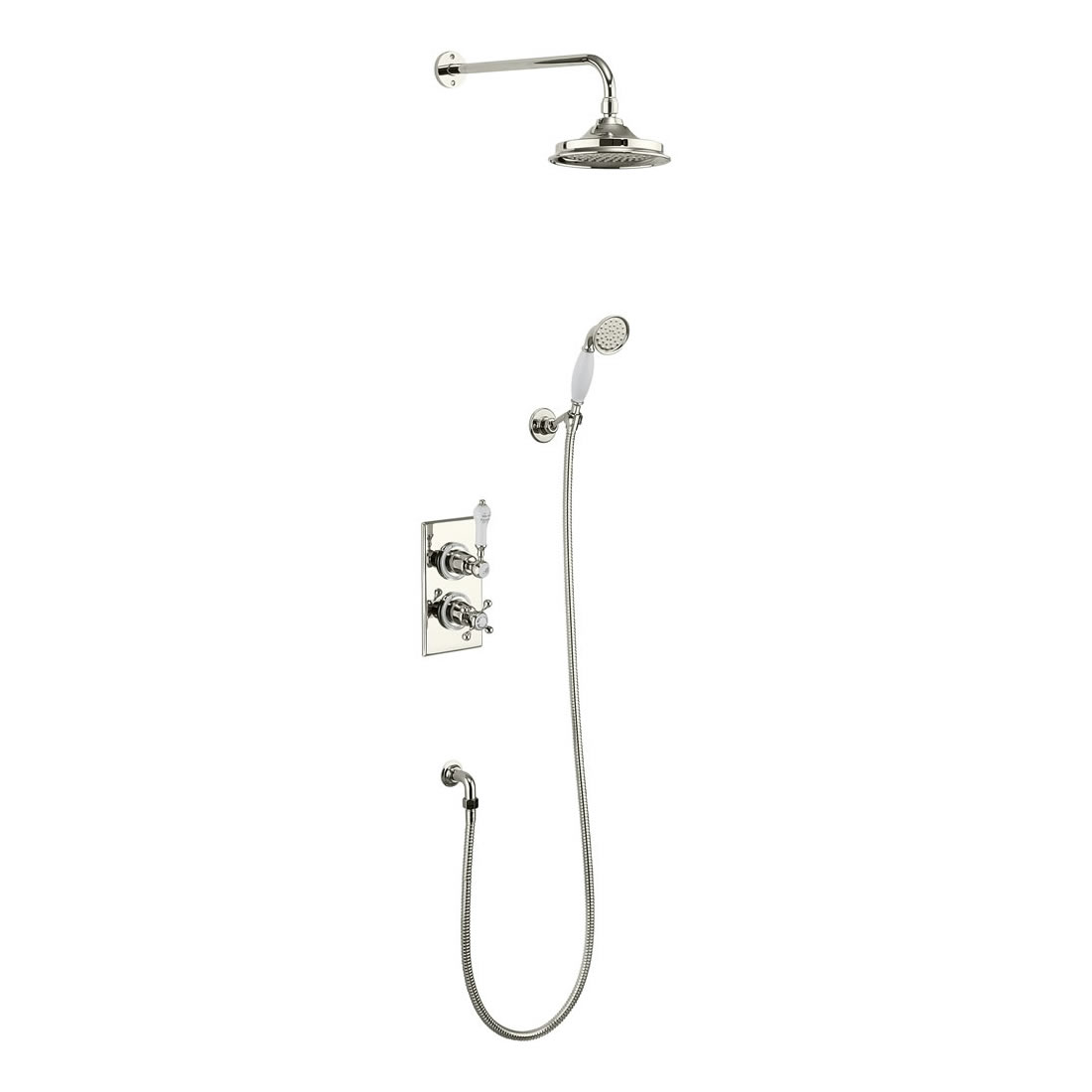

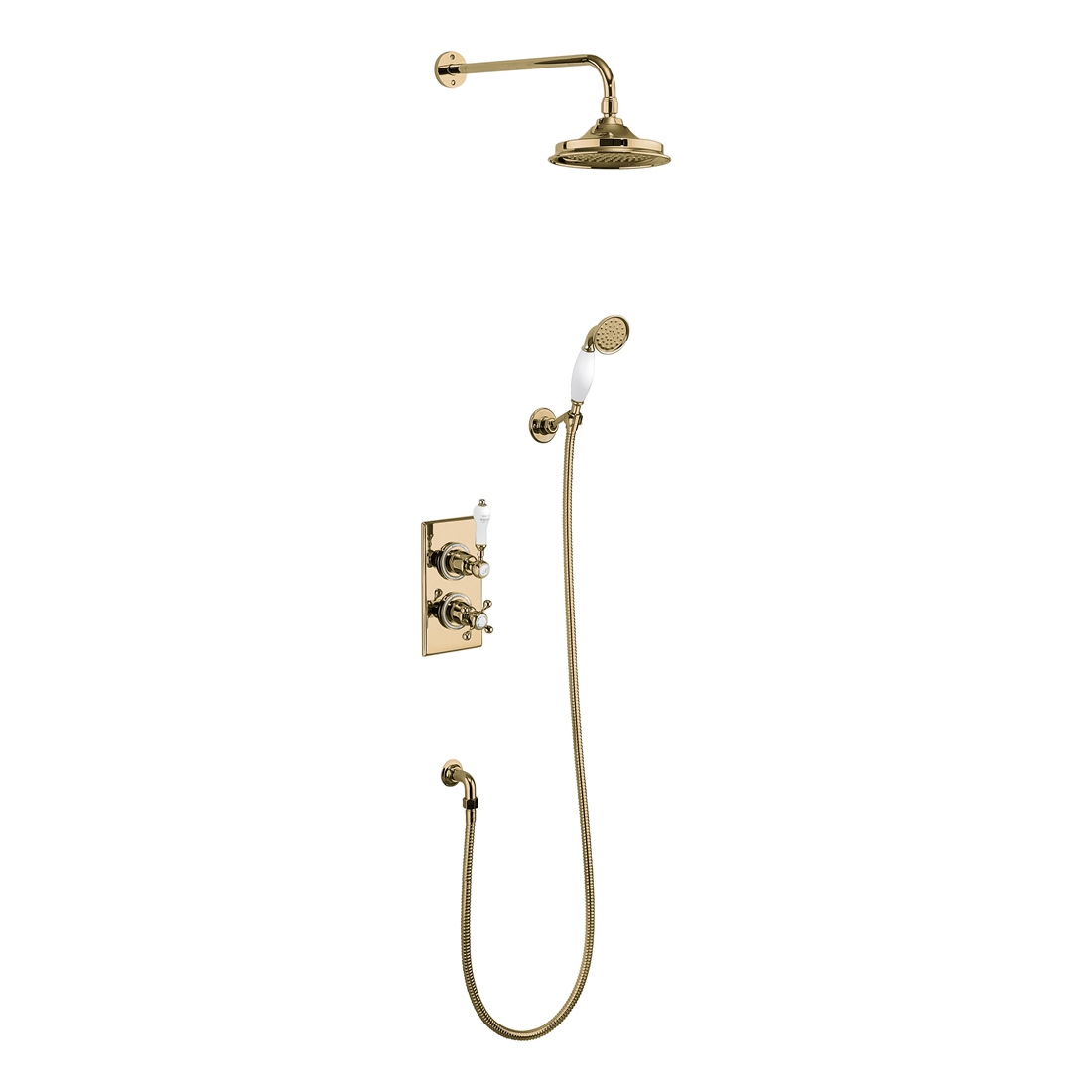

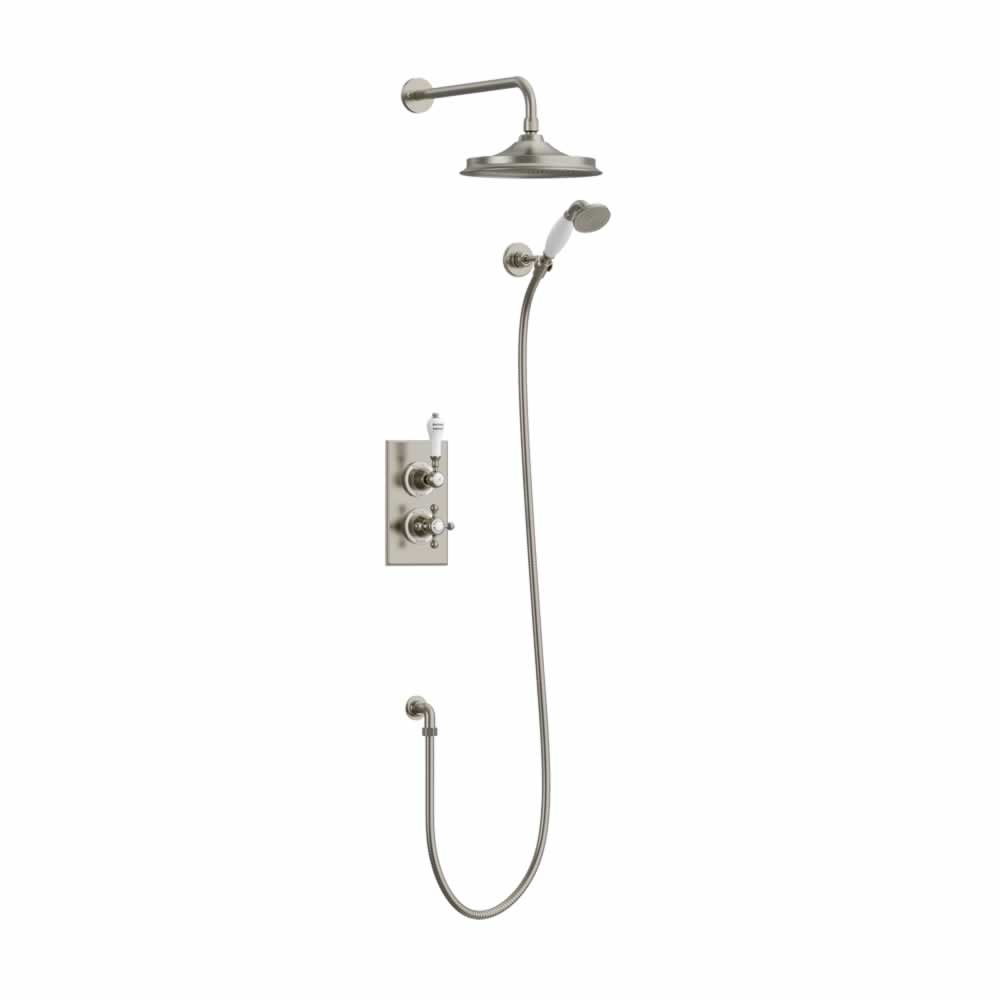

Trent Thermostatic Two Outlet Concealed Divertor Shower Valve , Fixed Shower Arm, Handset & Holder with Hose with 9 inch rose Chrome Trent Thermostatic Two Outlet Concealed Divertor Shower Valve , Fixed Shower Arm, Handset & Holder with Hose with 9 inch rose - GOLD Gold Trent Thermostatic Two Outlet Concealed Divertor Shower Valve , Fixed Shower Arm, Handset & Holder with Hose with 9 inch rose - NICKEL Nickel Trent Thermostatic Two Outlet Concealed Divertor Shower Valve , Fixed Shower Arm, Handset & Holder with Hose with 9 inch rose brushed nickel Brushed Nickel
Indicies & lever finish
Trent Thermostatic Two Outlet Concealed Divertor Shower Valve , Fixed Shower Arm, Handset & Holder with Hose with 9 inch rose White Trent Medici Thermostatic Two Outlet Concealed Divertor Shower Valve , Fixed Shower Arm, Handset & Holder with Hose with 9 inch rose Medici Trent Thermostatic Two Outlet Concealed Divertor Shower Valve , Fixed Shower Arm, Handset & Holder with Hose with 9 inch rose - Black Black
Alternate Text
As Shown
TF2S Trent Thermostatic Two Outlet Concealed Divertor Shower Valve , Fixed Shower Arm, Handset & Holder with Hose
V17 9 inch shower rose
TF2S+V17  -  Combined product code
Colour
TF2S - valve - Polished Chrome
V17 - shower rose - Polished Chrome
Material
TF2S - valve - Brass
V17 - shower rose - ABS
Size
TF2S - 163 x 120 x 263mm
V17 - 236 x 236 x 88mm
Nett Weight
TF2S - valve - 3.81kg
V17 - shower rose - 0.56kg
Gross Weight Including Packaging
TF2S - valve - 5.49kg
V17 - shower rose - 0.87kg
Packed Dimension
TF2S - 490 x 420 x 130 = 0.0268 m3
V17 - 260 x 240 x 100 = 0.0062 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
Additional Information
Traditional brass faceplate, Claremont handle with ceramic lever.
Wall outlet, and 1500mm shower hose
Adjustable wall bracket, and handset with ceramic handle
390mm adjustable fixed shower arm
Image shown is with 6" Airburst shower head. (as shown on image)
The shower head has anti-limescale silicon nipples.
Large bore shower hose (11mm)
Hot & cold inlet 3/4 female thread
Compatible Products
V33 -    Slide rail
V2 -    Anglesey Valve Handle (single)
V3 -    Birkenhead Valve Handle (single)
V23 -    Soap basket
V24 -    Cradle
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
12 inch rose 4.17  4.8  8.07  12.38  15.28  n/a  n/a
6 inch rose 3.85  4.45  7.25  10.85  12.3  n/a  n/a
9 inch rose 3.74  4.17  5.27  8.15  11.32  n/a  n/a
Handset 3.9  5.54  8.23  12.46  15.35  n/a  n/a
ACSH1 1.5m Shower hose with ACS approval for T8, T8-QT, TF2S, TF3S, AF3S, T2DB
V29 burlington Ceramic telephone handset
V26 burlington Shower hose 1500mm
SP723 cartridge cap for thermo cartridge & diverter cartridge for product TF1H, TF1H BLA, TF1S, TF1S BLA, TF2S, TF2S BLA, TF3S, TF3S BLA, VF1S, VF3S - Chrome finish
SP163 ceramic B indices with Chrome for V34 and V36
SP1209 ceramic handle for Burlington telephone handset
SP52 ceramic part of lever for all finishes products of Burlington showering products (plain version, without any texts)
SP700 check valve of all finishes products of TF2S, V34, V36, TF1S, TF3S, SF1S, SF3S
SP873 chrome bevel and threaded part of Burlington & Arcade valve handles
V1 claremont valve handle 1 (single)
SP596 claremont valve handle for all valves, (except Stour)
SP1676 diverter retaining nut for all finishes products of HOX.005V, TF2S
SP608 face plate for TF1S, TF1H, TF2S
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1692 fixing screw sets (including flat washer and spring washer) for all finishes products of Avon valve, Trent valve, Severn valve
SP599 grub screw (M4x4)
SP842 inlet filter for all finishes products of V50, V51, V52, TF1S, TF1H, TF2S, TF3S, VF1S, VF3S, ARC64
SP751 lever base for AF1S, ARC74 CHR, TF3S, VF3S, TF3S BLA, ARCV25 CHR, SF3S, AF3S, AF3S BLA, TF2S, TF1S, VF1S, TF1H, ARC64 CHR, ARC73 CHR, TF1S BLA, TF1H BLA, TF2S BLA, SF1S
SP584 mingshi F4 flow control cartridge
V30 outlet elbow 1, 2
SP959 retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64
SP1477 retaining ring for all finishes products of TF3S, TF2S, TF1S, TF1H, VF1S, VF3S, SF1S, SF3S
SP815 retaining sleeve of thermostatic cartridge for product V50, V51, V52, TF1S, TF1H, TF2S, TF3C, VF1S, VF3S, SF1S, SF3S, ARC64 CHR, ARC73 CHR
V18 shower hook (for wall mounting of telephone shower head)
SP595 top lever (including thread) for TF2S, SHOWER, HANDSET
SP1676_1 updated Diverter retaining nut for all finishes products of TF2S, HOX005V, GUSHOWERPACKSQ3, GUSHOWERPACKSQ4, HOX1500R
SP314 VQT1 temperature control cartridge
Downloads
  • Instructions - PDF - TF2S (English)
  • Instructions - PDF - V17 (English)
  • Instructions - PDF - TF2S (French)
  • 3D RFA BIMM Objects - File - RFA  -  TF2S+V17 (TF2S-V17.rfa)
  • 3D DWG - File - DWG - TF2S (TF2S.dwg)
  • 3D DXF - File - DXF - TF2S (TF2S.dxf)
  • 3D IGS - File - IGS - TF2S (TF2S.igs)
  • 3D DWG - File - DWG - V17 (V17_9_showerhead.dwg)
  • 3D DXF - File - DXF - V17 (V17_9_showerhead.dxf)
  • 3D IGS - File - IGS - V17 (V17_9_showerhead.igs)
  • 3D RFA BIMM Objects - File - RFA BIMM Objects - V17 (V17_9_showerhead.rfa)
  • Lifestyle image 1 - tiff pending.
  • Product image 1 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
