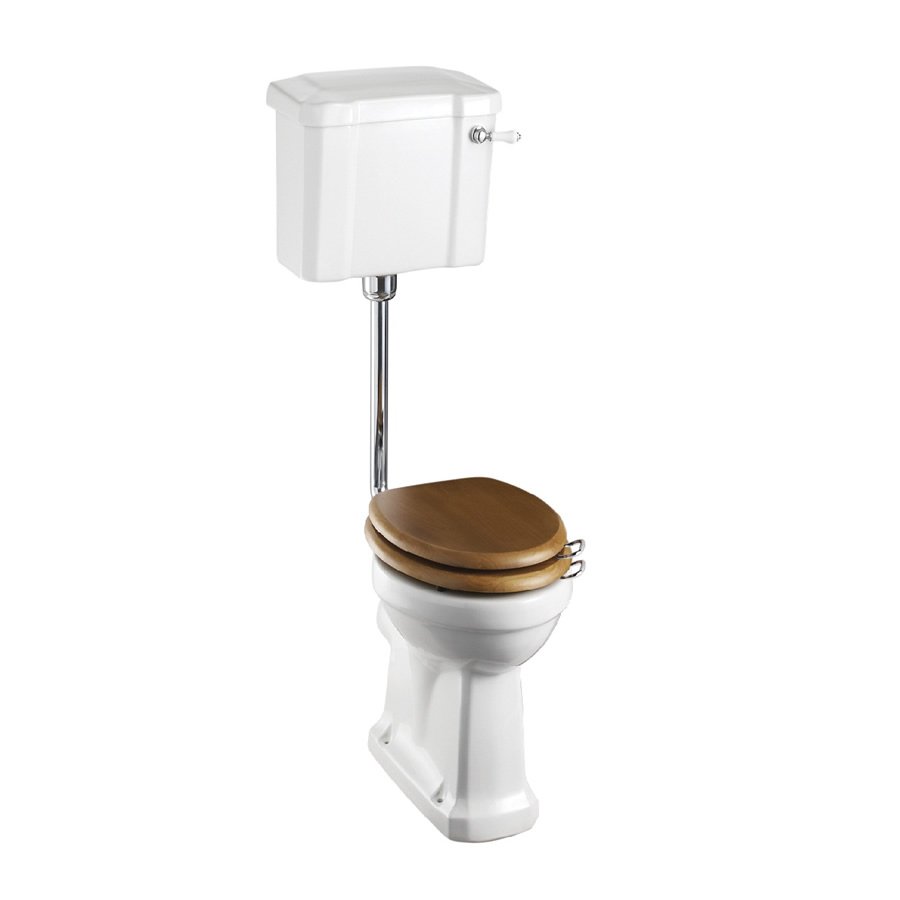

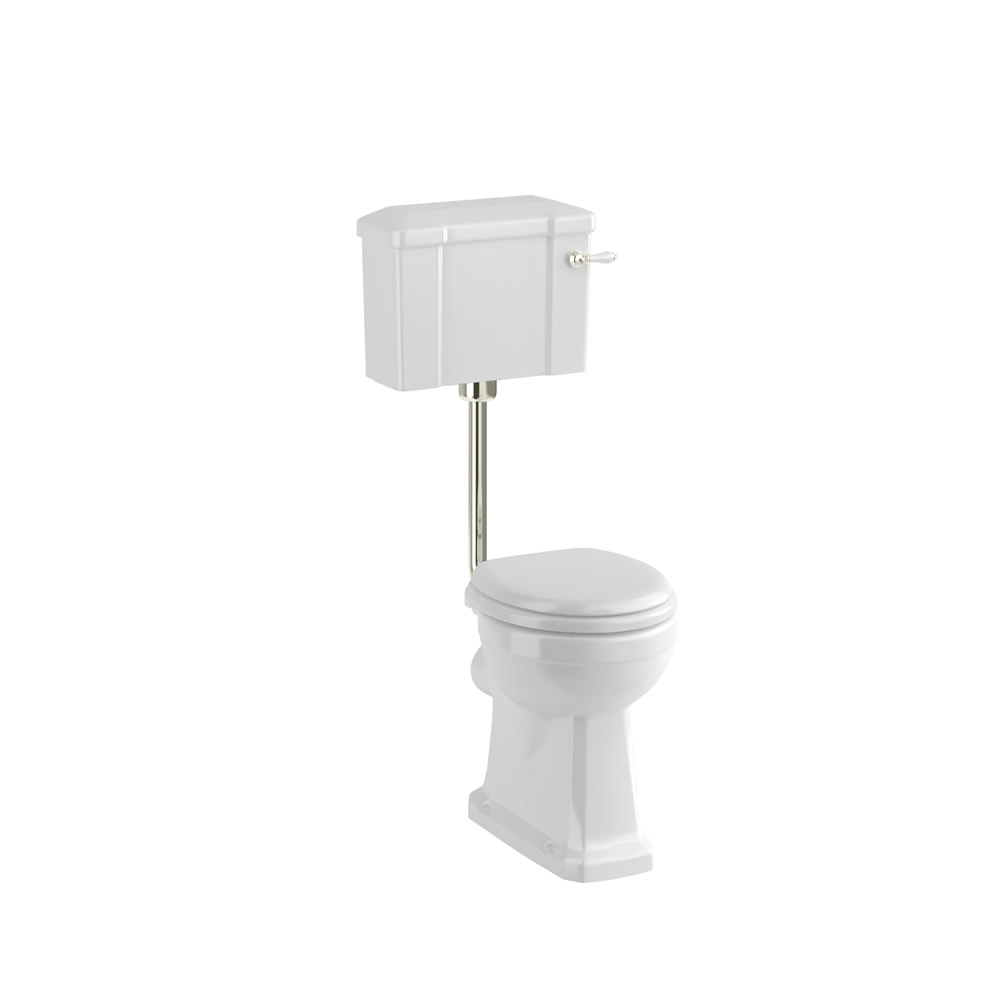

Standard Low Level WC

Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.

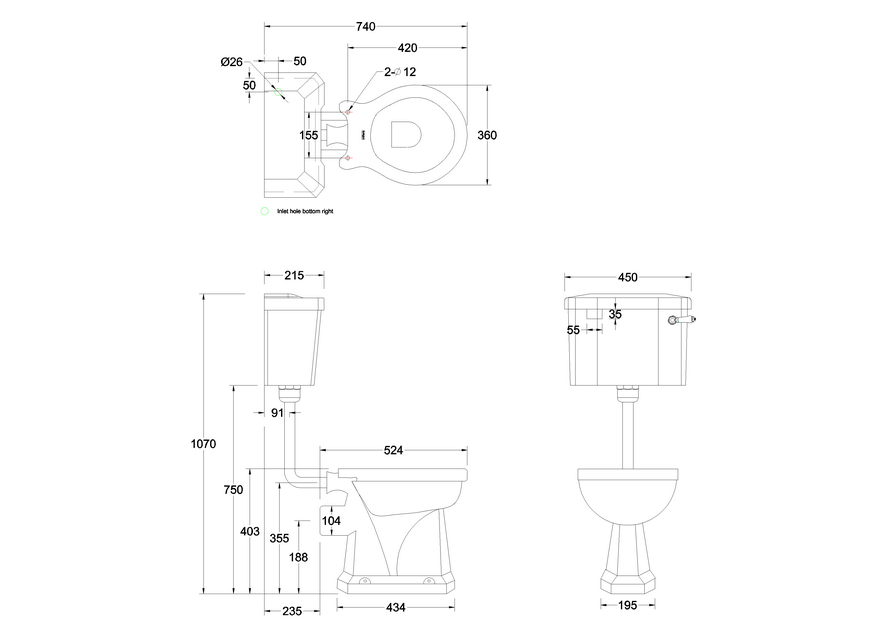

The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,075mm to the top of the cistern, minimum height is 900mm.

Water Inlet valve hole is located on the base of cistern tank on the right hand side.

Bottom inlet valve (SP5). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.

Dual flush cistern fittings with ceramic lever on the right.

Press lever down for 6 litre flush and up for 3 litre flush.

P trap standard height pan - height from floor to pan rim is 40cm.

Recommended to be used with cistern tank isolation valve W25.

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.

Regal Height pan ( floor to pan rim height 48cm ) available : P16.

Cistern can be used with optional decorative Ornate Brackets T32 CHR.

Low level wc must be used with standard Burlington toilet seats.

Supplied with floor fixings.

SP390 GOLD is the low level cistern lever, SP387 is the floor fixing cap and SP813 is the soft close seat hinge for GOLD combination.

Spare parts

SP12	44cm Cistern Lid for C3 & C4
SP511	back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021	bottom sealing washer of flush valve for product C1, C3, C3, C4
SP509	buffers for the seat ring & lid for S11, S12, S16, S17
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP5	cistern fittings for C3 (with small metal spacer)
SP84	cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP9	cistern Push Button
SP192	hinge fixings for S11, S12, S16, S17 seats
SP504_2	inlet valve for Burlington close coupled cisterns
SP508	kit for close couple cistern
SP507	kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP17	screw fixing pack for pan and bidet
SP387	WC floor fixing plastic caps - GOLD
SP864	white buffers for the seat ring & lid for product S45, ARCS45 NKL, S46, RIV.025, S101
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
