Standard Low Level WC
asaq2.Model.Web_product_new?.web_name
Product Options
WC options
Standard low level WC with 520 lever cistern with lever flush 52cm wide cistern C1 Standard low level WC with 440 lever cistern with lever flush 44cm wide cistern C3 Standard low level WC with 520 front push button cistern with push button flush 52cm wide cistern C2 Standard low level WC with 440 front push button cistern with push button flush 44cm wide cistern C4
Cistern Options
Standard low level WC with 440 lever cistern Standard Cistern
flush pipe options
Standard low level WC with 440 lever cistern Chrome Standard low level WC with 440 lever cistern - NICKEL Nickel Standard low level WC with 440 lever cistern - GOLD Gold
Alternate Text

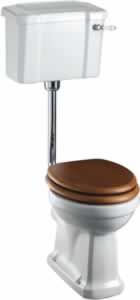

As Shown
C3 Close coupled/low level ceramic lever cistern
T31CHR Low Level Flush Pipe kit including Flush pipes and reverse screw cistern connector
P2 Low/high level pan
S11 Golden oak seat
A51CHR Burlington seat handle Chrome
Colour
C3 - cistern - Gloss White
T31CHR - fittings - Polished Chrome
P2 - pan - Gloss White
S11 - seat - Oak
A51CHR - accessories - Polished Chrome
Material
C3 - cistern - Vitreous China
T31CHR - fittings - Brass
P2 - pan - Vitreous China
S11 - seat - Molded Wood
A51CHR - accessories - Zinc Alloy
Size
C3 - 215 x 450 x 330mm
T31CHR - 221 x 38 x 420mm
P2 - 524 x 360 x 403mm
S11 - 432 x 371 x 65mm
A51CHR - 50 x 56 x 8mm
Nett Weight
C3 - cistern - 14.1kg
T31CHR - fittings - 1.27kg
P2 - pan - 17kg
S11 - seat - 2.62kg
A51CHR - accessories - 0.04kg
Gross Weight Including Packaging
C3 - cistern - 16.3kg
T31CHR - fittings - 1.59kg
P2 - pan - 18.7kg
S11 - seat - 2.84kg
A51CHR - accessories - 0.07kg
Packed Dimension
C3 - 537 x 227 x 360 = 0.0439 m3
T31CHR - 440 x 230 x 65 = 0.0066 m3
P2 - 542 x 372 x 428 = 0.0863 m3
S11 - 440 x 373 x 65 = 0.0107 m3
A51CHR - 60 x 60 x 100 = 0.0004 m3
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN 248:2002
BS EN 33:2019
BS EN 14055:2018
BS EN 997:2018
Additional Information
Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.
The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,075mm to the top of the cistern, minimum height is 900mm.
Water Inlet valve hole is located on the base of cistern tank on the right hand side.
Bottom inlet valve (SP5). Back inlet valve available as optional item (SP511).
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.
Dual flush cistern fittings with ceramic lever on the right.
Press lever down for 6 litre flush and up for 3 litre flush.
P trap standard height pan - height from floor to pan rim is 40cm.
Recommended to be used with cistern tank isolation valve W25.
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.
Regal Height pan ( floor to pan rim height 48cm ) available : P16.
Cistern can be used with optional decorative Ornate Brackets T32 CHR.
Low level wc must be used with standard Burlington toilet seats.
Supplied with floor fixings.
SP12 44cm Cistern Lid for C3 & C4
SP511 back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021 bottom sealing washer of flush valve for product C1, C3, C3, C4
SP965 brass decorative cover of cistern connection for product T31 CHR
SP1353 brass fixing nut for all finishes products of T30, T31, T33, T34
SP509 buffers for the seat ring & lid for S11, S12, S16, S17
SP17A chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP5 cistern fittings for C3 (with small metal spacer)
SP84 cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP9 cistern Push Button
SP620 complete bar hinges for S11, S12
SP890 flush pipe of product T31 CHR
SP192 hinge fixings for S11, S12, S16, S17 seats
SP504_2 inlet valve for Burlington close coupled cisterns
SP508 kit for close couple cistern
SP507 kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP160 l shape bracket(pair) for T31CHR
SP17 screw fixing pack for pan and bidet
SP193 spare Parts for S11, S12
SP387 WC floor fixing plastic caps - GOLD
SP1744 white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
Downloads
  • Instructions - PDF - C3 (English)
  • Instructions - PDF - T31CHR (English)
  • Instructions - PDF - S11 (English)
  • Instructions - PDF - A51CHR (English)
  • Instructions - PDF - S11 (French)
  • Instructions - PDF - A51CHR (French)
  • Instructions - PDF - T31CHR (French)
  • Instructions - PDF - C3 (French)
  • 3D DWG - File - DWG  -  C3 P2 T31 CHR (2766-20201116.dwg)
  • 3D RFA BIMM Objects - File - RFA  -  C3 P2 T31 CHR (2766-20201116.rfa)
  • 3D STP - File - STP  -  C3 P2 T31 CHR (C3.stp)
  • 3D IGS - File - IGS  -  C3 P2 T31 CHR (t31.igs)
  • Lifestyle image 1 - tiff pending.
  • Lifestyle image 2 - tiff pending.
  • Product image 1 - tiff jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
