Standard P trap horizontal outlet P5

Product Options

Finish options

White

WC options

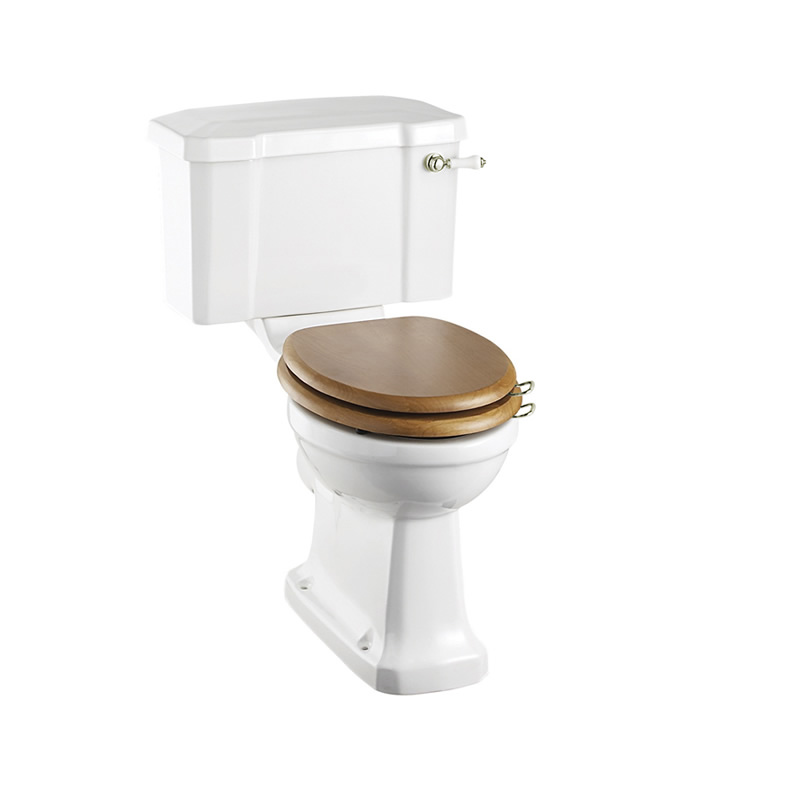

with lever flush 52cm wide cistern C1

with lever flush 44cm wide cistern C3

Standard CC WC with 520 front push button cistern

with push button flush 52cm wide cistern C2

Standard CC WC with 440 front push button cistern

with push button flush 44cm wide cistern C4

handle options

white & chrome	white & nickel	white & gold
black & chrome	walnut & chrome	white & brushed nickel

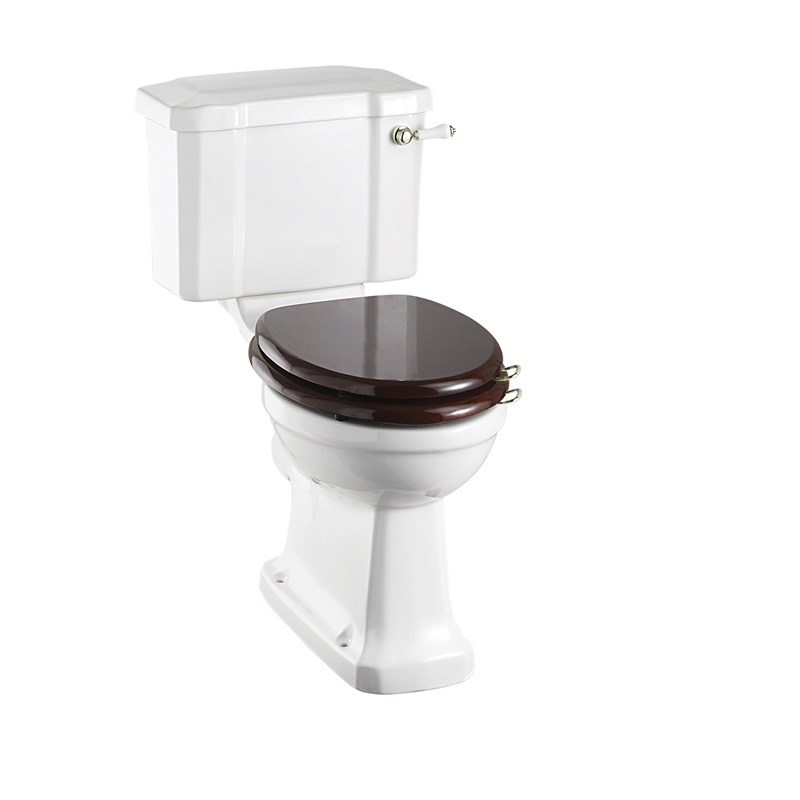

As Shown

P5 Close coupled pan

C3 Close coupled/low level ceramic lever cistern

S12 Mahogaony seat

A51 NKL Burlington seat handle Nickel

SP8 NKL Cistern Lever for C1, C3 - nickel

Colour

P5 - pan - Gloss White

C3 - cistern - Gloss White

S12 - seat - Gloss Mahogany

A51 NKL - accessories - Polished Nickel

SP8 NKL - - Polished Nickel

Material

P5 - pan - Vitreous China

C3 - cistern - Vitreous China

S12 - seat - Molded Wood

A51 NKL - accessories - Brass

SP8 NKL - - Zinc Alloy

Size

P5 - 655 x 355 x 450mm

C3 - 215 x 450 x 330mm

S12 - 432 x 371 x 65mm

A51 NKL - 56 x 56 x 8mm

SP8 NKL - 75 x 25 x 90mm

Nett Weight

P5 - pan - 21.45kg

C3 - cistern - 14.1kg

S12 - seat - 2.87kg

A51 NKL - accessories - 0.04kg

SP8 NKL - - 0.38kg

Gross Weight Including Packaging

P5 - pan - 24.15kg

C3 - cistern - 16.3kg

S12 - seat - 3.1kg

A51 NKL - accessories - 0.07kg

SP8 NKL - - 0.53kg

Packed Dimension

P5 - 672 x 370 x 475 = 0.1181 m3

C3 - 537 x 227 x 360 = 0.0439 m3

S12 - 440 x 373 x 65 = 0.0107 m3

A51 NKL - 60 x 60 x 100 = 0.0004 m3

SP8 NKL - 90 x 35 x 105 = 0.0003 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 14055:2018

BS EN 997:2018

BS EN 33:2019

Additional Information

Dual flush cistern fittings with ceramic lever on the right.

Press lever down for 6 litre flush and up for 3 litre flush.

Regal Height pan ( floor to pan rim height 48cm ) available : P12.

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.

Metal connection bracket.

Close coupled wc must be used with standard Burlington toilet seats

Supplied with floor fixings.

Recommended to be used with cistern tank isolation valve W25.

P trap standard height pan - height from floor to pan rim is 42cm.

Water Inlet valve hole is located on the base of cistern tank on the right hand side

Bottom inlet valve (SP5). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.

Spare parts

SP12	44cm Cistern Lid for C3 & C4
SP511	back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021	bottom sealing washer of flush valve for product C1, C3, C3, C4
SP509	buffers for the seat ring & lid for S11, S12, S16, S17
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP5	cistern fittings for C3 (with small metal spacer)
SP84	cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP9	cistern Push Button
SP620	complete bar hinges for S11, S12
SP192	hinge fixings for S11, S12, S16, S17 seats
SP504_2	inlet valve for Burlington close coupled cisterns
SP508	kit for close couple cistern
SP507	kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP17	screw fixing pack for pan and bidet
SP387	WC floor fixing plastic caps - GOLD
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
