Standard P trap horizontal outlet P5

Product Options

Finish options

Standard CC WC with 520 front push button cistern

White

WC options

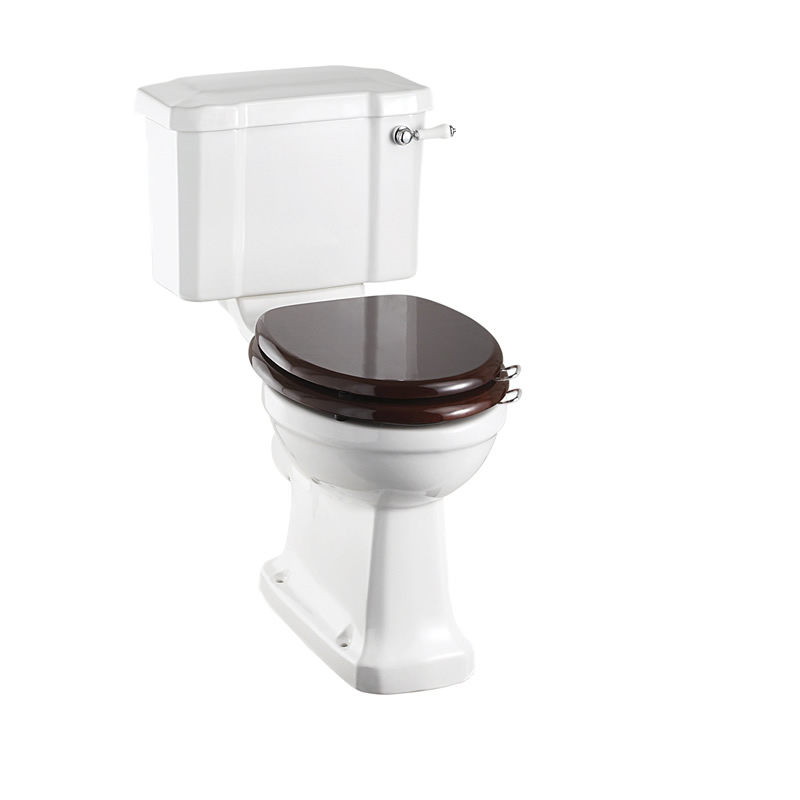

with lever flush 52cm wide cistern C1

with lever flush 44cm wide cistern C3

with push button flush 52cm wide cistern C2

Standard CC WC with 440 front push button cistern

with push button flush 44cm wide cistern C4

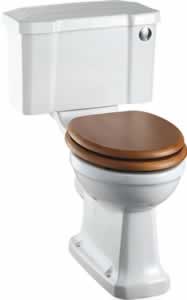

As Shown

P5 Close coupled pan

C2 510mm close coupled/low level front button cistern

S11 Golden oak seat

A51 CHR Burlington seat handle Chrome

Colour

P5 - pan - Gloss White

C2 - cistern - Gloss White

S11 - seat - Oak

A51 CHR - accessories - Polished Chrome

Material

P5 - pan - Vitreous China

C2 - cistern - Vitreous China

S11 - seat - Molded Wood

A51 CHR - accessories - Zinc Alloy

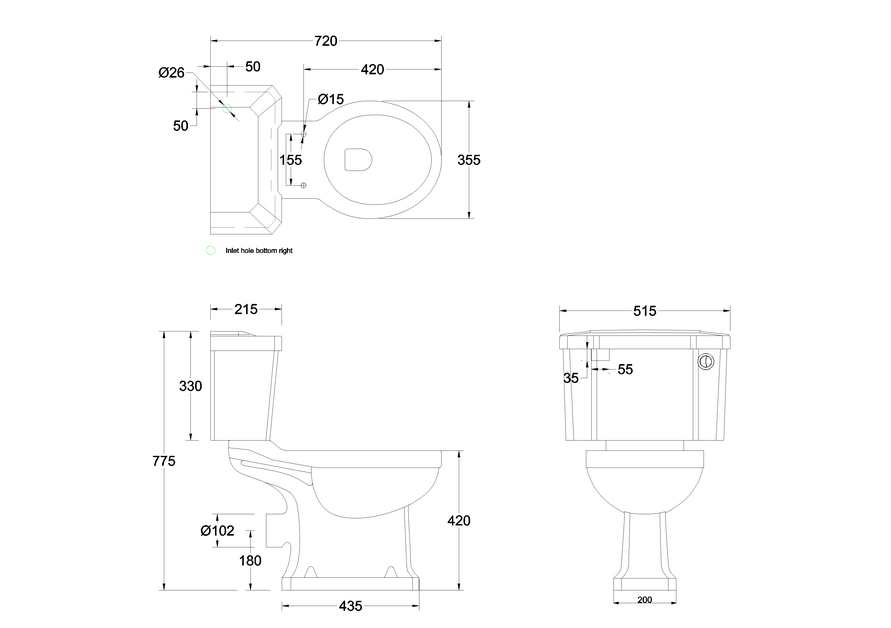

Size

P5 - 655 x 355 x 450mm

C2 - 205 x 515 x 330mm

S11 - 432 x 371 x 65mm

A51 CHR - 50 x 56 x 8mm

Nett Weight

P5 - pan - 21.45kg

C2 - cistern - 15.8kg

S11 - seat - 2.62kg

A51 CHR - accessories - 0.04kg

Gross Weight Including Packaging

P5 - pan - 24.15kg

C2 - cistern - 17.9kg

S11 - seat - 2.84kg

A51 CHR - accessories - 0.07kg

Packed Dimension

P5 - 672 x 370 x 475 = 0.1181 m3

C2 - 537 x 227 x 360 = 0.0439 m3

S11 - 440 x 373 x 65 = 0.0107 m3

A51 CHR - 60 x 60 x 100 = 0.0004 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 14055:2018

BS EN 997:2018

BS EN 33:2019

Additional Information

P trap standard height pan - height from floor to pan rim is 42cm.

Water Inlet valve hole is located on the base of cistern tank on the right hand side

Bottom inlet valve (SP6). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.

Regal Height pan ( floor to pan rim height 48cm ) available : P12.

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.

Metal connection bracket.

Close coupled wc must be used with standard Burlington toilet seats

Supplied with floor fixings.

Recommended to be used with cistern tank isolation valve W25.

Spare parts

SP11	51cm Cistern Lid for C1 & C2
SP511	back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021	bottom sealing washer of flush valve for product C1, C3, C3, C4
SP509	buffers for the seat ring & lid for S11, S12, S16, S17
SP6	button Dual Flush Bottom Entry cistern fitting
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP85	cistern flush valve with control cable SP6 (excluding button and inlet valve)
SP9	cistern Push Button
SP620	complete bar hinges for S11, S12
SP192	hinge fixings for S11, S12, S16, S17 seats
SP504-2	inlet valve for Burlington close coupled cisterns
SP508	kit for close couple cistern
SP507	kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP17	screw fixing pack for pan and bidet
SP193	spare Parts for S11, S12
SP387	WC floor fixing plastic caps - GOLD
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
