Regal Close Coupled WC
Product Options
WC options
handle options
with lever flush 52cm wide cistern C1
|
with lever flush 44cm wide cistern C3
|
with push button flush 52cm wide cistern C2
|
with push button flush 44cm wide cistern C4
|
white & chrome
|
white & nickel
|
white & gold
|
black & chrome
|
walnut & chrome
|
white & brushed nickel
|

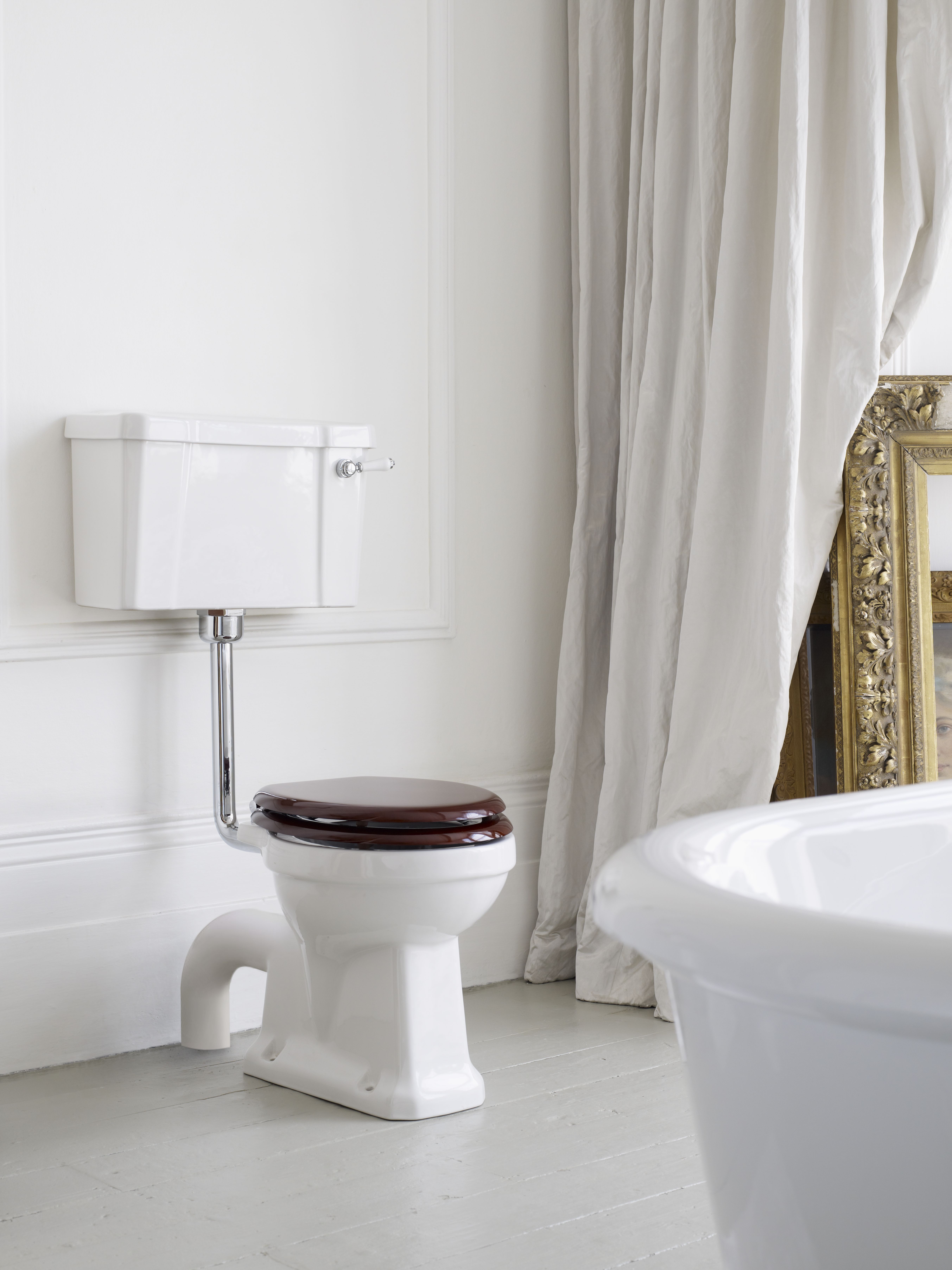

As Shown
| P12 Regal close coupled pan |
| C3 Close coupled/low level ceramic lever cistern |
| S12 Mahogaony seat |
| A51GOLD Burlington seat handle GOLD |
| SP390GOLD Cistern Lever for C1, C3 - GOLD |
| SP387 WC floor fixing plastic plugs and covers - GOLD |
Colour
| P12 - pan - Gloss White |
| C3 - cistern - Gloss White |
| S12 - seat - Gloss Mahogany |
| A51GOLD - accessories - Polished Gold |
| SP390GOLD - cistern lever - Polished Gold |
| SP387 - plugs and covers - Polished Gold |
Material
| P12 - pan - Vitreous China |
| C3 - cistern - Vitreous China |
| S12 - seat - Molded Wood |
| A51GOLD - accessories - Zinc Alloy |
| SP390GOLD - cistern lever - Zinc Alloy |
| SP387 - plugs and covers - ABS |
Size
| P12 - 655 x 355 x 520mm |
| C3 - 215 x 450 x 330mm |
| S12 - 432 x 371 x 65mm |
| A51GOLD - 50 x 56 x 8mm |
| SP390GOLD - 75 x 25 x 90mm |
Nett Weight
| P12 - pan - 22.1kg |
| C3 - cistern - 14.1kg |
| S12 - seat - 2.87kg |
| A51GOLD - accessories - 0.04kg |
| SP390GOLD - cistern lever - 0.22kg |
| SP387 - plugs and covers - 0.004kg |
Gross Weight Including Packaging
| P12 - pan - 24.7kg |
| C3 - cistern - 16.3kg |
| S12 - seat - 3.1kg |
| A51GOLD - accessories - 0.07kg |
| SP390GOLD - cistern lever - 0.53kg |
| SP387 - plugs and covers - 0.01kg |
Packed Dimension
| P12 - 672 x 365 x 540 = 0.1325 m3 |
| C3 - 537 x 227 x 360 = 0.0439 m3 |
| S12 - 440 x 373 x 65 = 0.0107 m3 |
| A51GOLD - 60 x 60 x 100 = 0.0004 m3 |
| SP390GOLD - 90 x 35 x 105 = 0.0003 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 997:2012 |
|
BS EN 33:2011 |
Additional Information
|
Regal Height pan P12 ( floor to pan rim height 48cm ) is 8cm taller than a standard pan. |
|
Water Inlet valve hole is located on the base of cistern tank on the right hand side |
|
Dual flush cistern fittings with ceramic lever on the right. |
|
Press lever down for 6 litre flush and up for 3 litre flush. |
|
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26 |
|
Metal connection bracket. |
|
Supplied with floor fixings. |
|
Recommended to be used with cistern tank isolation valve W25 |
|
Bottom inlet valve (SP5). Back inlet valve available as optional item (SP511). |
|
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug |
| SP12 | 44cm Cistern Lid for C3 & C4 |
| SP511 | back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug |
| SP1021 | bottom sealing washer of flush valve for product C1, C3, C3, C4 |
| SP509 | buffers for the seat ring & lid for S11, S12, S16, S17 |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP5 | cistern fittings for C3 (with small metal spacer) |
| SP84 | cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve) |
| SP9 | cistern Push Button |
| SP620 | complete bar hinges for S11, S12 |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP504_2 | inlet valve for Burlington close coupled cisterns |
| SP508 | kit for close couple cistern |
| SP507 | kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR |
| SP1744 | white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals |
Downloads
- Instructions - PDF - C3 (English)
- Instructions - PDF - S12 (English)
- Instructions - PDF - A51GOLD (English)
- Instructions - PDF - S12 (French)
- Instructions - PDF - A51GOLD (French)
- Instructions - PDF - C3 (French)
-
2D CAD-File - DWG -
C3 P12 S12 A51 GOLD SP390 GOLD SP837
(P12-C3.dwg)
-
2D Drawing - PDF -
C3 P12 S12 A51 GOLD SP390 GOLD SP837
(P12-C3.pdf)
2D Drawing - PDF - C3 P12 S12 A51 GOLD SP390 GOLD SP837
-
3D DWG - File - DWG
-
C3 P12 S12 A51 GOLD SP390 GOLD SP837
(4502-20201119.dwg)
-
3D RFA BIMM Objects - File - RFA
-
C3 P12 S12 A51 GOLD SP390 GOLD SP837
(4502-20201119.rfa)
-
3D STP - File - STP
-
C3 P12 S12 A51 GOLD SP390 GOLD SP837
(C3.stp)
-
3D STP - File - STP
-
C3 P12 S12 A51 GOLD SP390 GOLD SP837
(P12.stp)
