vertical rigid riser pipe and wall mounting
Product Options
Finish Options
Chrome
|
Gold
|
Nickel
|
Brushed Nickel
|
As Shown
| V21 GOLD Standard vertical riser (with one adjustable vertical riser wall bracket) -GOLD |
Material
| V21 GOLD - riser - Brass |
Nett Weight
| V21 GOLD - riser - 0.86kg |
Gross Weight Including Packaging
| V21 GOLD - riser - 1.07kg |
Packed Dimension
| V21 GOLD - 860 x 95 x 70 = 0.0057 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
| ARCSP39 GOLD | gold finish compression nut and olive for V21 GOLD and V22 GOLD riser rail |
| SP1713 | the screws in gold finish for AF3S GOLD, V21 GOLD, V22 GOLD (4pcs) |
| SP662GOLD | wall bracket in gold for V21 GOLD, V22 GOLD |
Downloads
-
2D CAD-File - DWG -
V21 GOLD
(ARCV21 NKL.dwg)
-

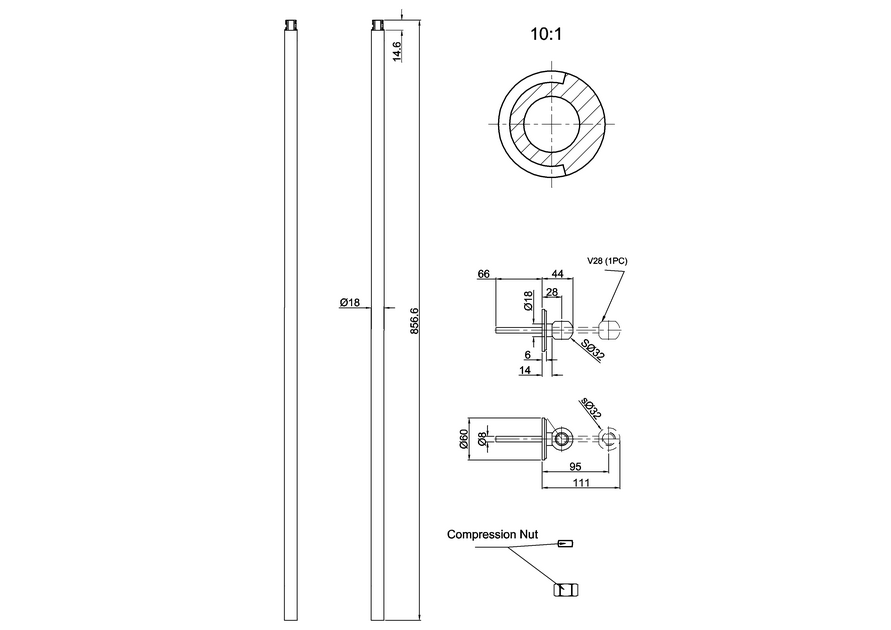

2D Drawing - PDF -
V21 GOLD
(ARCV21 NKL.pdf)
2D Drawing - PDF - V21 GOLD
-
3D RFA BIMM Objects - File - RFA
-
V21 GOLD
(ARCV21 NKL_1.rfa)
- 3D DWG - File - DWG - V21 GOLD (V21.dwg)
- 3D DXF - File - DXF - V21 GOLD (V21.dxf)
- 3D IGS - File - IGS - V21 GOLD (V21.igs)
