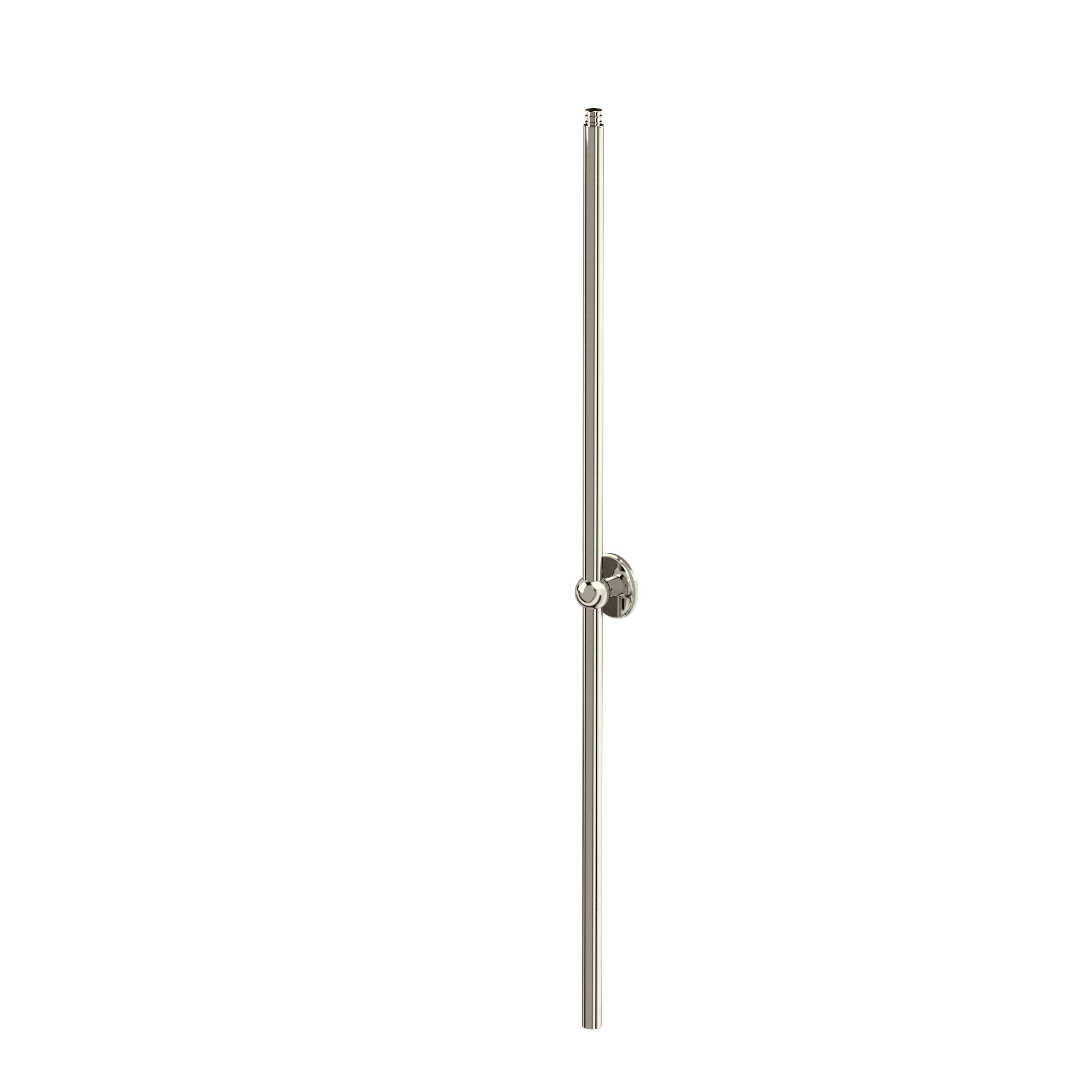

vertical rigid riser pipe and wall mounting
Product Options
Finish Options
|
Chrome
|

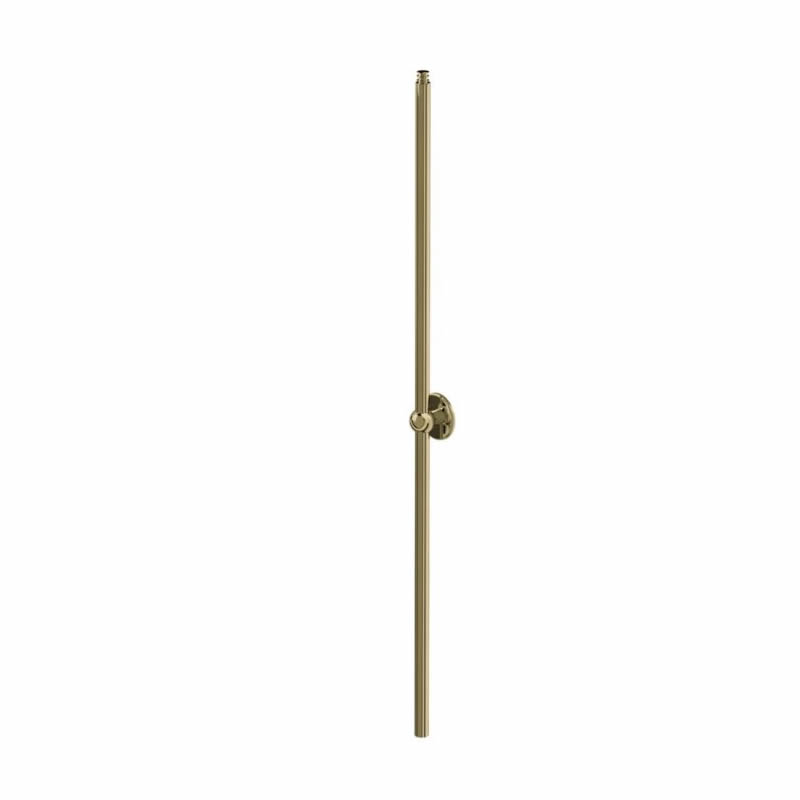

Gold
|
Nickel
|

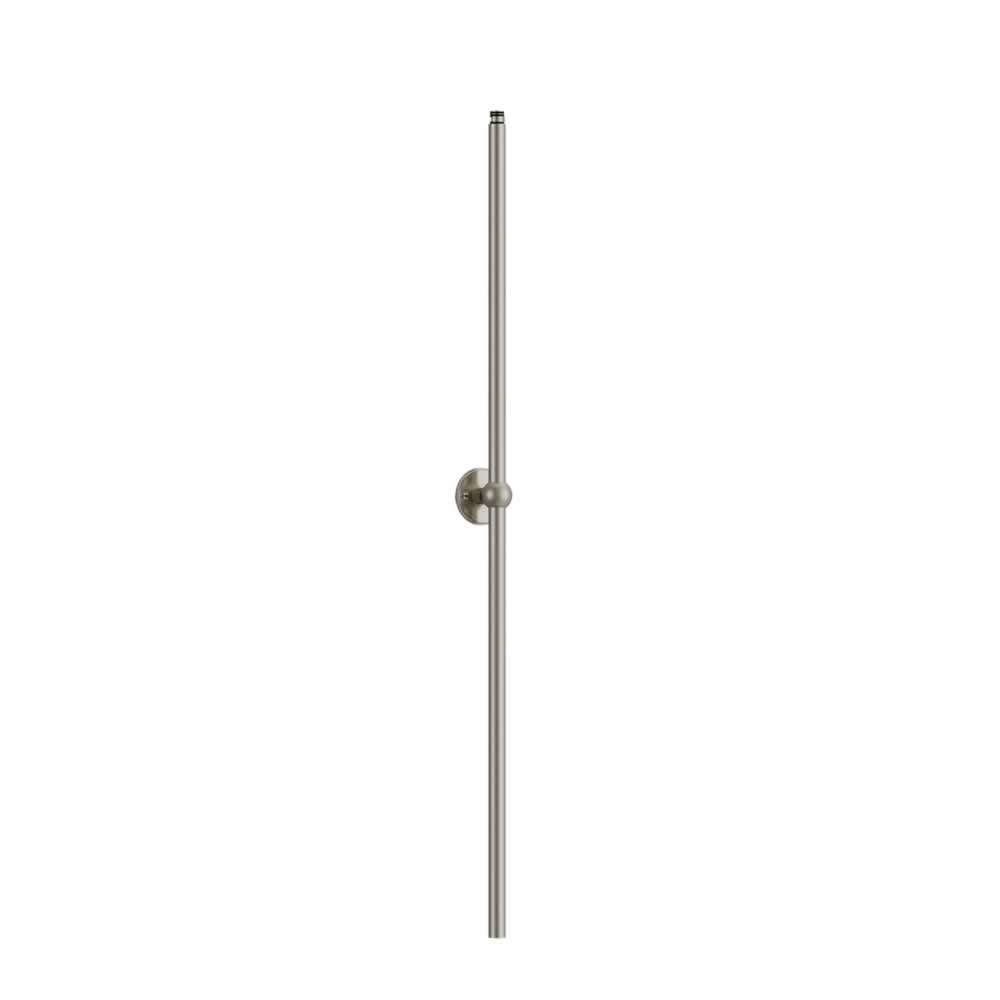

Brushed Nickel
|
As Shown
| V21 Standard vertical riser |
Material
| V21 - riser - Brass |
Nett Weight
| V21 - riser - 0.86kg |
Gross Weight Including Packaging
| V21 - riser - 1.07kg |
Packed Dimension
| V21 - 860 x 95 x 70 = 0.0057 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
| SP806 | 3x rubber o rings and 1x plastic washer for all finishes products of V21, V22, ARCV21, ARCV22 |
| SP110 | chrome compression nut and olive for V21, V22, V31, V27 |
| SP868 | inner box of product V21 |
| SP662 | one unit of wall Bracket for V21and V22(28-171mm) |
| SP1147 | the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws) |
| SP188 | wall Bracket for V21and V22(28-125mm) |
Downloads
-
2D CAD-File - DWG -
V21
(ARCV21 NKL_1.dwg)
-

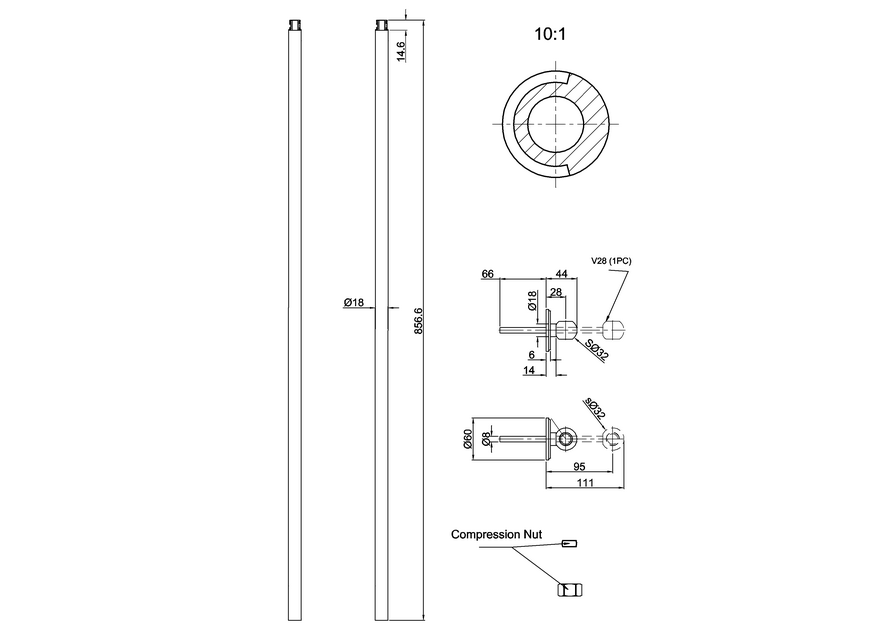

2D Drawing - PDF -
V21
(ARCV21 NKL_1.pdf)
2D Drawing - PDF - V21
-
3D RFA BIMM Objects - File - RFA
-
V21
(ARCV21 NKL_1.rfa)
- 3D DWG - File - DWG - V21 (V21.dwg)
- 3D DXF - File - DXF - V21 (V21.dxf)
- 3D IGS - File - IGS - V21 (V21.igs)
