Regal Medium Level WC

Product Options

WC options

Regal medium level WC with 520 lever cistern

with lever flush 52cm wide cistern C1

Regal medium level WC with 440 - white lever cistern

with lever flush 44cm wide cistern C3

handle options

white & chrome

Regal medium level WC with 440 - black lever cistern

black & chrome

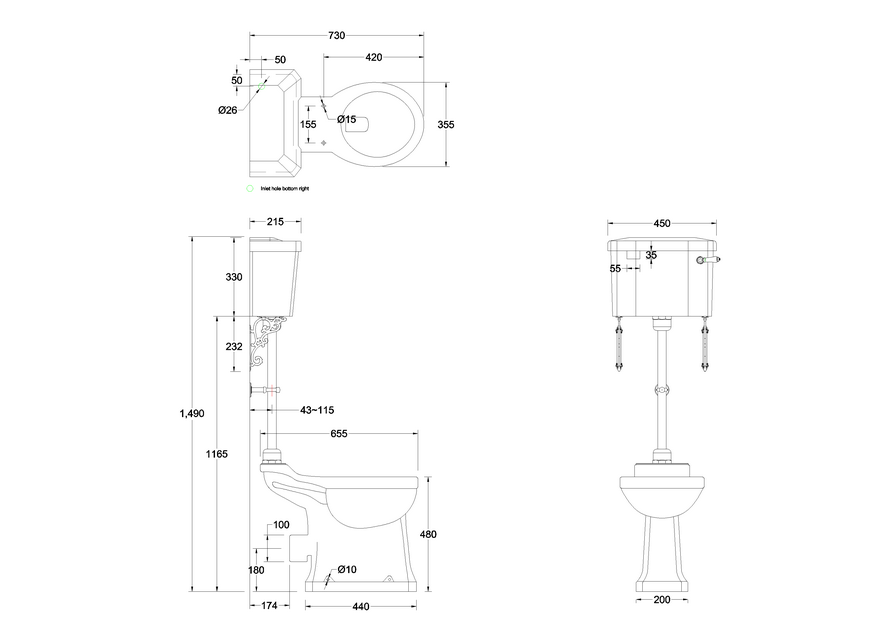

As Shown

P12 Regal close coupled pan

C3 Close coupled/low level ceramic lever cistern

T33CHR Medium Level Flush Pipe Kit Including Medium Ornate Brackets In Chrome

S18 Gloss white soft close hinge seat

Colour

P12 - pan - Gloss White

C3 - cistern - Gloss White

T33CHR - fittings - Polished Chrome

S18 - seat - Gloss White

Material

P12 - pan - Vitreous China

C3 - cistern - Vitreous China

T33CHR - fittings - Brass

S18 - seat - Urea

Size

P12 - 655 x 355 x 520mm

C3 - 215 x 450 x 330mm

T33CHR - 105 x 220 x 703mm

S18 - 370 x 439 x 56mm

Nett Weight

P12 - pan - 22.1kg

C3 - cistern - 14.1kg

T33CHR - fittings - 3.23kg

S18 - seat - 2.53kg

Gross Weight Including Packaging

P12 - pan - 24.7kg

C3 - cistern - 16.3kg

T33CHR - fittings - 3.94kg

S18 - seat - 2.76kg

Packed Dimension

P12 - 672 x 365 x 540 = 0.1325 m3

C3 - 537 x 227 x 360 = 0.0439 m3

T33CHR - 785 x 220 x 65 = 0.0112 m3

S18 - 462 x 376 x 72 = 0.0125 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 997:2012

BS EN 33:2011

Additional Information

Press lever down for 6 litre flush and up for 3 litre flush.

Dual flush cistern fittings with ceramic lever on the right.

Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.

Water Inlet valve hole is located on the base of cistern tank on the right hand side.

The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,425mm to the top of the cistern, minimum height is1,125mm.

The distance from the wall to the soil pipe is fixed and cannot be extended, except by using the extended depth cistern C30 ( this moves the pan an extra 30mm forwards).

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.

The medium level wc uses a standard close coupled pan and close coupled cistern, connected with a medium level flush pipe kit T33 CHR.

Spare parts

SP12	44cm Cistern Lid for C3 & C4
SP511	back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021	bottom sealing washer of flush valve for product C1, C3, C3, C4
SP1353	brass fixing nut for all finishes products of T30, T31, T33, T34
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP5	cistern fittings for C3 (with small metal spacer)
SP84	cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP9	cistern Push Button
SP119	decorative cover of cistern connection for T30CHR & T33CHR
SP1355	fixings for T33 CHR
SP136	flush cone washer for T33 CHR
SP187	flush pipe for T33CHR
SP1323	flush pipe wall bracket for T33 CHR
SP504_2	inlet valve for Burlington close coupled cisterns
SP508	kit for close couple cistern
SP507	kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP898	pan decoration plate (including the screws, washers and fixing nuts) of product T33 CHR
SP169	rubber insert for all finishes products of T30, T33, SP20 clip
SP460	thick rubber washer for T33CHR
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
