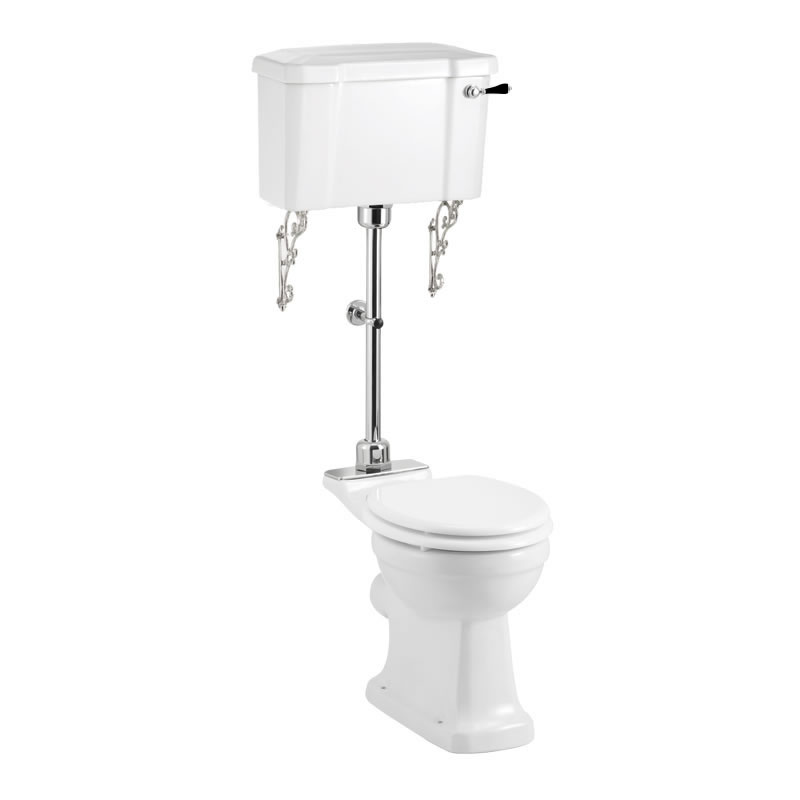

Regal Medium Level WC

Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.

Water Inlet valve hole is located on the base of cistern tank on the right hand side.

The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,425mm to the top of the cistern, minimum height is1,125mm.

The distance from the wall to the soil pipe is fixed and cannot be extended, except by using the extended depth cistern C30 ( this moves the pan an extra 30mm forwards).

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.

The medium level wc uses a standard close coupled pan and close coupled cistern, connected with a medium level flush pipe kit T33 CHR.

Spare parts

SP12	44cm Cistern Lid for C3 & C4
SP511	back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021	bottom sealing washer of flush valve for product C1, C3, C3, C4
SP1353	brass fixing nut for all finishes products of T30, T31, T33, T34
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP5	cistern fittings for C3 (with small metal spacer)
SP84	cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP9	cistern Push Button
SP119	decorative cover of cistern connection for T30CHR & T33CHR
SP1355	fixings for T33 CHR
SP136	flush cone washer for T33 CHR
SP187	flush pipe for T33CHR
SP1323	flush pipe wall bracket for T33 CHR
SP504-2	inlet valve for Burlington close coupled cisterns
SP508	kit for close couple cistern
SP507	kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP898	pan decoration plate (including the screws, washers and fixing nuts) of product T33 CHR
SP169	rubber insert for all finishes products of T30, T33, SP20 clip
SP460	thick rubber washer for T33CHR
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
