Shoreditch Circular Mirror LED
asaq2.Model.Web_product_new?.web_name
Product Options
Size options:
Shoreditch Circular Mirror 600 Ø LED 600 Ø Shoreditch Circular Mirror 800 Ø LED 800 Ø Shoreditch Circular Mirror 900 Ø LED 900 Ø
Alternate Text
As Shown
SHR057 −
Guarantee
3 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 60598-2-1:1989
BS EN 60598-1:2015
BS EN 62493:2015
UTE C
Additional Information
IP rating: IP44
LED colour temperature: 2700K-6400K
Lumen: 722
Sensor placement: 115mm from bottom edge of mirror
Power cable length : 1050mm
Demister pad size: 320mm*350mm
Light control:
Left button: Touch to switch on/off of main light. Touch and hold to adjust the colour.
Right button: Touch to switch on/off of the demister. Touch and hold to adjust the brightness.
Downloads
  • Instructions - PDF - SHR057 (English)
  • Instructions - PDF - (French)
  • 3D STP - File - STP  -  SHR.057 pending
  • 3D RFA BIMM Objects - File - RFA  -  SHR.057 (SHR.061.rfa)
  • Lifestyle image 1 -
    jpg
  • Lifestyle image 2 -
    jpg
  • Lifestyle image 3 -
    jpg
  • Product image 1 - jpg

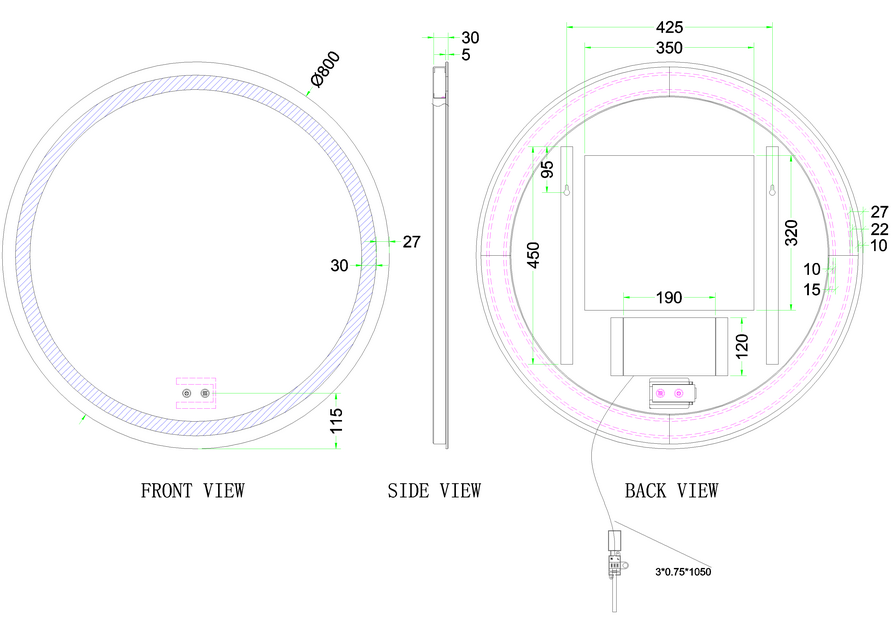

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
