Shoreditch Circular Mirror LED
.jpg)
Product Options
Size options:
.jpg "116990")
600 Ø
|
.jpg "116991")
800 Ø
|
900 Ø
|
As Shown
| SHR.058 Shoreditch Circular Mirror 900 Ø LED |
Colour
| SHR.058 - mirror - Clear |
Material
| SHR.058 - mirror - Glass |
Nett Weight
| SHR.058 - mirror - 10.1kg |
Gross Weight Including Packaging
| SHR.058 - mirror - 11.66kg |
Packed Dimension
| SHR.058 - 960 x 960 x 70 = 0.0645 m3 |
Guarantee
|
3 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 60598-2-1:1989 |
|
BS EN 60598-1:2015 |
|
BS EN 62493:2015 |
Additional Information
|
IP rating: IP44 |
|
LED colour temperature: 2700K-6400K |
|
Lumen: 827 |
|
Sensor placement: 115mm from bottom edge of mirror |
|
Power cable length : 1050mm |
|
Demister pad size: 400mm*450mm |
|
Light control: |
|
Left button: Touch to switch on/off of main light. Touch and hold to adjust the colour. |
|
Right button: Touch to switch on/off of the demister. Touch and hold to adjust the brightness. |
Downloads
-

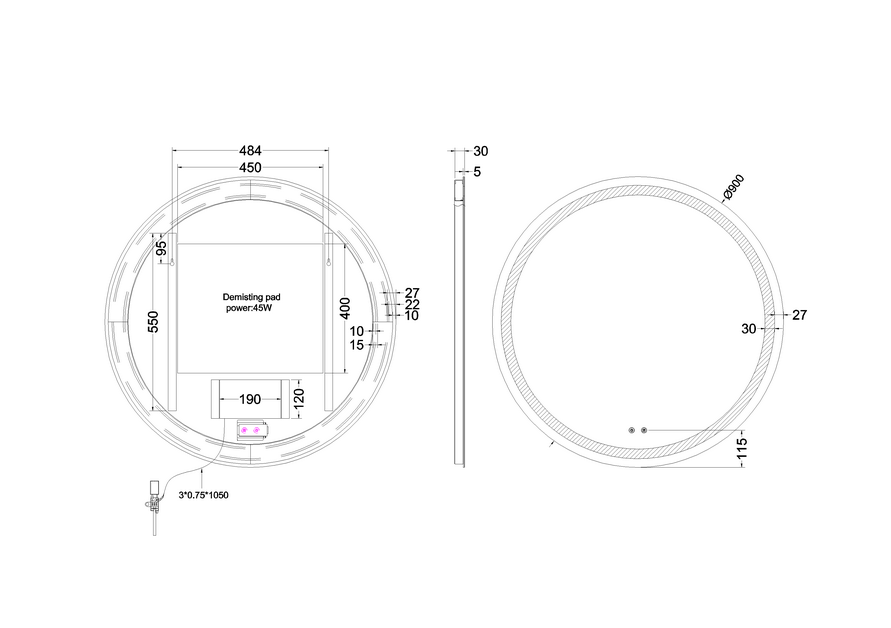

2D CAD-File - DWG -
SHR.058
(SHR.058.dwg)
-
2D Drawing - PDF -
SHR.058
(SHR.058.pdf)
2D Drawing - PDF - SHR.058
-
