Shoreditch Oblong Mirror LED
asaq2.Model.Web_product_new?.web_name
Product Options
Size options:
Shoreditch Oblong Mirror 400x600 LED 400x600 Shoreditch Oblong Mirror 600x800 LED 600x800 Shoreditch Oblong Mirror 1000x650 LED 1000x650
Alternate Text
As Shown
SHR060 −
Guarantee
3 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 60598-2-1:1989
BS EN 60598-1:2015
BS EN 62493:2015
UTE C
Additional Information
IP rating: IP44
LED colour temperature: 2700K-6400K
Lumen: 741
Sensor placement: 70mm from bottom edge of mirror
Power cable length : 1050mm
Demister pad size: 250mm*300mm
Light control: Touch to switch on/off. First touch and hold to adjust the brightness. Second touch and hold to adjust the colour.
Downloads
  • Instructions - PDF - SHR060 (English)
  • Instructions - PDF - (French)
  • 3D STP - File - STP  -  SHR.060 pending
  • 3D RFA BIMM Objects - File - RFA  -  SHR.060 (SHR.058.rfa)
  • Product image 1 - jpg

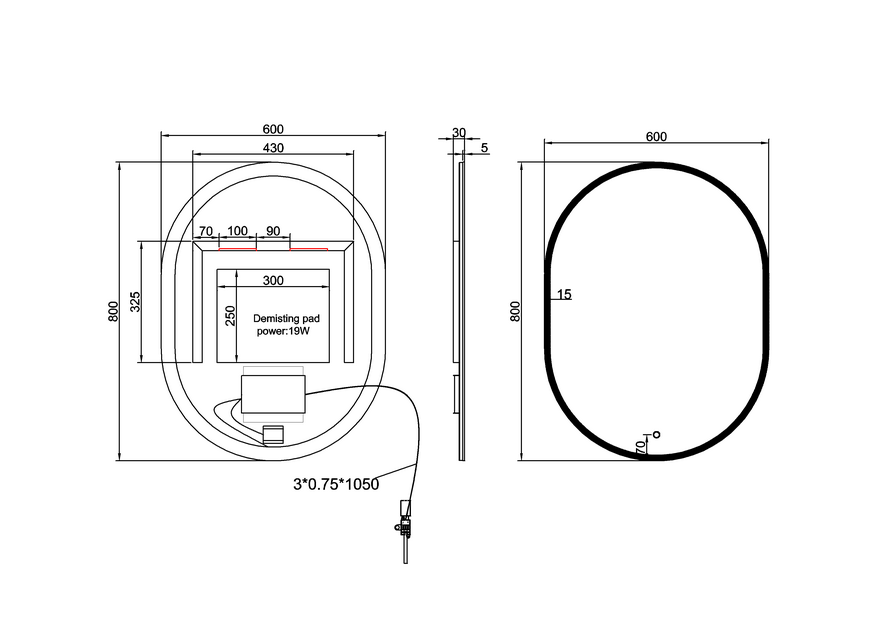

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
