Shoreditch Oblong Mirror LED
Product Options
Size options:
400x600
|
600x800
|
1000x650
|
As Shown
| SHR.061 Shoreditch Oblong Mirror 1000x650 LED |
Colour
| SHR.061 - mirror - Clear |
Material
| SHR.061 - mirror - Glass |
Nett Weight
| SHR.061 - mirror - 9kg |
Gross Weight Including Packaging
| SHR.061 - mirror - 10.1kg |
Packed Dimension
| SHR.061 - 710 x 1060 x 70 = 0.0527 m3 |
Guarantee
|
3 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 60598-2-1:1989 |
|
BS EN 60598-1:2015 |
|
BS EN 62493:2015 |
Additional Information
|
IP rating: IP44 |
|
LED colour temperature: 2700K-6400K |
|
Lumen: 893 |
|
Sensor placement: 70mm from bottom edge of mirror |
|
Power cable length : 1050mm |
|
Demister pad size: 310mm*450mm |
|
Light control: Touch to switch on/off. First touch and hold to adjust the brightness. Second touch and hold to adjust the colour. |
Downloads
-
2D CAD-File - DWG -
SHR.061
(SHR.061.dwg)
-

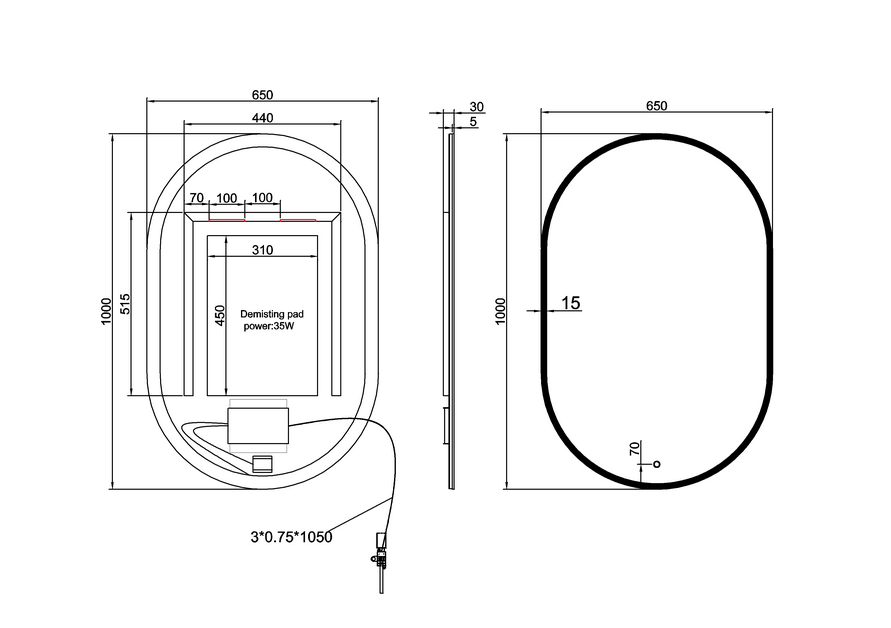

2D Drawing - PDF -
SHR.061
(SHR.061.pdf)
2D Drawing - PDF - SHR.061
