Contemporary Basin 61cm Upstand
Product Options
Mounting Options
wall mounted
|
with pedestal
|
with wash stand
|
with gold wash stand
|
with brushed nickel wash stand
|
As Shown
| B2UP1TH Contemporary Basin 61cm Upstand 1TH |
| P6 Classic pedestal |
Nett Weight
| B2UP1TH - - 23kg |
| P6 - pedestal - 12.25kg |
Gross Weight Including Packaging
| B2UP1TH - - 26.4kg |
| P6 - pedestal - 14.15kg |
Packed Dimension
| B2UP1TH - 645 x 530 x 387 = 0.1323 m3 |
| P6 - 687 x 325 x 275 = 0.0614 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| SP1714 | basin fixings for Burlington & Britton basins |
Downloads
- Instructions - PDF - B2UP1TH (English)
- Instructions - PDF - P6 (English)
- Instructions - PDF - P6 (French)
- Instructions - PDF - B2UP1TH (French)
-
2D CAD-File - DWG -
B2 UP 1TH P6
(B2 UP 1TH_P6.dwg)
-

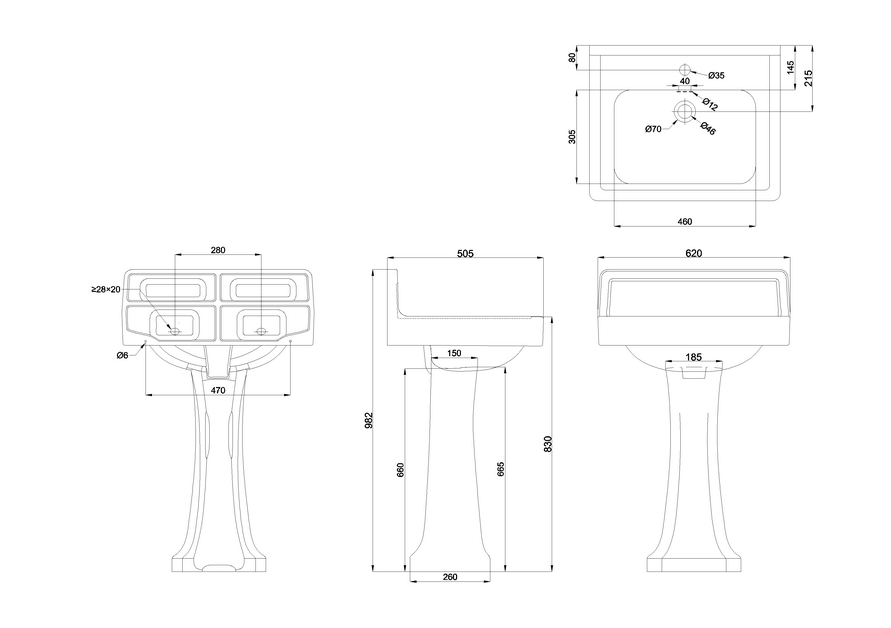

2D Drawing - PDF -
B2 UP 1TH P6
(B2 UP 1TH_P6.pdf)
2D Drawing - PDF - B2 UP 1TH P6
