Contemporary Basin 61cm Upstand
Product Options
Mounting Options
wall mounted
|
with pedestal
|
with wash stand
|
with gold wash stand
|
with brushed nickel wash stand
|
As Shown
| B2UP1TH Contemporary Basin 61cm Upstand 1TH |
| T23ABNKL 61cm Basin Wash Stand Brushed Nickel |
Nett Weight
| B2UP1TH - - 23kg |
| T23ABNKL - - 3kg |
Gross Weight Including Packaging
| B2UP1TH - - 26.4kg |
| T23ABNKL - - 4kg |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| SP843BNKL | adjust Screw of Bur Basin Stands BNick |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP824BNKL | floor Fixings Bur Basin Stands BrNickel |
| SP838BNKL | foot for Bur Basin Stands in Bru Nickel |
| SP1587 | grub screw for Burlington basin stands |
| SP225 | rubber washer for basin stands |
Downloads
- Instructions - PDF - B2UP1TH (English)
- Instructions - PDF - T23ABNKL (English)
- Instructions - PDF - T23ABNKL (French)
- Instructions - PDF - B2UP1TH (French)
-
2D CAD-File - DWG -
B2 UP 1TH T23A BNKL
(B2 UP 1TH_T23A.dwg)
-

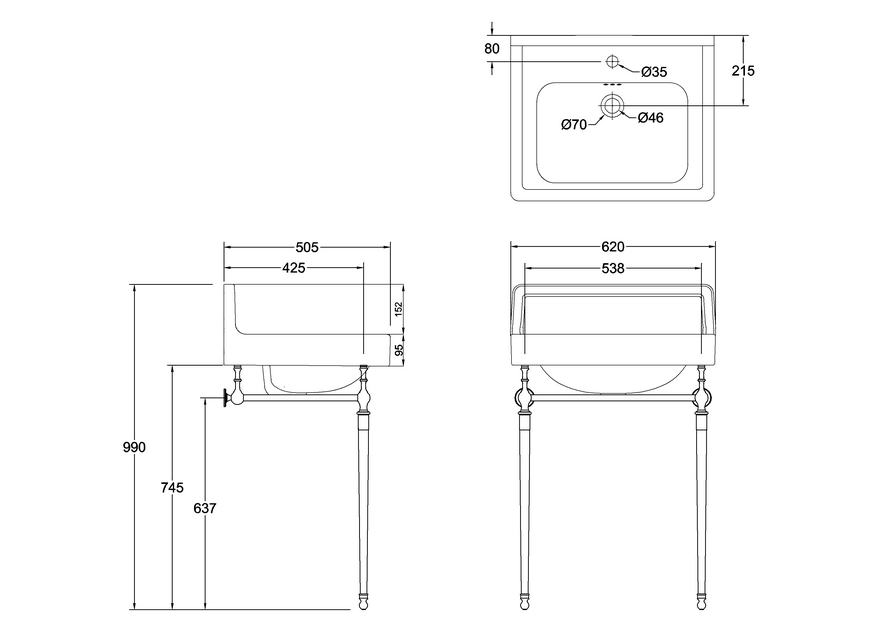

2D Drawing - PDF -
B2 UP 1TH T23A BNKL
(B2 UP 1TH_T23A.pdf)
2D Drawing - PDF - B2 UP 1TH T23A BNKL
