Bloomsbury radiator
Product Options
Radiator Options
White & Chrome
|
Black & Chrome
|
White & Nickel
|
White & Gold
|
White & Brushed Nickel
|
As Shown
| R2GOLD Bloomsbury Gold/White |
Material
| R2GOLD - radiator - Steel |
Nett Weight
| R2GOLD - radiator - 14.25kg |
Gross Weight Including Packaging
| R2GOLD - radiator - 16.25kg |
Packed Dimension
| R2GOLD - 980 x 570 x 130 = 0.0726 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 442-1:2015 |
|
BS EN 442-2:2015 |
|
BS EN 248:2002 |
Additional Information
|
The radiator can be installed and connected to a central heating system. |
|
THE TOWEL RAIL IS NOT SUITABLE FOR USE WITH DUAL FUEL ELEMENTS. |
|
320mm plumbing pipe centers |
|
Distance from wall to the rail is 110mm. |
|
Includes all brackets and fixings. |
|
High quality plated finish. |
|
Output:1518 BTUs/356 watts (△T=50℃) |
|
Valves are required. These are not included. |
|
Diameter of tubes is 32mm. |
|
Operating pressure up to 8 bar.(Certified by BEN N.L) |
|
Maximum working temperature:95℃ |
Compatible Products
| R6 GOLD - Angled Radiator Valve Gold |
| SP801GOLD | air Vent Gold Towel Rail |
| SP621 | black washer for R1 CHR, R2 CHR, R1 CHR BLA, R2 CHR BLA, R1 GOLD, R2 GOLD |
| SP137GOLD | brackets Set R1, R2, R4 GOLD |
Downloads
-
2D CAD-File - DWG -
R2 GOLD
(R2 GOLD_BNKL-230203.dwg)
-

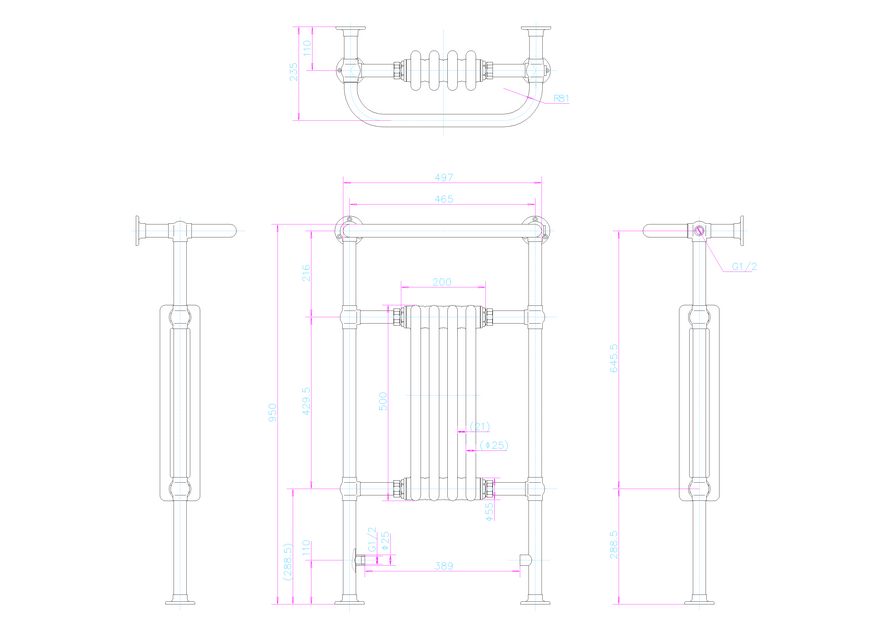

2D Drawing - PDF -
R2 GOLD
(R2 GOLD_BNKL-230203.pdf)
2D Drawing - PDF - R2 GOLD
-
3D DWG - File - DWG
-
R2 GOLD
(R2.dwg)
-
3D DXF - File - DXF
-
R2 GOLD
(R2.dxf)
-
3D RFA BIMM Objects - File - RFA
-
R2 GOLD
(R2.rfa)
-
3D IGS - File - IGS
-
R2 GOLD
(R2 GOLD_BNKL.igs)
