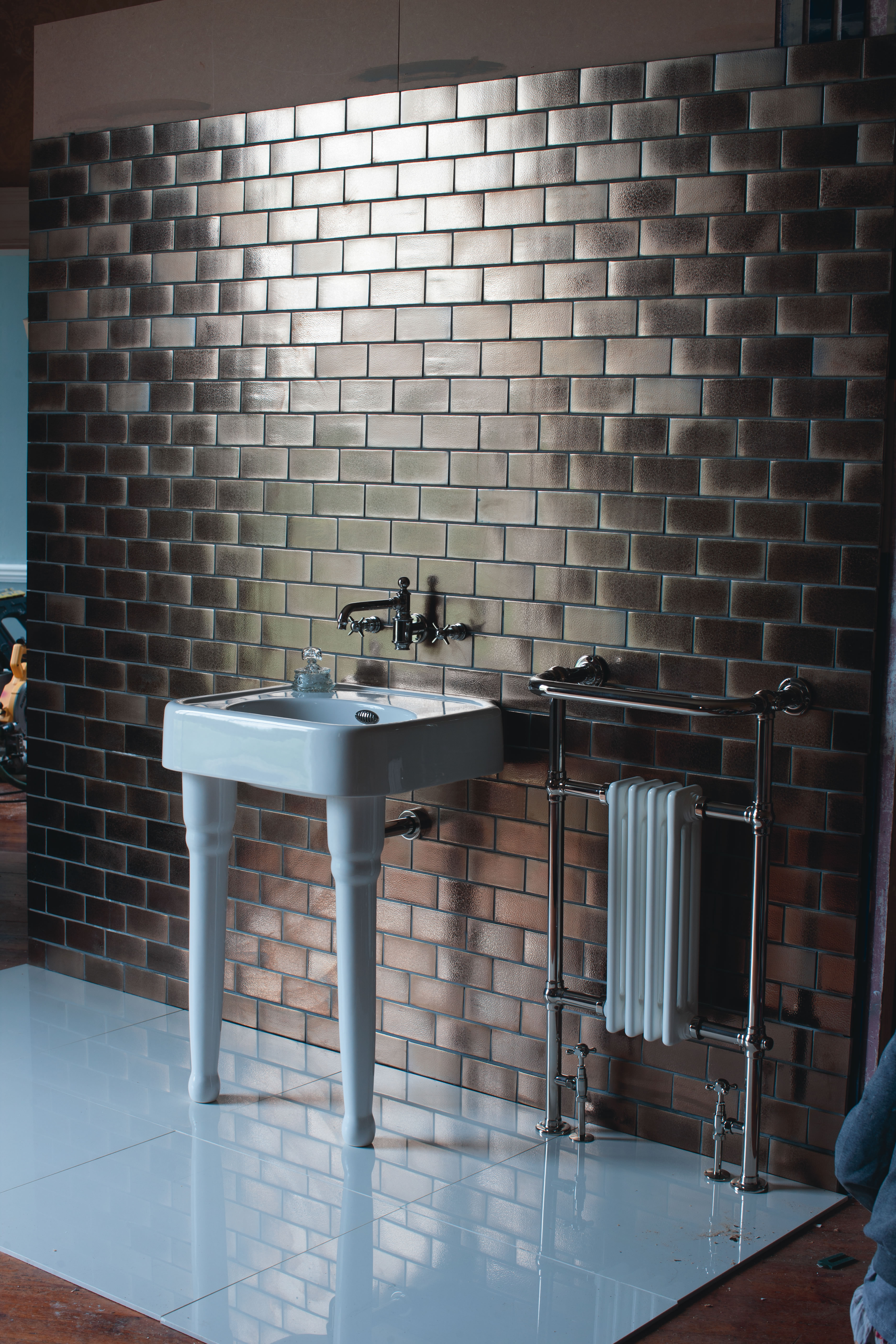

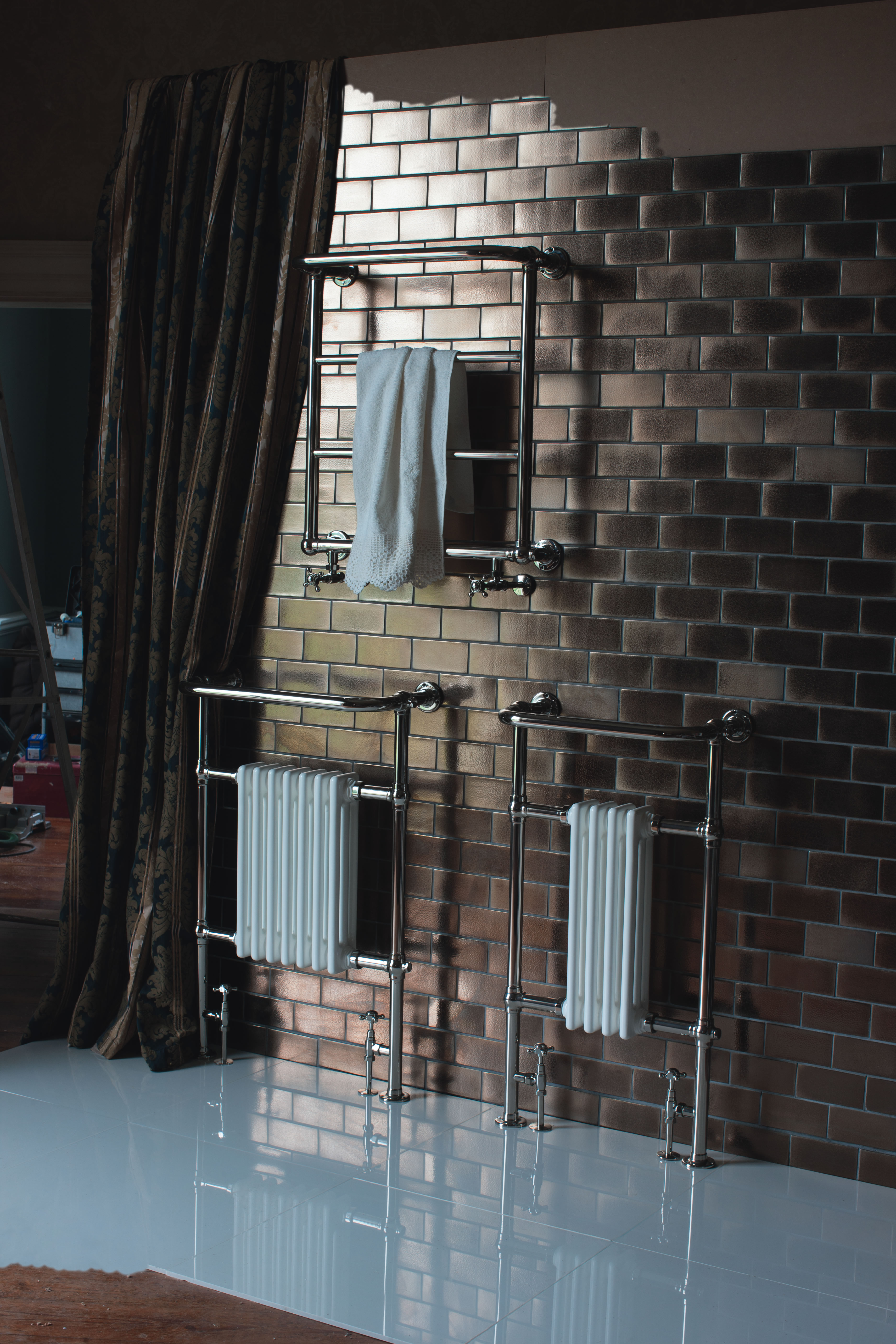

Bloomsbury radiator
Product Options
Radiator Options
White & Chrome
|
Black & Chrome
|
White & Nickel
|
White & Gold
|
White & Brushed Nickel
|
As Shown
| R2 NKL Bloomsbury - nickel |
Material
| R2 NKL - radiator - Steel |
Nett Weight
| R2 NKL - radiator - 14.25kg |
Gross Weight Including Packaging
| R2 NKL - radiator - 16.25kg |
Packed Dimension
| R2 NKL - 980 x 570 x 130 = 0.0726 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 442-1:2015 |
|
BS EN 2767:1991 |
|
BS EN 442-2:2015 |
|
BS EN 248:2002 |
Additional Information
|
320mm plumbing pipe centers |
|
Fill the radiator approximately 90% (4.5L) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system) |
|
Includes all brackets and fixings. |
|
High quality nickel plated finish. |
|
Valves are required. These are not included. |
|
Output:1518 BTUs/356 watts (△T=50℃) |
|
Designed to be plumbed into your central heating system. |
|
950mm High x 497mm Wide. 32mm tubes. |
|
Operating pressure up to 8 bar.(Certified by BEN N.L) |
|
Maximum working temperature:95°C |
|
Distance from wall to the rail is 235mm. |
Compatible Products
| BUR10 - 300W Summer electric heating kit for Trafalgar |
| R6 NKL - Arcade Angled radiator valve nickel |
| ARCSP31 | nickel finish set of complete fixings for R1 NKL, R2 NKL |
Downloads
-
2D CAD-File - DWG -
R2 NKL
(R2_Bloomsbury_20210802.dwg)
-
2D Drawing - PDF -
R2 NKL
(R2_Bloomsbury_20210802.pdf)
2D Drawing - PDF - R2 NKL
-
3D DWG - File - DWG
-
R2 NKL
(R2.dwg)
-
3D DXF - File - DXF
-
R2 NKL
(R2.dxf)
-
3D IGS - File - IGS
-
R2 NKL
(R2.igs)
-
3D RFA BIMM Objects - File - RFA
-
R2 NKL
(R2.rfa)
