Cleaver radiator
Product Options
finish
Chrome
|
Nickel
|
Gold
|
Brushed Nickel
|
As Shown
| R3 BNKL Cleaver Brushed Nickel |
Material
| R3 BNKL - radiator - Steel |
Nett Weight
| R3 BNKL - radiator - 5.6kg |
Gross Weight Including Packaging
| R3 BNKL - radiator - 6.6kg |
Packed Dimension
| R3 BNKL - 700 x 630 x 170 = 0.075 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 442-1:2015 |
|
BS EN 442-2:2015 |
|
BS EN 248:2002 |
Additional Information
|
The radiator can be installed and connected to a central heating system. |
|
THE TOWEL RAIL IS NOT SUITABLE FOR USE WITH DUAL FUEL ELEMENTS. |
|
440mm plumbing pipe centers |
|
Distance from wall to the rail is 110mm. |
|
Includes all brackets and fixings. |
|
High quality plated finish. |
|
Valves are required. These are not included. |
|
Output:717 BTUs /164 watts (△T=50℃) |
|
Diameter of tubes is 32mm. |
|
Operating pressure up to 8 bar.(Certified by BEN N.L) |
|
Maximum working temperature:95℃ |
Compatible Products
| R6 CHR - Angled radiator valves chrome |
| BUR8 - 100W electric heating kit for for Berkeley |
| SP801BNKL | air valve for R1 BNKL, R2 BNKL, R3 BNKL, R4 BNKL |
| SP555BNKL | complete set of fixings for R3 BNKL |
Downloads
-
2D CAD-File - DWG -
R3 BNKL
(R3 GOLD_BNKL-230203.dwg)
-

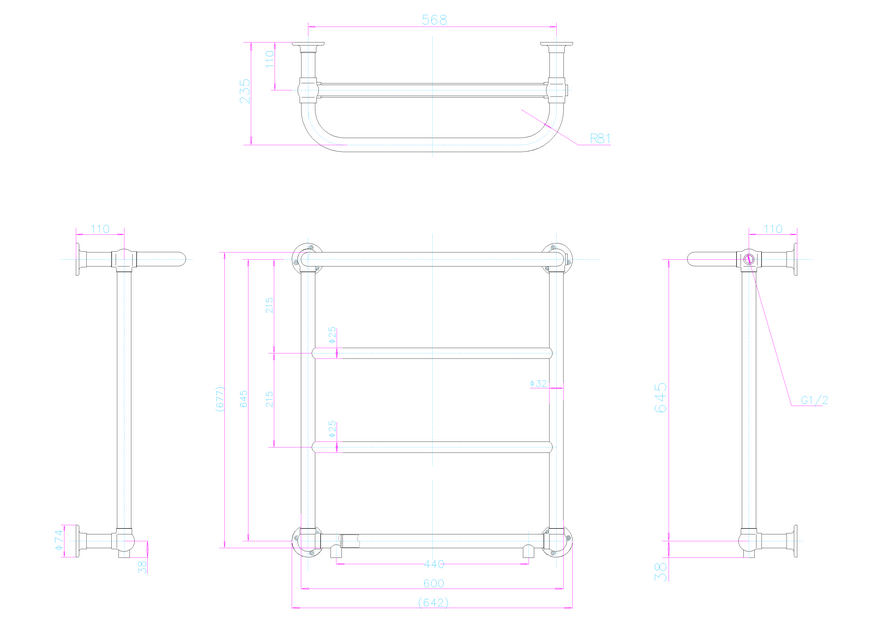

2D Drawing - PDF -
R3 BNKL
(R3 GOLD_BNKL-230203.pdf)
2D Drawing - PDF - R3 BNKL
-
3D DWG - File - DWG
-
R3 BNKL
(R3.dwg)
-
3D DXF - File - DXF
-
R3 BNKL
(R3.dxf)
-
3D RFA BIMM Objects - File - RFA
-
R3 BNKL
(R3.rfa)
-
3D IGS - File - IGS
-
R3 BNKL
(R3 GOLD_BNKL.igs)
