Cleaver radiator
Product Options
finish
Chrome
|
Nickel
|
Gold
|
Brushed Nickel
|
As Shown
| R3 NKL − |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 442-1:2015 |
|
BS EN 2767:1991 |
|
BS EN 442-2:2015 |
|
BS EN 248:2002 |
Additional Information
|
Includes all brackets and fixings. |
|
677mm High x 600mm Wide. 32mm tubes. |
|
High quality nickel plated finish. |
|
Valves are required. These are not included. |
|
Designed to be plumbed into your central heating system. |
|
Output:717 BTUs /164 watts (△T=50℃) |
|
Operating pressure up to 8 bar.(Certified by BEN N.L) |
|
Distance from wall to the center of rail is 235mm. |
|
Maximum working temperature:95℃ |
|
440mm plumbing pipe centers |
|
Fill the radiator approximately 90% (2.0L) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system) |
Compatible Products
| BUR8 - 100W electric heating kit for for Berkeley |

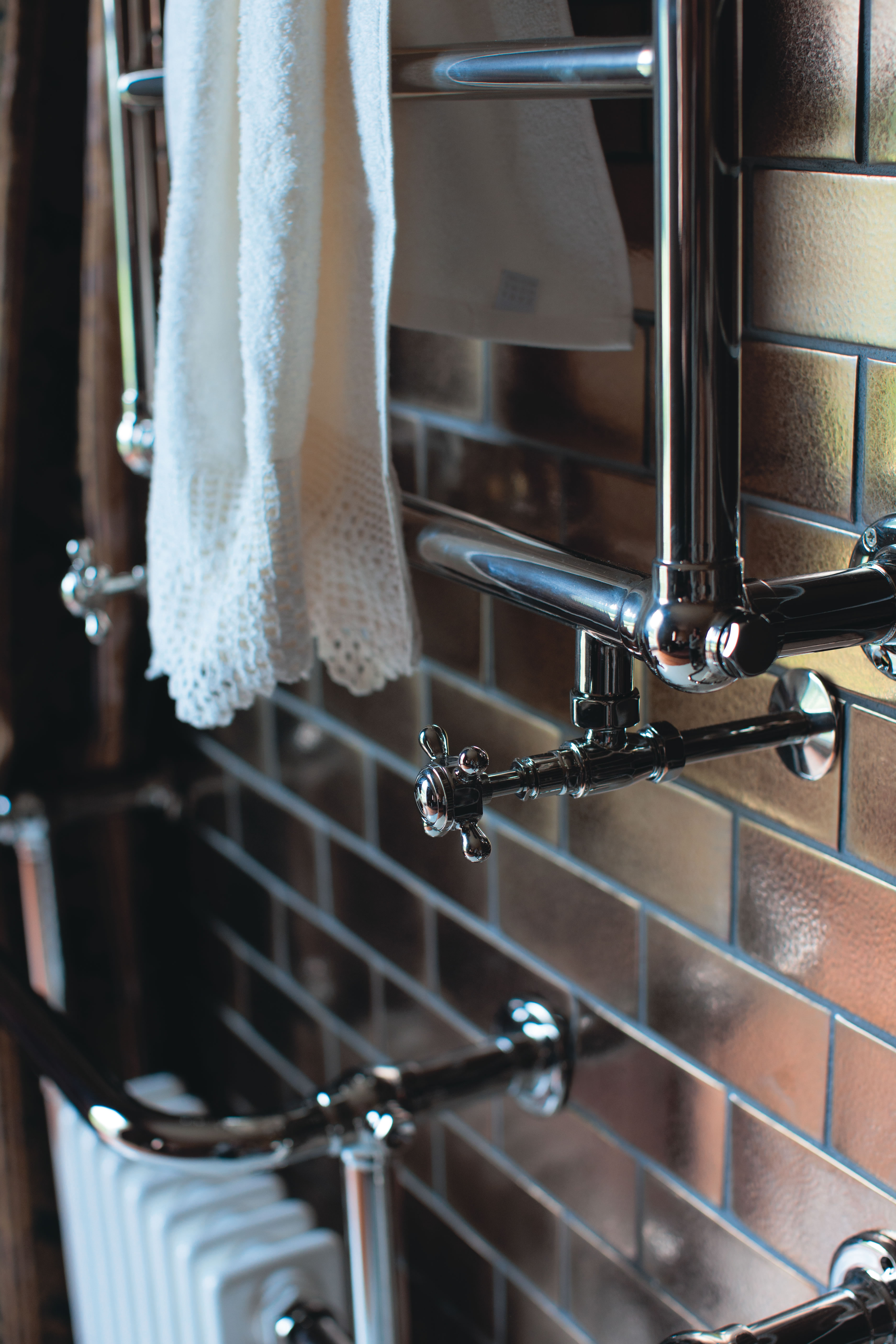

| R6 NKL - Arcade Angled radiator valve nickel |
| ARCSP54 | nickel finish set of complete fixings for R3 NKL |
Downloads
-
2D CAD-File - DWG -
R3 NKL
(R3_Cleaver_20210802.dwg)
-
2D Drawing - PDF -
R3 NKL
(R3_Cleaver_20210802.pdf)
2D Drawing - PDF - R3 NKL
-
3D DWG - File - DWG
-
R3 NKL
(R3.dwg)
-
3D DXF - File - DXF
-
R3 NKL
(R3.dxf)
-
3D IGS - File - IGS
-
R3 NKL
(R3.igs )
-
3D RFA BIMM Objects - File - RFA
-
R3 NKL
(R3.rfa)
