Edwardian 56cm basin
Product Options
Colour options
mounting options
shelf options
|
White
|
with pedestal
|
with regal pedestal
|
with semi pedestal
|
with wash stand
|
with brushed nickel wash stand
|
with brushed nickel extended wash stand
|
|
no optional shelf
|
with optional brushed nickel shelf
|

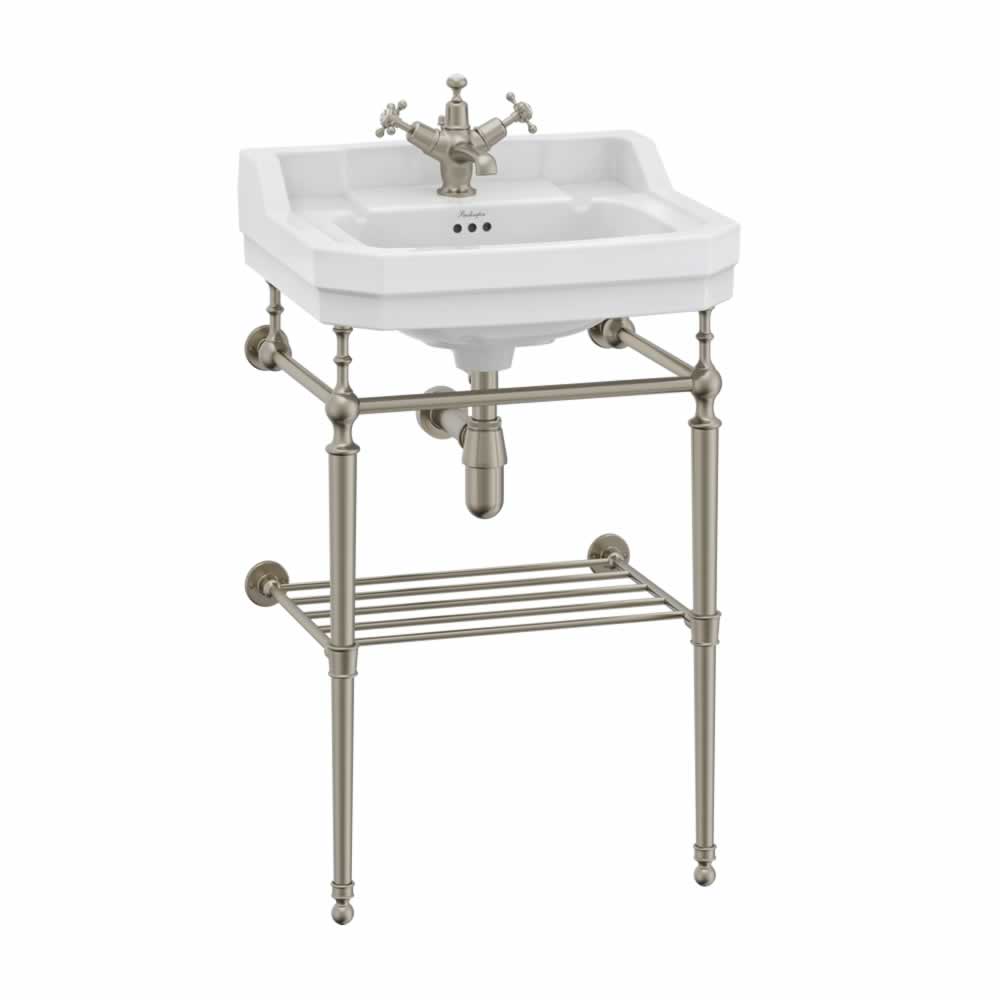

As Shown
| B41TH Edwardian 56cm basin one tap hole |
| T22ABNKL 56cm/58cm Basin Wash Stand Brushed Nickel |
| T62BNKL Regal Designer Basin Stand Extension Kit Brushed Nickel |
Gross Weight Including Packaging
| B41TH - basin - 20.8kg |
| T22ABNKL - - 4.12kg |
| T62BNKL - - 0.51kg |
Packed Dimension
| B41TH - 577 x 487 x 290 = 0.0815 m3 |
| T22ABNKL - 710 x 300 x 125 = 0.0266 m3 |
| T62BNKL - 120 x 100 x 150 = 0.0018 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
The 2 legs are held securely in place by 2 floor mounted nipples |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W14 - Traditional basin bottle trap |
| W18 - Flip-top basin waste slotted |
| SP843BNKL | adjust Screw of Bur Basin Stands BNick |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP824BNKL | floor Fixings Bur Basin Stands BrNickel |
| SP838BNKL | foot for Bur Basin Stands in Bru Nickel |
| SP1587 | grub screw for Burlington basin stands |
| SP225 | rubber washer for basin stands |
Downloads
- Instructions - PDF - T22ABNKL (English)
- Instructions - PDF - T62BNKL (English)
- Instructions - PDF - T22ABNKL (French)
- Instructions - PDF - T62BNKL (French)
-
3D STP - File - STP
-
B4 1TH T22A BNKL T62 BNKL
(B4 1TH.stp)
-
3D IGS - File - IGS
-
B4 1TH T22A BNKL T62 BNKL
(T22A.igs)
-
3D STP - File - STP
-
B4 1TH T22A BNKL T62 BNKL
(T62.stp)
