Edwardian 56cm basin
Product Options
Colour options
mounting options
shelf options
|
White
|
with pedestal
|
with regal pedestal
|
with semi pedestal
|
with wash stand
|
with brushed nickel wash stand
|
with brushed nickel extended wash stand
|
|
no optional shelf
|

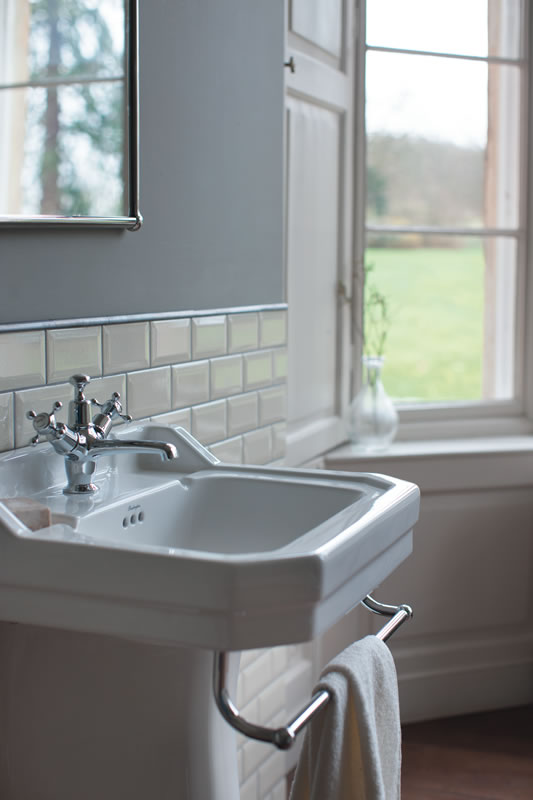

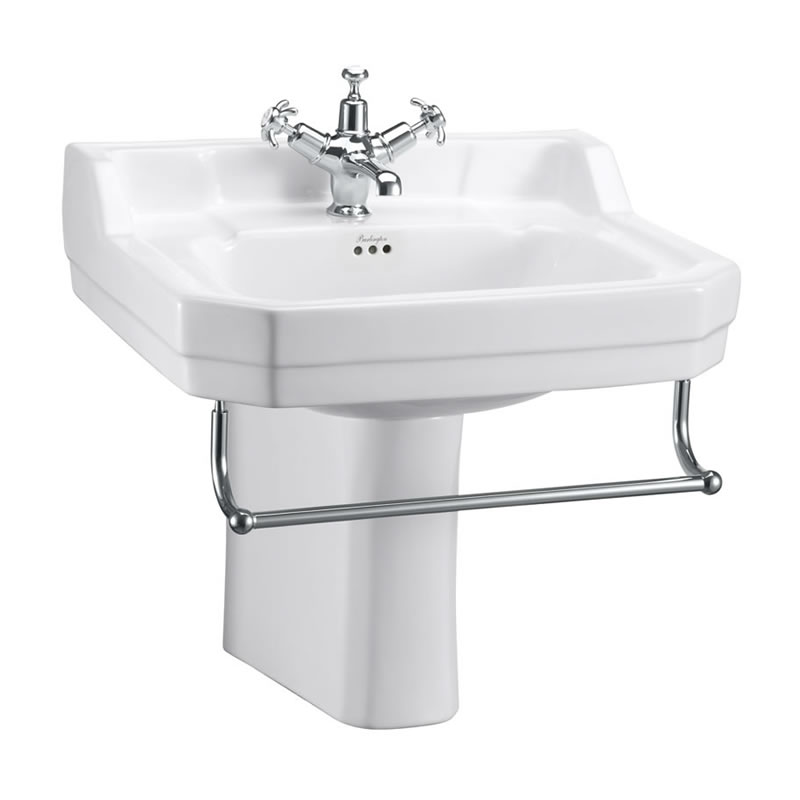

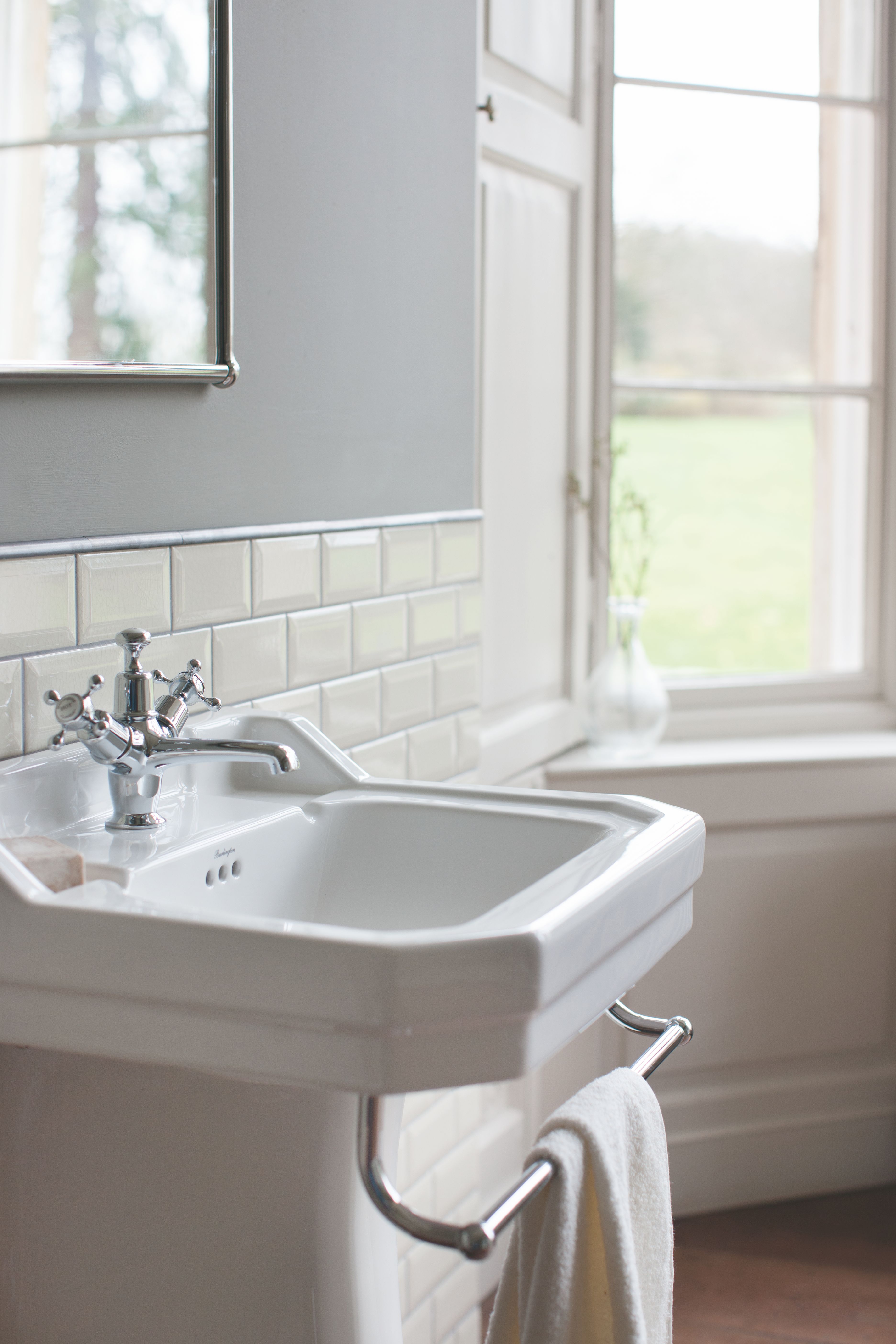

As Shown
| T1CHR 56cm towel rail chrome |
| P8 Semi pedestal |
| B41TH Edwardian 56cm basin one tap hole |
Gross Weight Including Packaging
| T1CHR - towel rail - 0.72kg |
| P8 - pedestal - 10.34kg |
| B41TH - basin - 20.8kg |
Packed Dimension
| T1CHR - 535 x 125 x 100 = 0.0067 m3 |
| P8 - 405 x 230 x 310 = 0.0289 m3 |
| B41TH - 577 x 487 x 290 = 0.0815 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
3TH basins are not compatible with semi pedestal P8. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP96 | fixing for Semi Pedestal |
| SP122 | fixing for towel rail (pair) |
| SP618 | the set of 4 grub screws for T1CHR, T2CHR, T3CHR, T6CHR, T8CHR |
Downloads
- Instructions - PDF - T1CHR (English)
- Instructions - PDF - P8 (English)
- Instructions - PDF - P8 (French)
- Instructions - PDF - T1CHR (French)
-
2D CAD-File - DWG -
B4 1TH T1 CHR P8
(B4 1TH T1 CHR P8_2020 11 04.dwg)
-

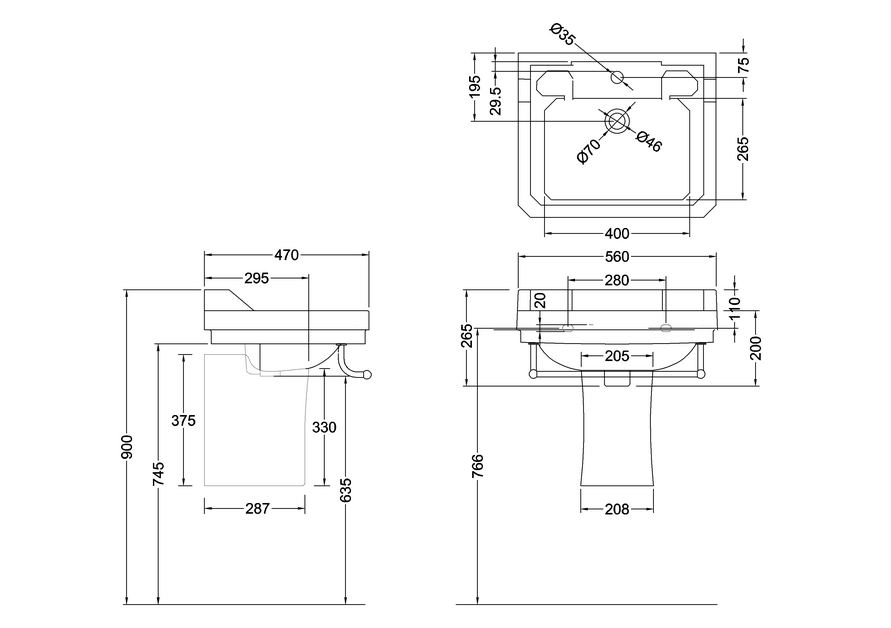

2D Drawing - PDF -
B4 1TH T1 CHR P8
(B4 1TH T1 CHR P8_2020 11 04.pdf)
2D Drawing - PDF - B4 1TH T1 CHR P8
