Edwardian Round basin
Product Options
mounting options
pedestal options
with pedestal
|
with pedestal & towel rail
|
with wash stand
|
with brushed nickel wash stand
|
with brushed nickel extended wash stand
|
|
standard
|
As Shown
| B6 1TH Edwardian round 56cm basin one tap hole |
| T24A BNKL 56cm Round Basin Wash Stand Brushed Nickel |
| T62 BNKL Regal Designer Basin Stand Extension Kit Brushed Nickel |
Gross Weight Including Packaging
| B6 1TH - basin - 18kg |
| T24A BNKL - - 4.02kg |
| T62 BNKL - - 0.51kg |
Packed Dimension
| B6 1TH - 625 x 520 x 320 = 0.104 m3 |
| T24A BNKL - 730 x 565 x 125 = 0.0516 m3 |
| T62 BNKL - 120 x 100 x 150 = 0.0018 m3 |
Tap Hole Options
| Available with one (1TH) or two (2TH) tap holes |
Guarantee
Standards Information
|
BS EN 14688:2006 |
|
BS EN 31:2011 |
|
Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To order the correct tap hole (TH) configuration simply use 1TH or 2TH at the end of the basin product code. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
|
Not suitable for use on furniture. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W14 - Traditional basin bottle trap |
| W18 - Flip-top basin waste slotted |
| SP843BNKL | adjust Screw of Bur Basin Stands BNick |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP824BNKL | floor Fixings Bur Basin Stands BrNickel |
| SP838BNKL | foot for Bur Basin Stands in Bru Nickel |
| SP1587 | grub screw for Burlington basin stands |
| SP225 | rubber washer for basin stands |
Downloads
- Instructions - PDF - T24A BNKL (English)
- Instructions - PDF - T62 BNKL (English)
- Instructions - PDF - T24A BNKL (French)
- Instructions - PDF - T62 BNKL (French)
-
2D CAD-File - DWG -
B6 1TH T24A BNKL T62 BNKL
(B6 1TH_T24A CHR_T62_20201202.dwg)
-

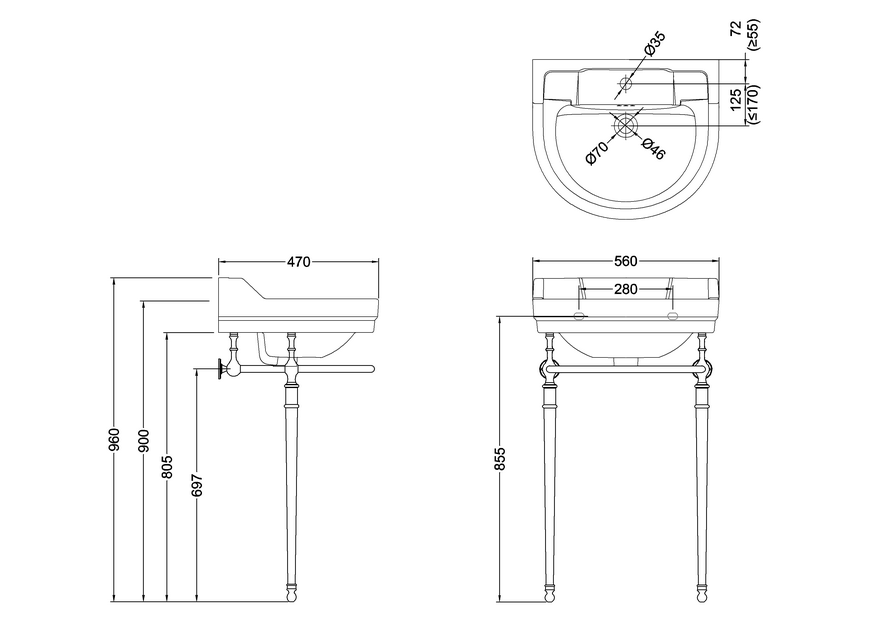

2D Drawing - PDF -
B6 1TH T24A BNKL T62 BNKL
(B6 1TH_T24A CHR_T62_20201202.pdf)
2D Drawing - PDF - B6 1TH T24A BNKL T62 BNKL
-
3D DWG - File - DWG
-
B6 1TH T24A BNKL T62 BNKL
(2685 with T62.dwg)
-
3D RFA BIMM Objects - File - RFA
-
B6 1TH T24A BNKL T62 BNKL
(2685 with T62.rfa)
