Edwardian Round basin
Product Options
mounting options
pedestal options
|

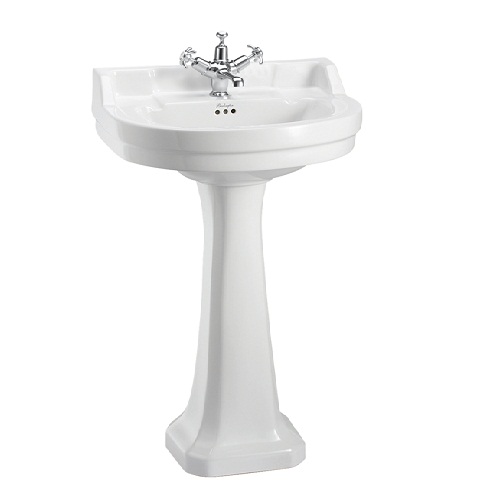

with pedestal
|
with pedestal & towel rail
|

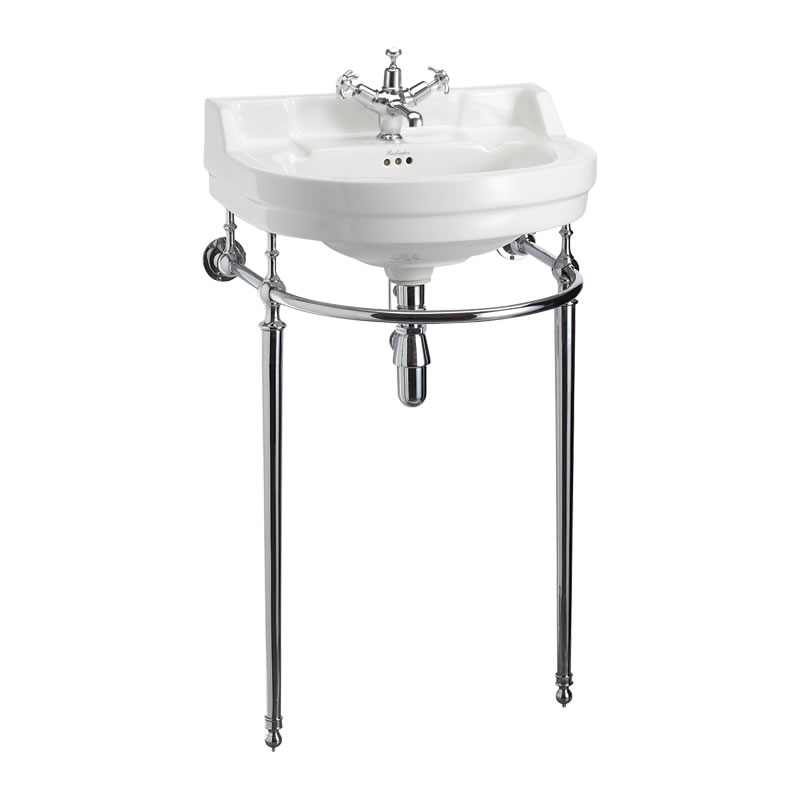

with wash stand
|

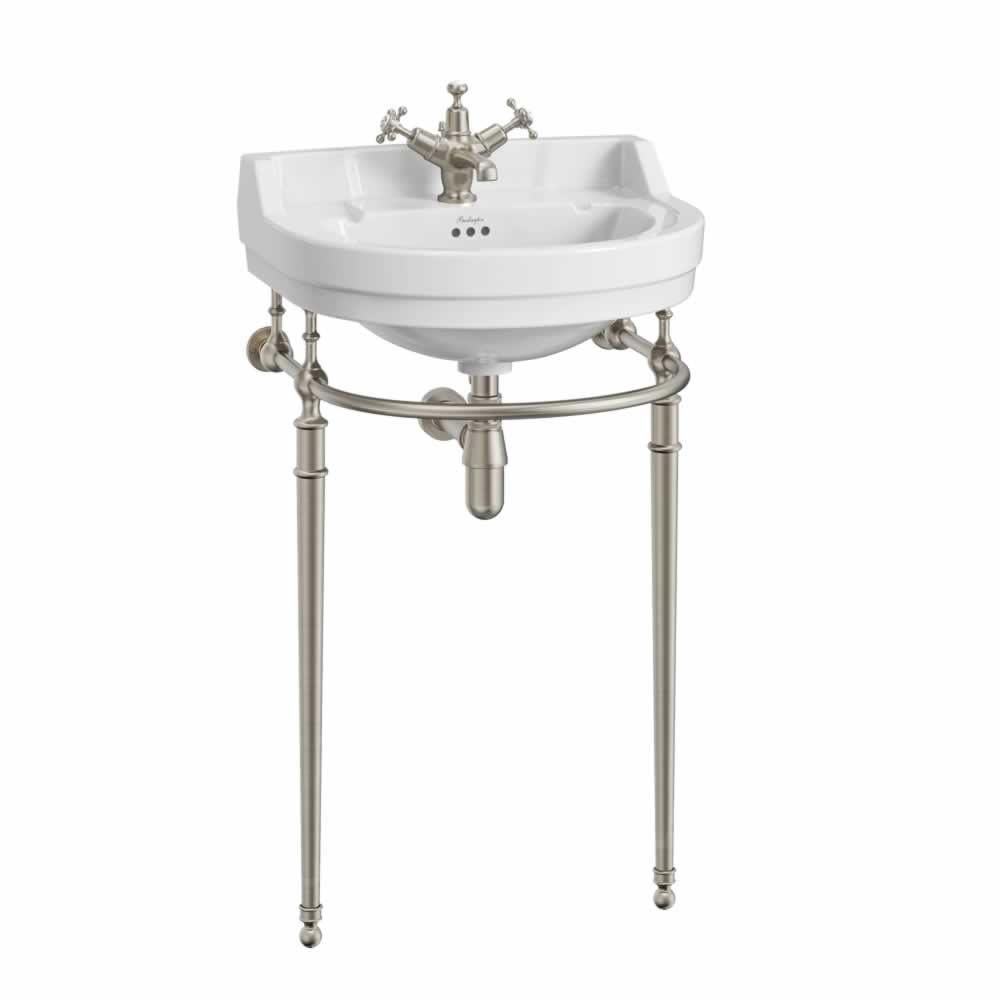

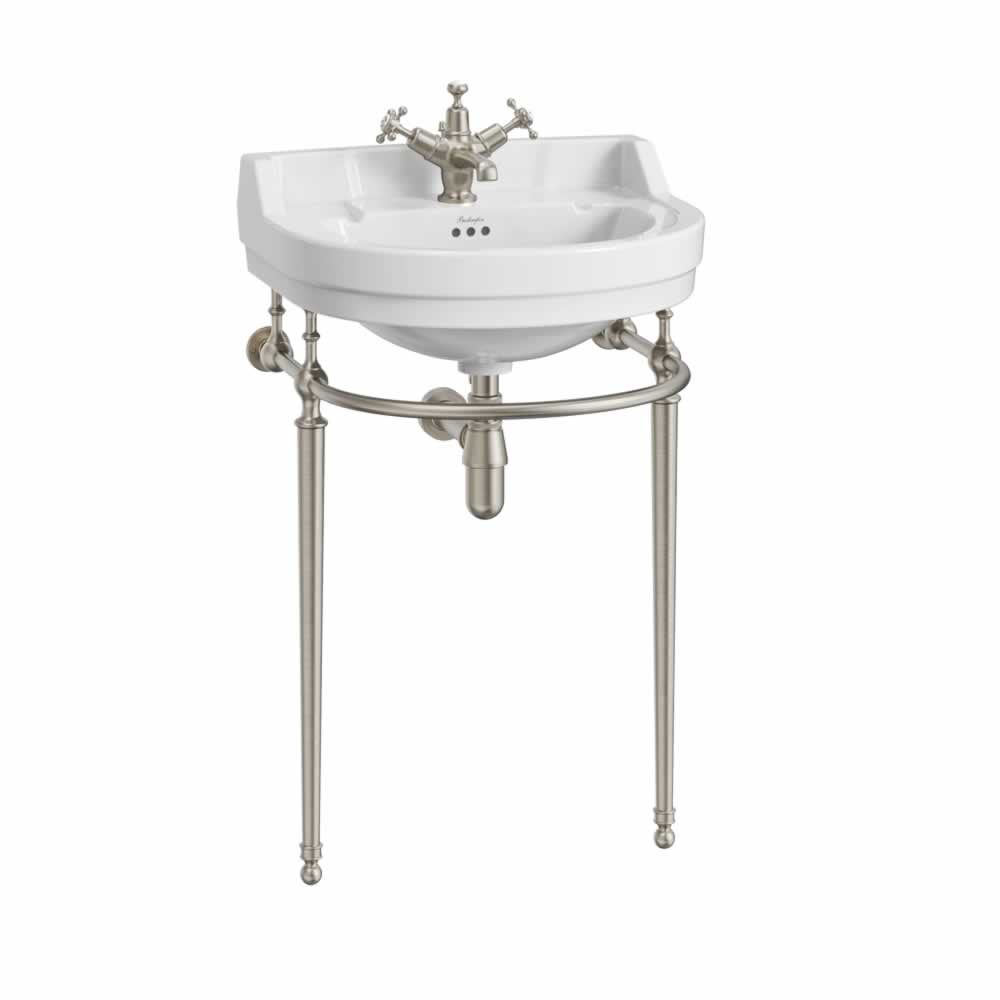

with brushed nickel wash stand
|
with brushed nickel extended wash stand
|
|
standard
|
regal
|

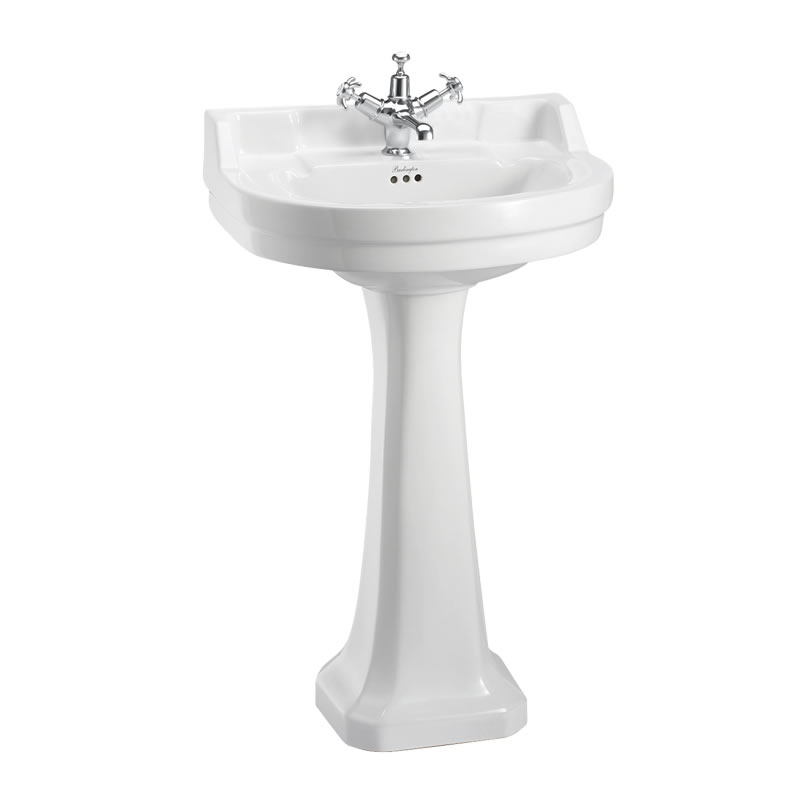

As Shown
| B61TH Edwardian round 56cm basin one tap hole |
| P1 Standard pedestal |
Nett Weight
| B61TH - basin - 16.5kg |
| P1 - pedestal - 13.3kg |
Gross Weight Including Packaging
| B61TH - basin - 18kg |
| P1 - pedestal - 15.15kg |
Packed Dimension
| B61TH - 625 x 520 x 320 = 0.104 m3 |
| P1 - 702 x 307 x 270 = 0.0582 m3 |
Tap Hole Options
| Available with one(1TH), two(2TH) or three(3TH) tap holes. |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH or 2TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
Not suitable for use on furniture. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| T4 CHR - 56cm Round towel rail chrome |
| SP1714 | basin fixings for Burlington & Britton basins |
Downloads
-
2D CAD-File - DWG -
P1 B6 1TH
(P1_B6_1TH_20201130.dwg)
-

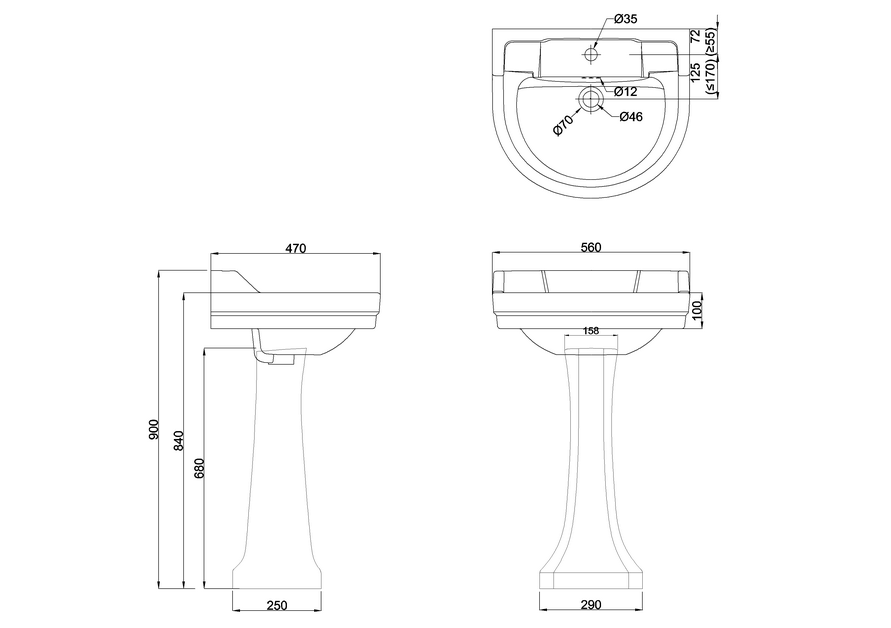

2D Drawing - PDF -
P1 B6 1TH
(P1_B6_1TH_20201130.pdf)
2D Drawing - PDF - P1 B6 1TH
-
3D DWG - File - DWG
-
P1 B6 1TH
(2677.dwg)
-
3D DXF - File - DXF
-
P1 B6 1TH
(2677.dxf)
-
3D IGS - File - IGS
-
P1 B6 1TH
(2677.igs)
-
3D RFA BIMM Objects - File - RFA
-
P1 B6 1TH
(2677.rfa)
-

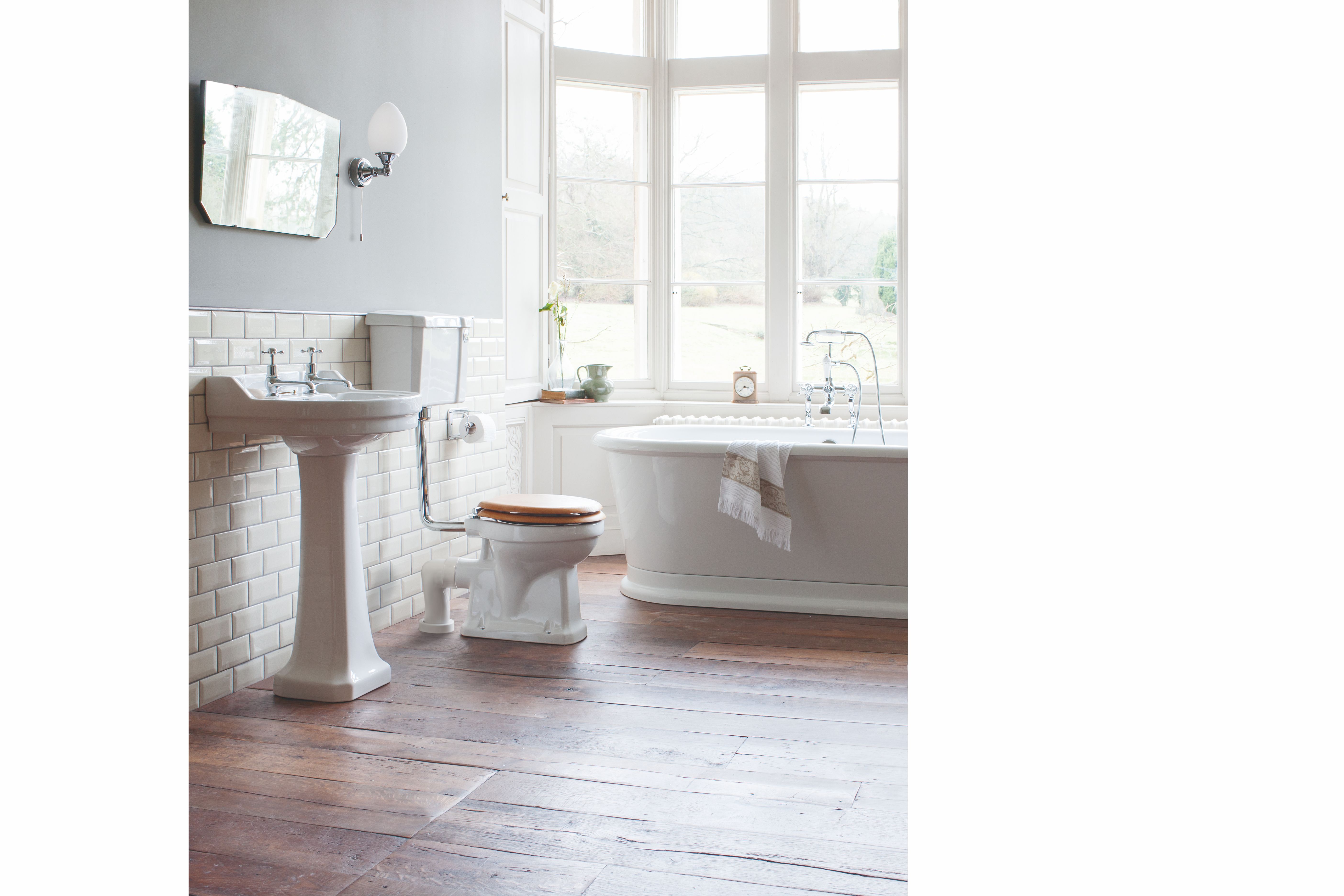

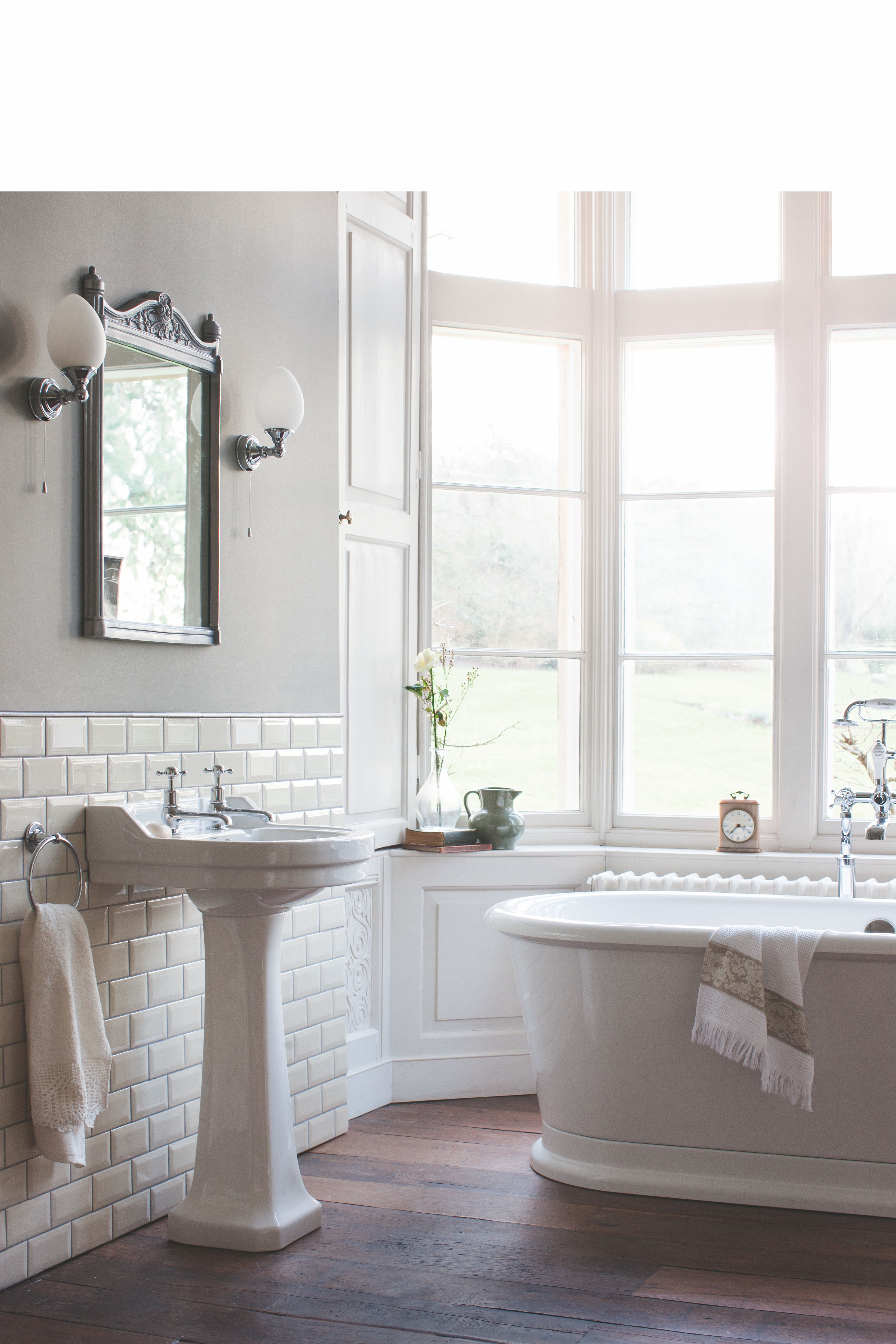

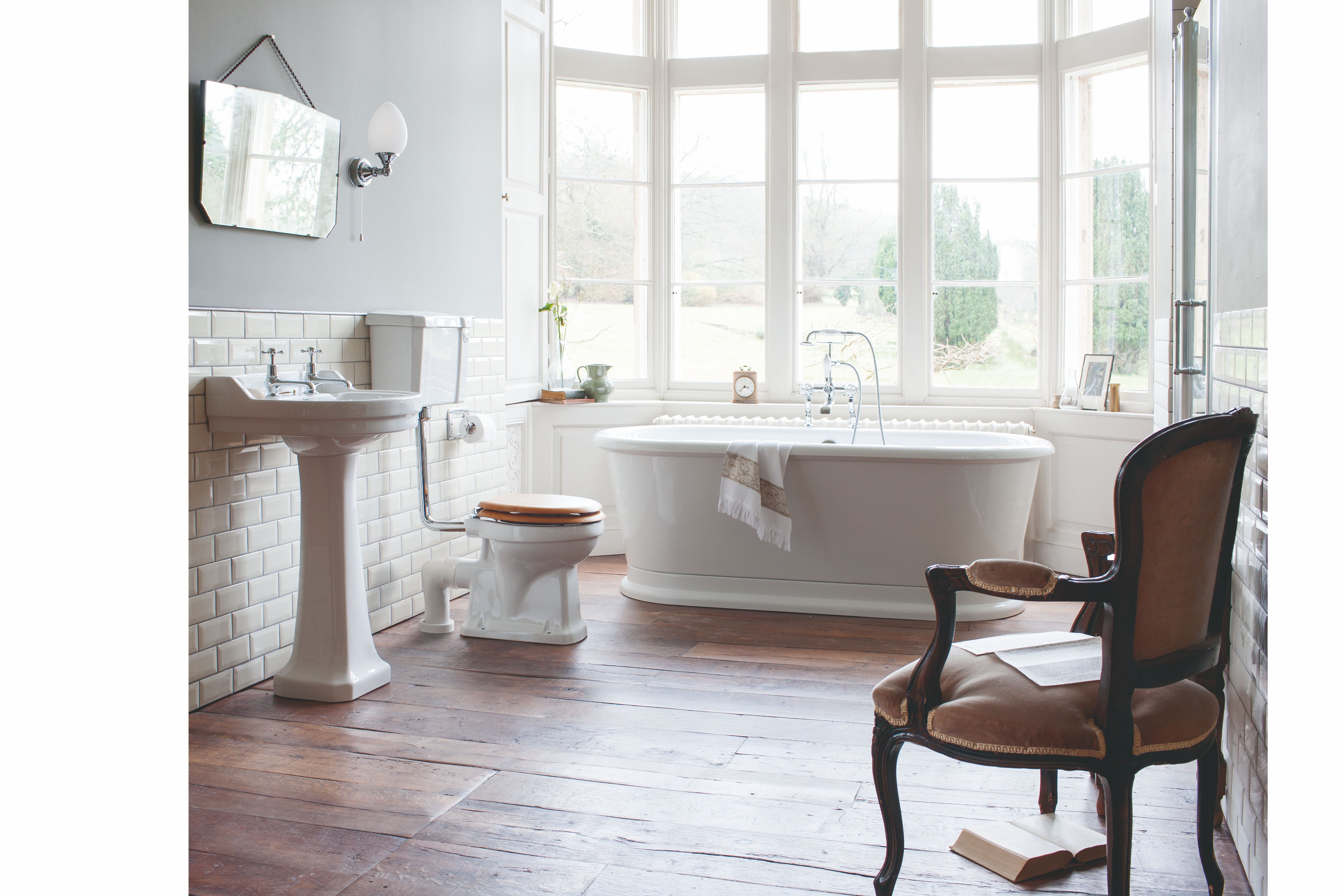

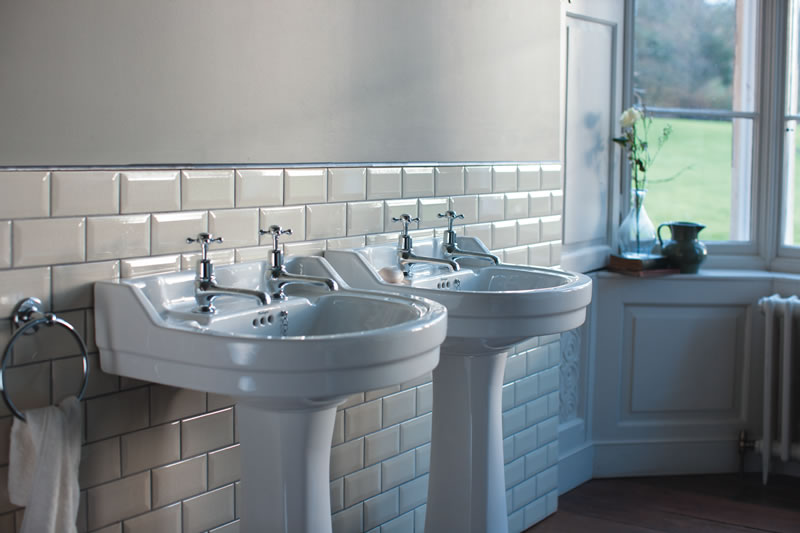

Lifestyle image 1 -
tiff
jpg -

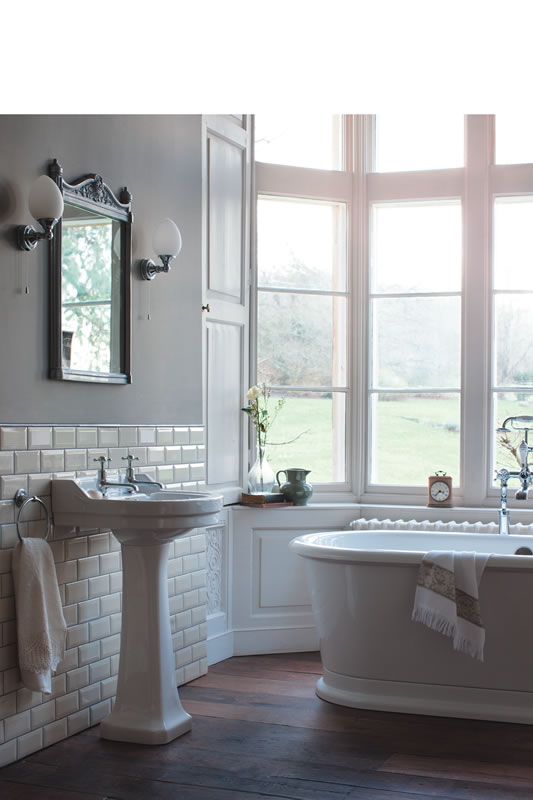

Lifestyle image 2 -
tiff
jpg -

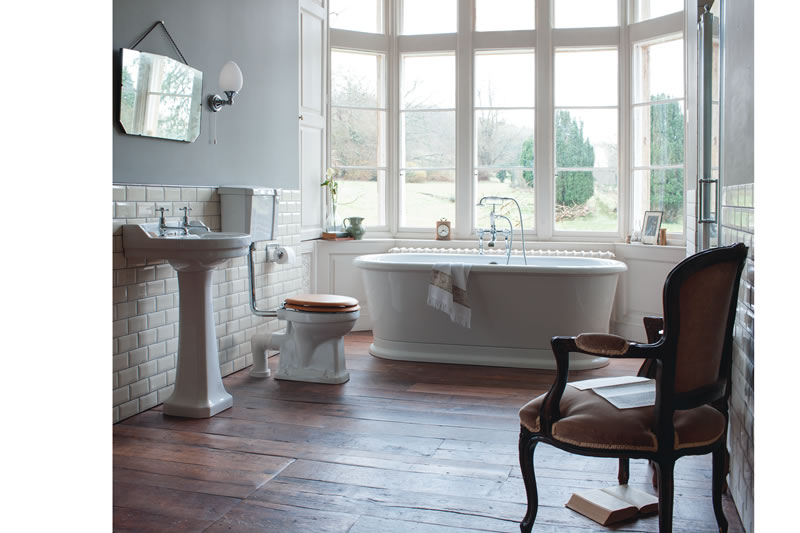

Lifestyle image 3 -
tiff
jpg -

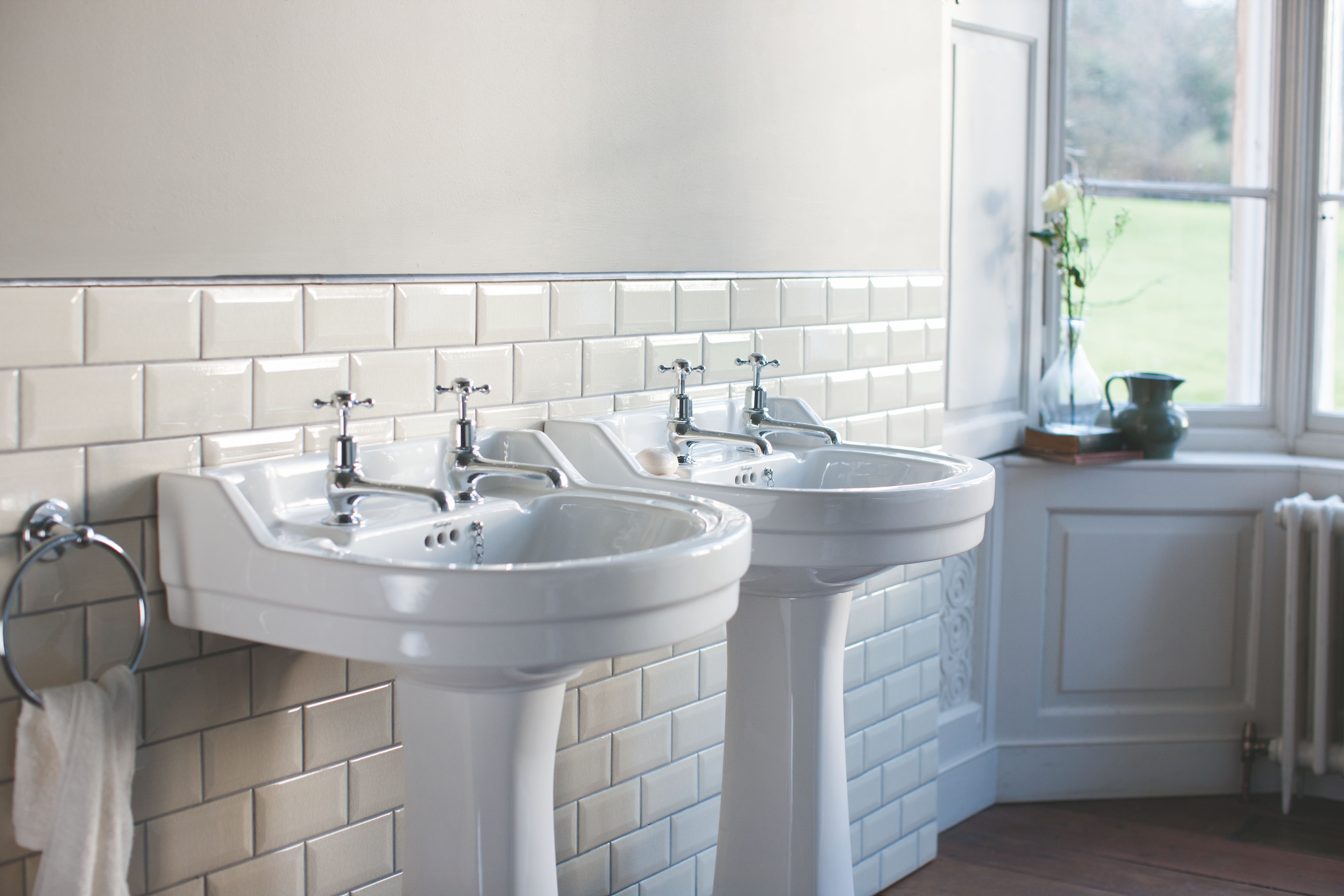

Lifestyle image 4 -
tiff
jpg -

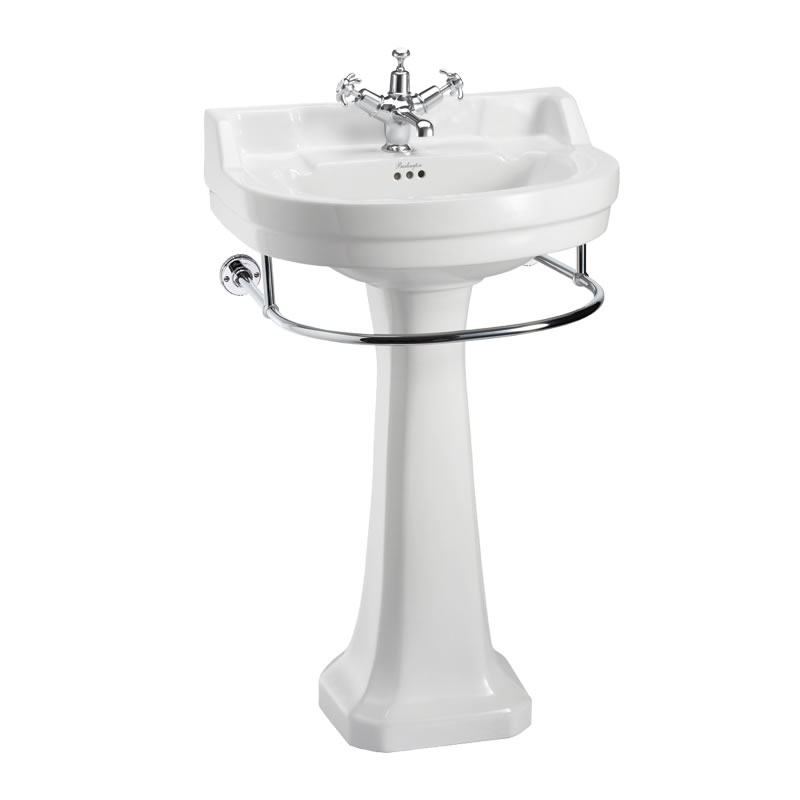

Product image 1 -
