Contemporary 58cm basin
Product Options
mounting options
shelf options
with pedestal
|
with regal pedestal
|
with semi pedestal
|
with wash stand
|
with brushed nickel wash stand
|
with brushed nickel extended wash stand
|
|
no optional shelf
|
with optional brushed nickel shelf
|

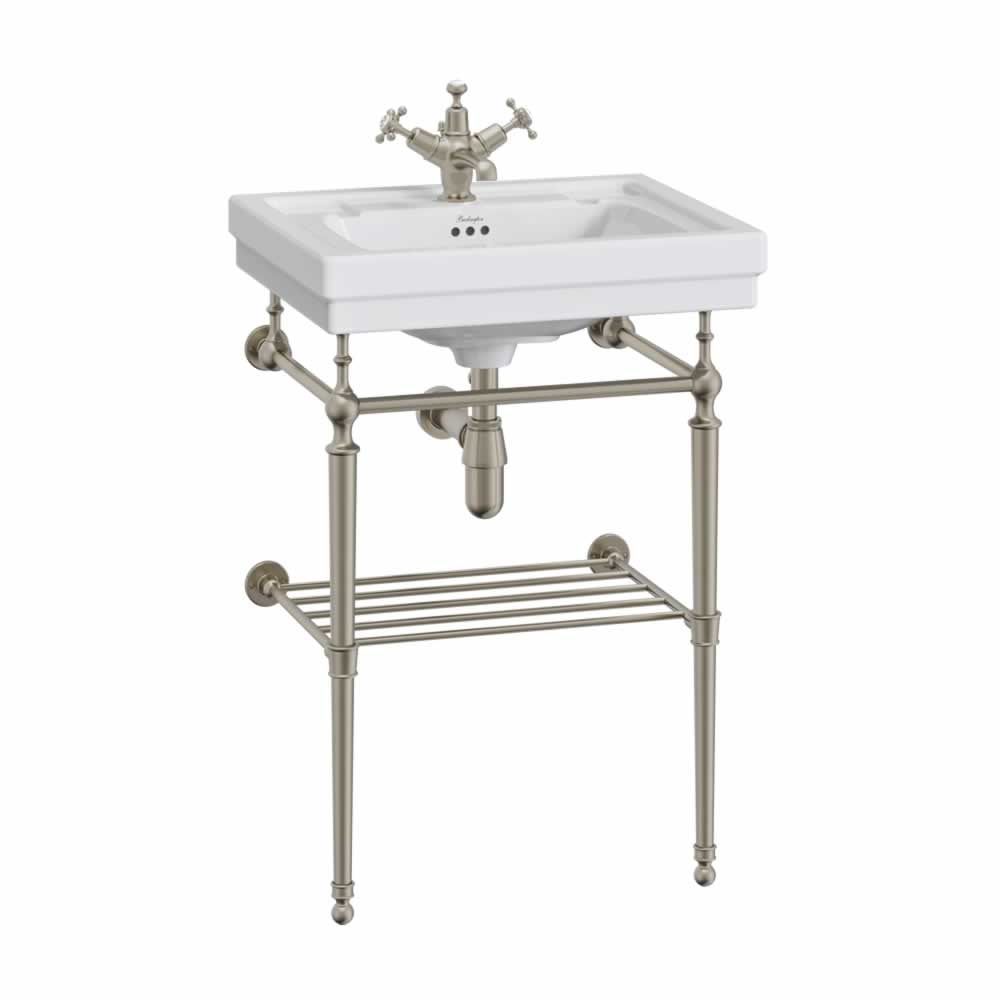

As Shown
| B11TH Contemporary 57.5cm basin one tap hole |
| T22ABNKL 56cm/58cm Basin Wash Stand Brushed Nickel |
Nett Weight
| B11TH - basin - 17.35kg |
| T22ABNKL - - 3kg |
Gross Weight Including Packaging
| B11TH - basin - 19.35kg |
| T22ABNKL - - 4.12kg |
Packed Dimension
| B11TH - 607 x 487 x 220 = 0.065 m3 |
| T22ABNKL - 710 x 300 x 125 = 0.0266 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W14 - Traditional basin bottle trap |
| W18 - Flip-top basin waste slotted |
| SP843BNKL | adjust Screw of Bur Basin Stands BNick |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP824BNKL | floor Fixings Bur Basin Stands BrNickel |
| SP838BNKL | foot for Bur Basin Stands in Bru Nickel |
| SP1587 | grub screw for Burlington basin stands |
| SP225 | rubber washer for basin stands |
Downloads
-
2D CAD-File - DWG -
B1 1TH T22A BNKL
(B1 1TH T22A CHR _LD.dwg)
-

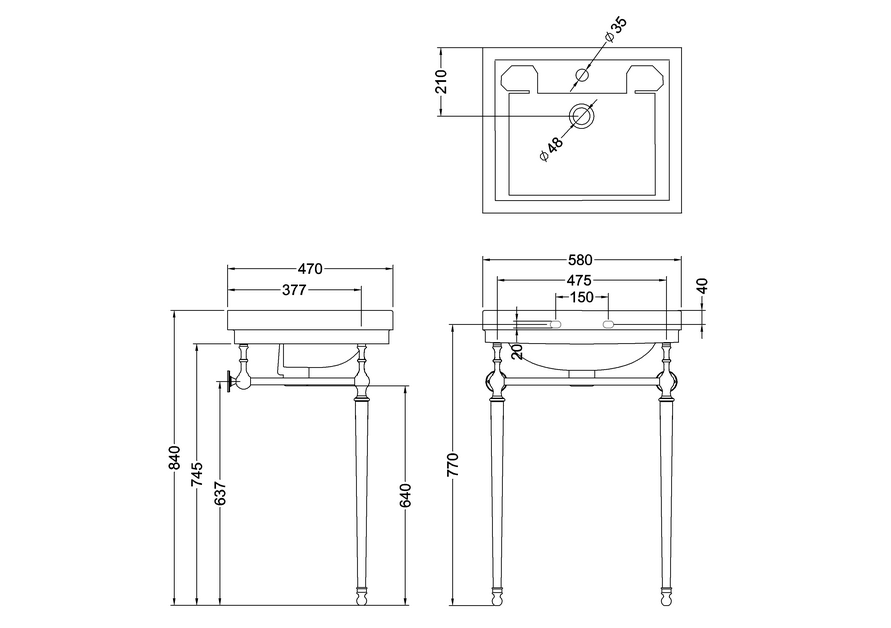

2D Drawing - PDF -
B1 1TH T22A BNKL
(B1 1TH T22A CHR _LD.pdf)
2D Drawing - PDF - B1 1TH T22A BNKL
-
3D DWG - File - DWG
-
B1 1TH T22A BNKL
(2701.dwg)
-
3D DXF - File - DXF
-
B1 1TH T22A BNKL
(2701.dxf)
-
3D IGS - File - IGS
-
B1 1TH T22A BNKL
(2701.igs)
-
3D RFA BIMM Objects - File - RFA
-
B1 1TH T22A BNKL
(2701.rfa)
