Contemporary 58cm basin
Product Options
mounting options
shelf options
with pedestal
|
with regal pedestal
|
with semi pedestal
|
with wash stand
|
with brushed nickel wash stand
|
with brushed nickel extended wash stand
|
|
no optional shelf
|
As Shown

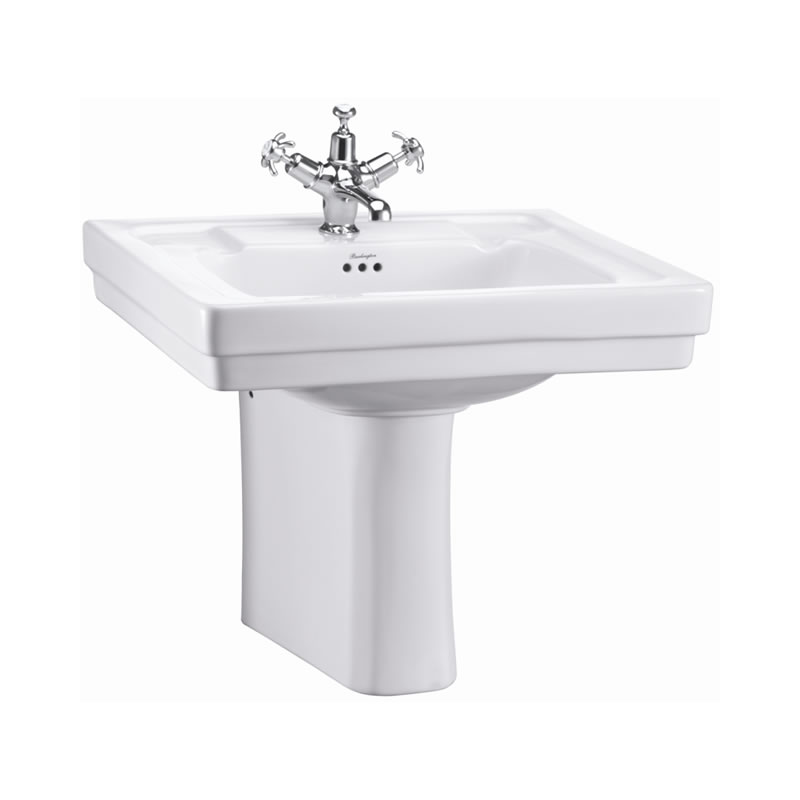

| B11TH Contemporary 57.5cm basin one tap hole |
| P8 Semi pedestal |
Nett Weight
| B11TH - basin - 17.35kg |
| P8 - pedestal - 9.5kg |
Gross Weight Including Packaging
| B11TH - basin - 19.35kg |
| P8 - pedestal - 10.34kg |
Packed Dimension
| B11TH - 607 x 487 x 220 = 0.065 m3 |
| P8 - 405 x 230 x 310 = 0.0289 m3 |
Tap Hole Options
| Available with one (1TH) or two (2TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
3TH basins are not compatible with semi pedestal P8. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| T2 CHR - 58cm towel rail chrome |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP96 | fixing for Semi Pedestal |
Downloads
-
2D CAD-File - DWG -
B1 1TH P8
(B1 1TH P8 _LD.dwg)
-

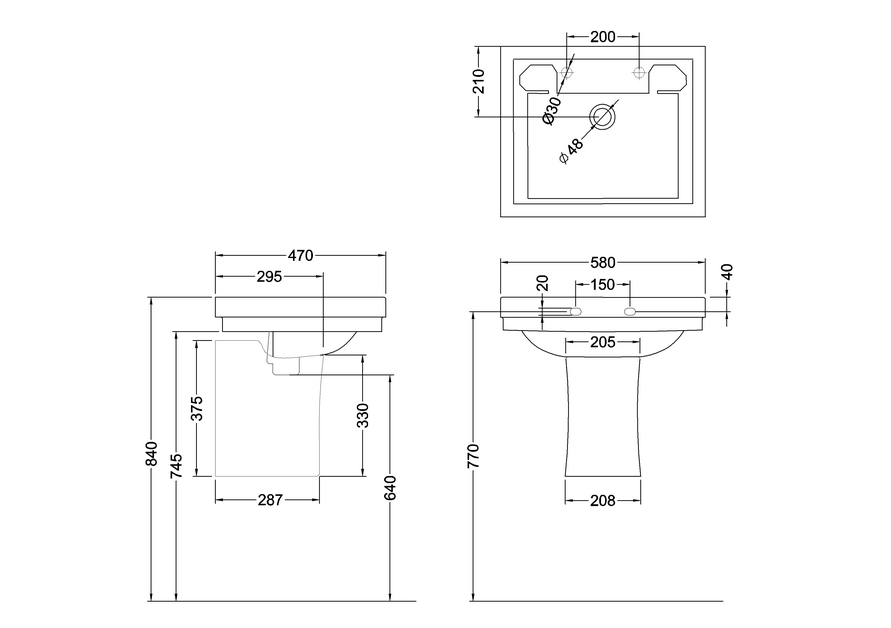

2D Drawing - PDF -
B1 1TH P8
(B1 1TH P8 _LD.pdf)
2D Drawing - PDF - B1 1TH P8
-
3D DWG - File - DWG
-
B1 1TH P8
(2699.dwg)
-
3D DXF - File - DXF
-
B1 1TH P8
(2699.dxf)
-
3D IGS - File - IGS
-
B1 1TH P8
(2699.igs)
-
3D RFA BIMM Objects - File - RFA
-
B1 1TH P8
(2699.rfa)
-

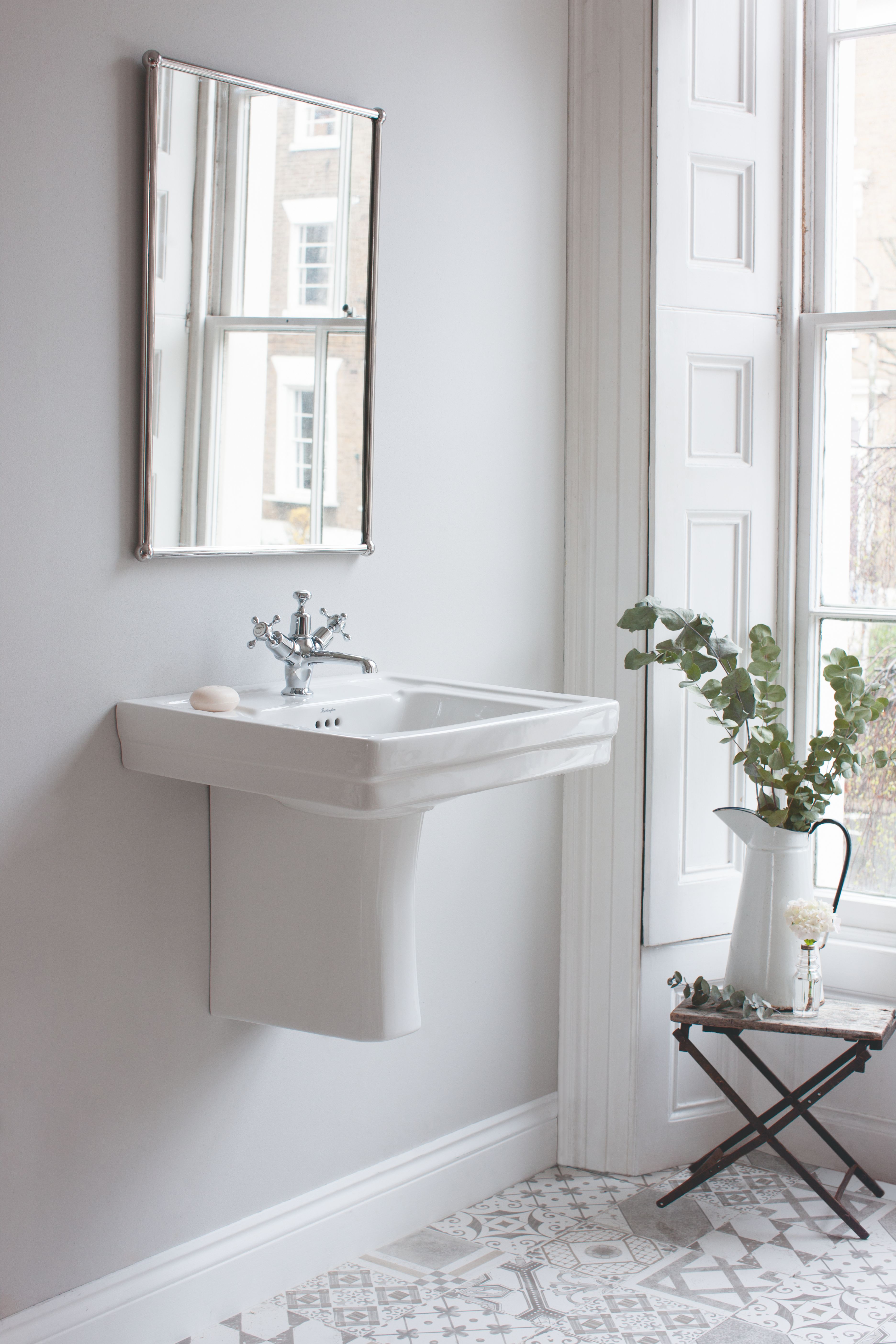

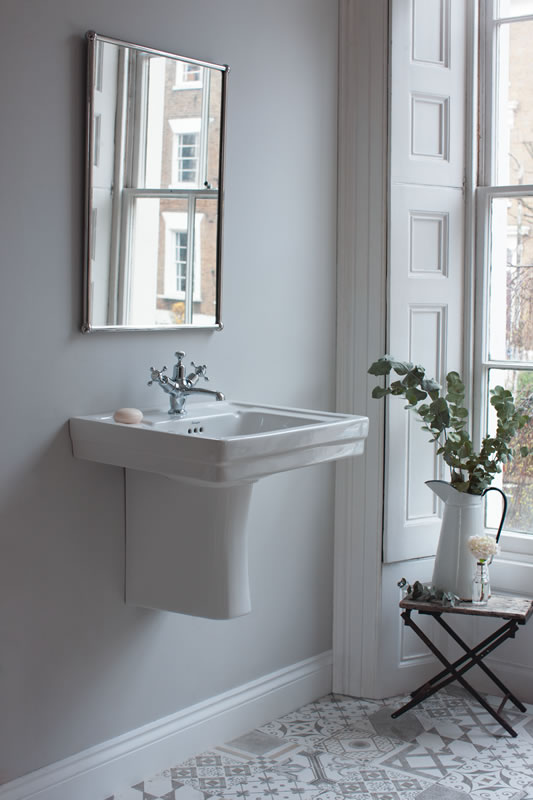

Lifestyle image 1 -
tiff
jpg -

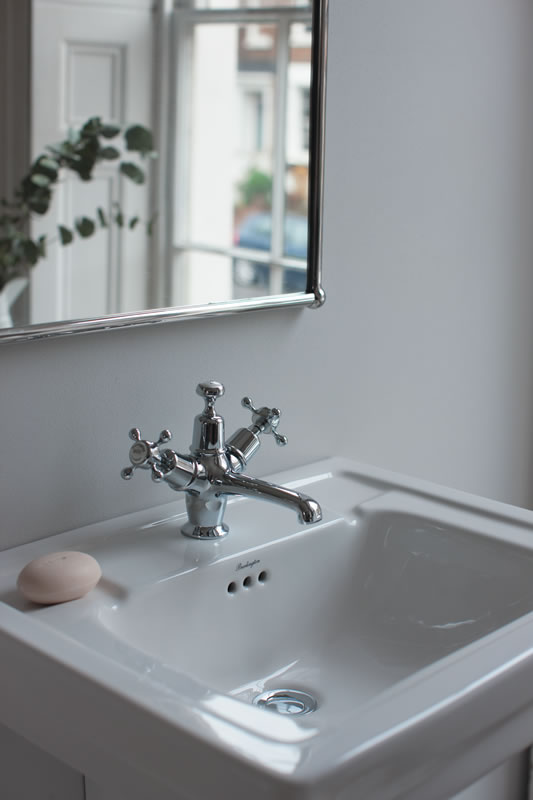

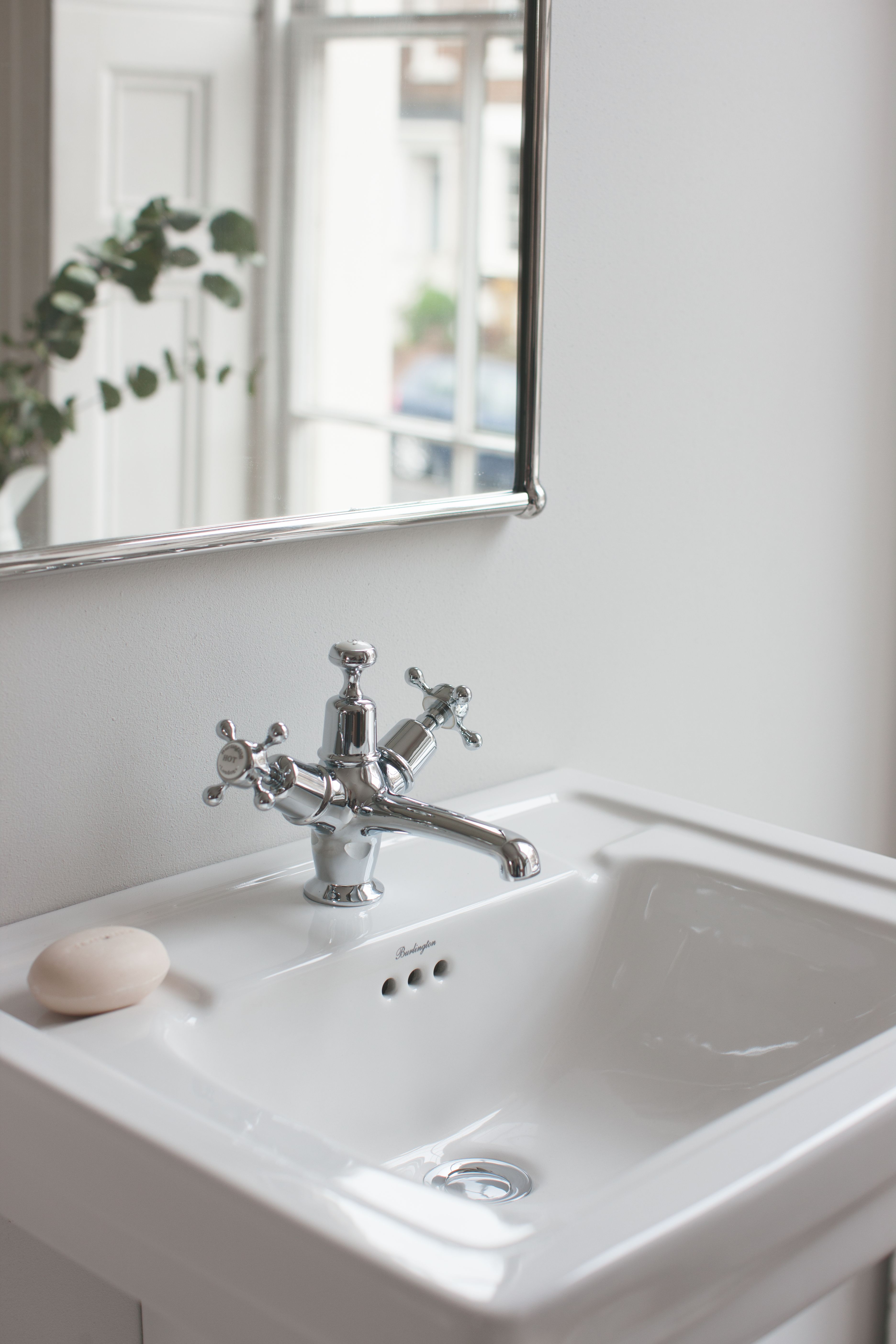

Lifestyle image 2 -
tiff
jpg -

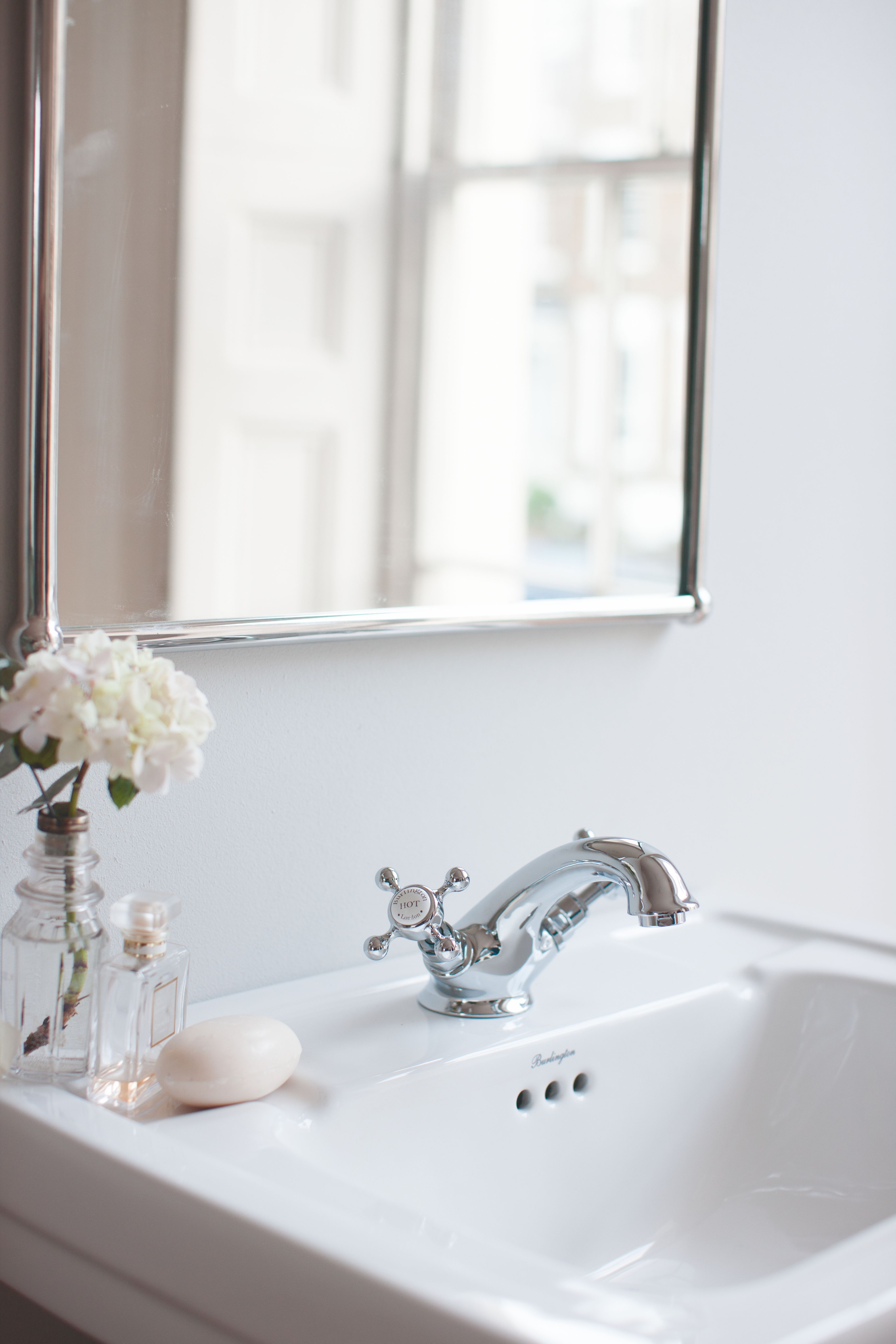

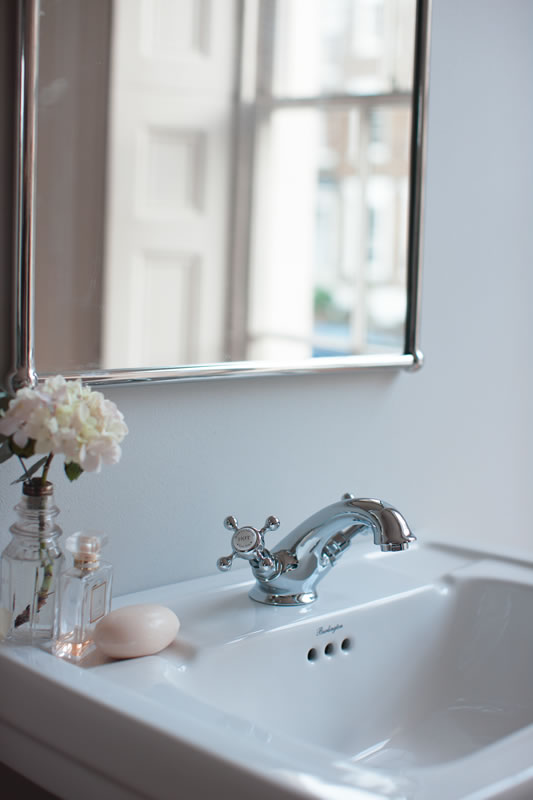

Lifestyle image 3 -
tiff
jpg -
Product image 1 -
jpg
-
Product image 2 -
jpg
