Edwardian 61cm basin
Product Options
mounting options
shelf options
with pedestal
|
with regal pedestal
|
with semi pedestal
|
|
with wash stand
|
with brushed nickel wash stand
|
with brushed nickel extended wash stand
|
|
no optional shelf
|

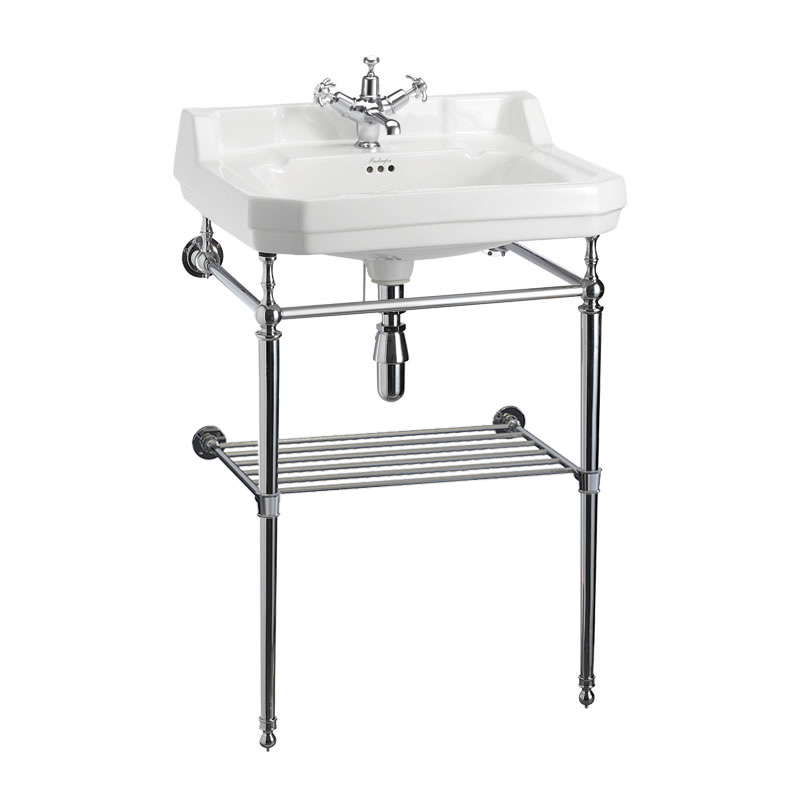

with optional shelf
|

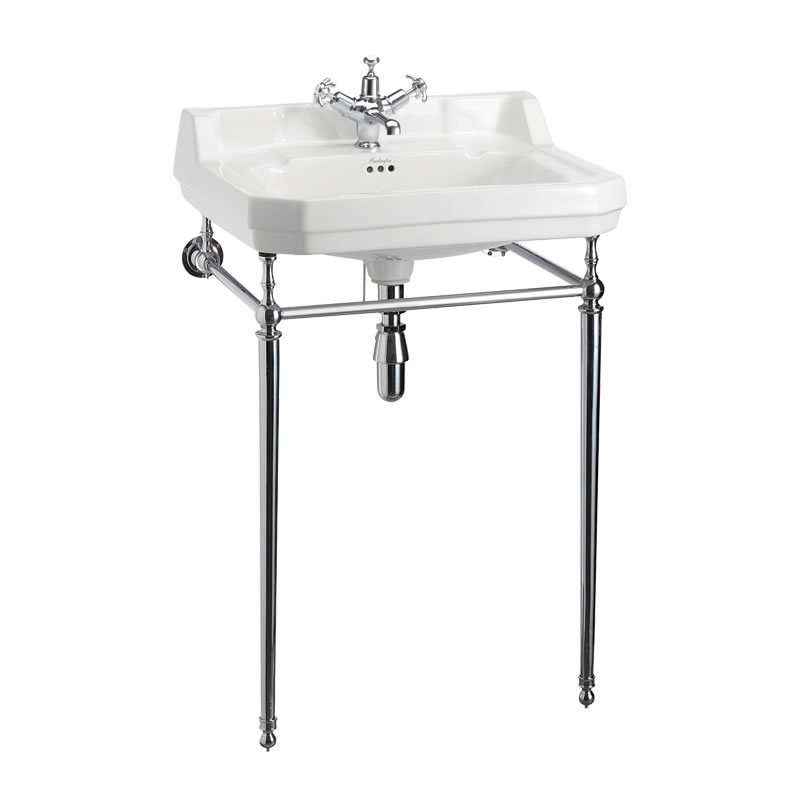

As Shown
| T23ACHR 61cm basin wash stand chrome |
| B51TH Edwardian 61cm basin one tap hole |
Nett Weight
| T23ACHR - wash stand - 3kg |
| B51TH - basin - 18.45kg |
Gross Weight Including Packaging
| T23ACHR - wash stand - 4kg |
| B51TH - basin - 21.65kg |
Packed Dimension
| T23ACHR - 710 x 300 x 125 = 0.0266 m3 |
| B51TH - 650 x 534 x 298 = 0.1034 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W14 - Traditional basin bottle trap |
| W18 - Flip-top basin waste slotted |
| SP843 | adjustable screw of Burlington basin stands (piece) |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP824 | floor fixings of Burlington basin stands (including 6pcs plug, 6pcs screws, 6pcs nipples washers and 2pcs floor nipples) |
| SP838 | foot for Burlington basin stands (piece) |
| SP1587 | grub screw for Burlington basin stands |
| SP848 | inner box of product T23A CHR, T49A CHR |
| SP1708 | leg for Burlington basin stand T21A CHR, T22A CHR, T23A CHR, T24A CHR, T50 CHR, T51 CHR |
| SP225 | rubber washer for basin stands |
| SP1462 | the whole part of the front rail for the basin stand T23A CHR |
Downloads
-
2D CAD-File - DWG -
B5 1TH T23A CHR
(B5 1TH_T23_20201127.dwg)
-

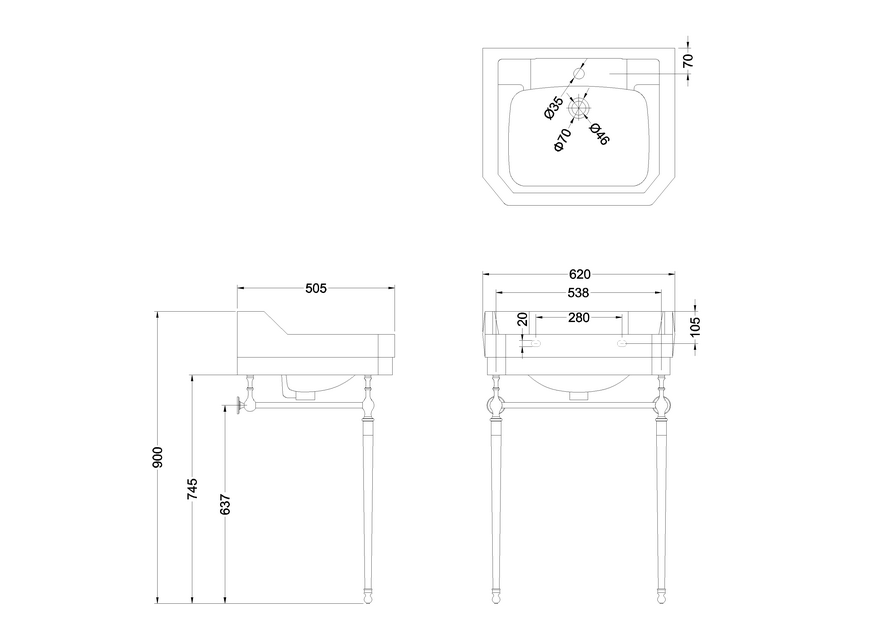

2D Drawing - PDF -
B5 1TH T23A CHR
(B5 1TH_T23_20201127.pdf)
2D Drawing - PDF - B5 1TH T23A CHR
