Edwardian 61cm basin
Product Options
mounting options
shelf options
with pedestal
|
with regal pedestal
|
with semi pedestal
|
with wash stand
|
with brushed nickel wash stand
|
with brushed nickel extended wash stand
|
|
no optional shelf
|

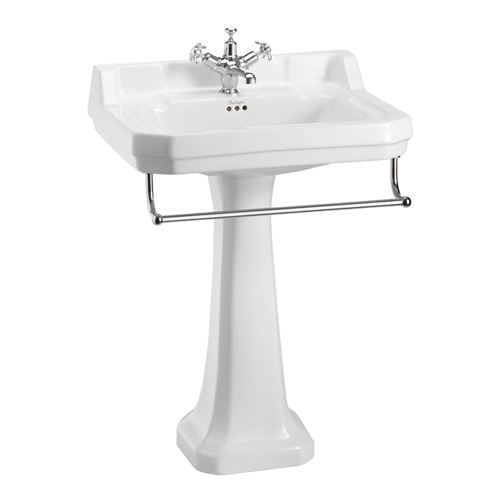

As Shown
| T3CHR 61cm towel rail chrome |
| P9 Regal pedestal |
| B51TH Edwardian 61cm basin one tap hole |
Gross Weight Including Packaging
| T3CHR - towel rail - 0.76kg |
| P9 - pedestal - 14.95kg |
| B51TH - basin - 21.65kg |
Packed Dimension
| T3CHR - 580 x 120 x 100 = 0.007 m3 |
| P9 - 732 x 307 x 270 = 0.0607 m3 |
| B51TH - 650 x 534 x 298 = 0.1034 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| T3 CHR - 61cm Towel rail chrome |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP122 | fixing for towel rail (pair) |
| SP618 | the set of 4 grub screws for T1CHR, T2CHR, T3CHR, T6CHR, T8CHR |
Downloads
- Instructions - PDF - T3CHR (English)
- Instructions - PDF - P9 (English)
- Instructions - PDF - T3CHR (French)
- Instructions - PDF - P9 (French)
-
2D CAD-File - DWG -
B5 1TH T3 CHR P9
(B5 1TH_P9_T3_20210805.dwg)
-

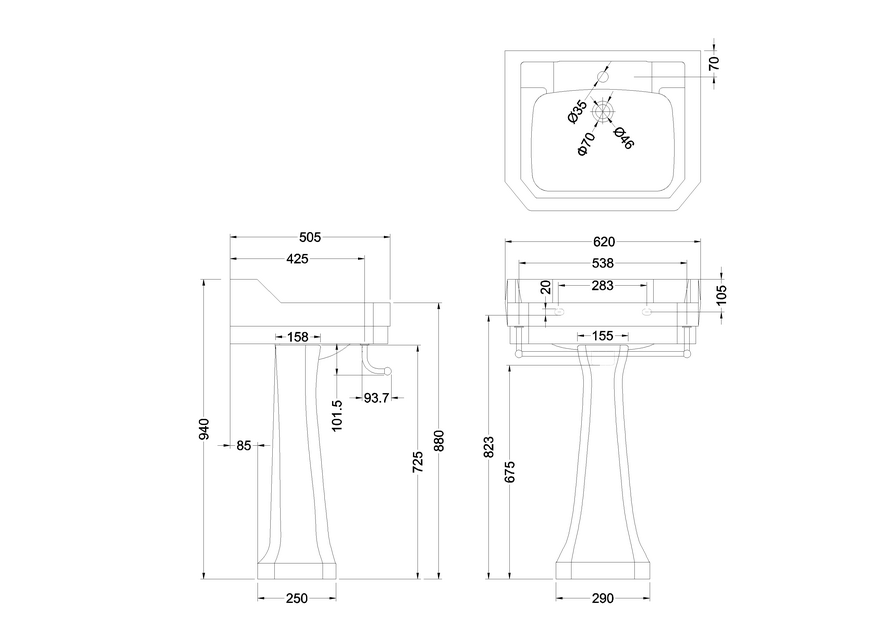

2D Drawing - PDF -
B5 1TH T3 CHR P9
(B5 1TH_P9_T3_20210805.pdf)
2D Drawing - PDF - B5 1TH T3 CHR P9
