Victorian 56cm basin
Product Options
mounting options
shelf options
with pedestal
|
with regal pedestal
|
with semi pedestal
|
|
with wash stand
|
with brushed nickel wash stand
|
with brushed nickel extended wash stand
|
|
no optional shelf
|

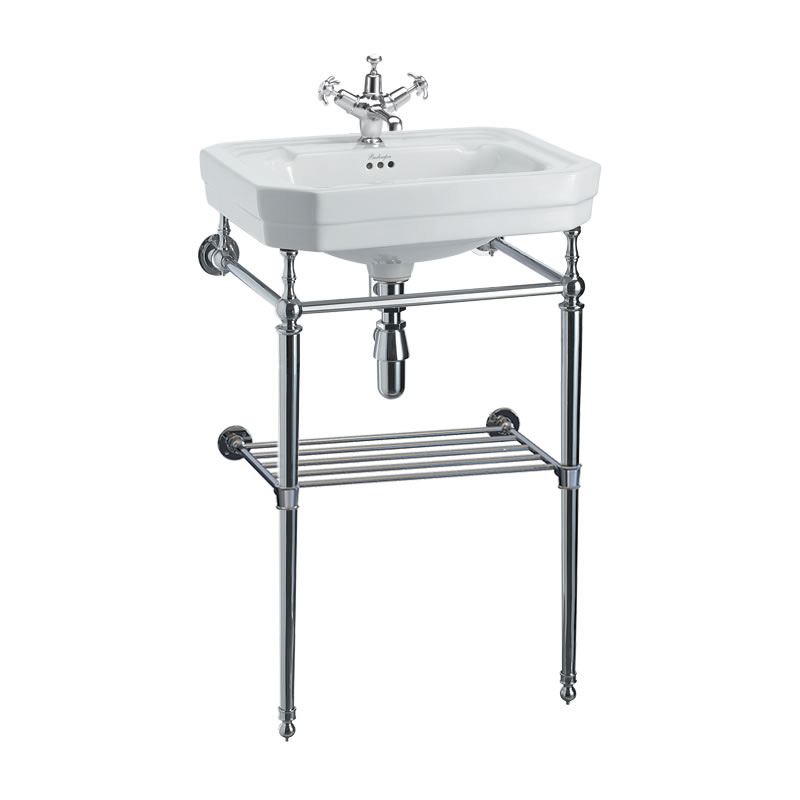

with optional shelf
|

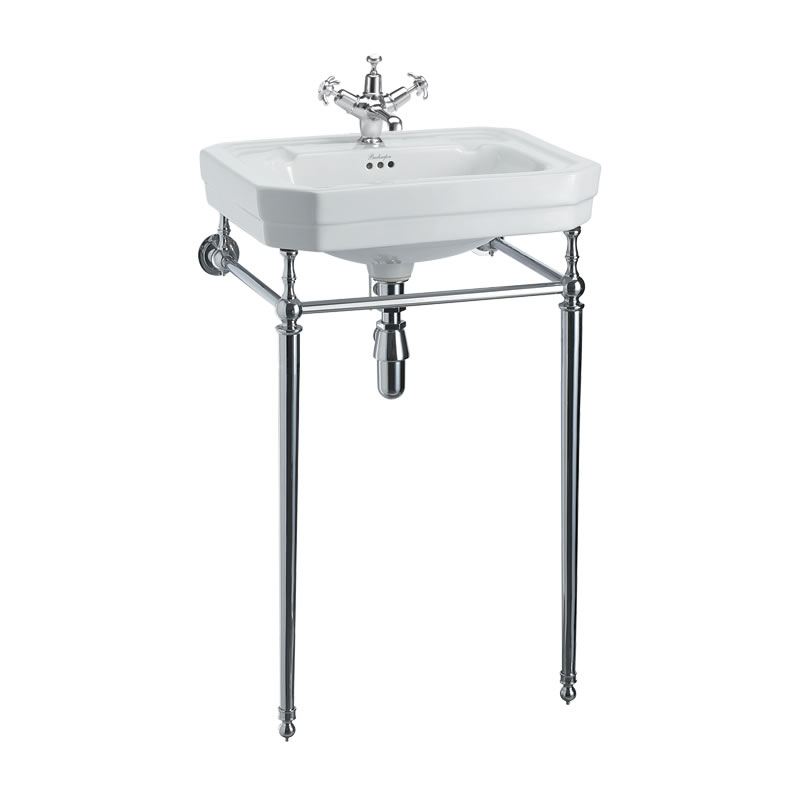

As Shown
| T22ACHR 56cm/58cm basin wash stand chrome |
| B21TH Victorian 56cm basin one tap hole |
Nett Weight
| T22ACHR - wash stand - 3kg |
| B21TH - basin - 16.4kg |
Gross Weight Including Packaging
| T22ACHR - wash stand - 4.12kg |
| B21TH - basin - 18.65kg |
Packed Dimension
| T22ACHR - 710 x 300 x 125 = 0.0266 m3 |
| B21TH - 577 x 487 x 217 = 0.061 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W14 - Traditional basin bottle trap |
| W18 - Flip-top basin waste slotted |
| SP843 | adjustable screw of Burlington basin stands (piece) |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP824 | floor fixings of Burlington basin stands (including 6pcs plug, 6pcs screws, 6pcs nipples washers and 2pcs floor nipples) |
| SP838 | foot for Burlington basin stands (piece) |
| SP1587 | grub screw for Burlington basin stands |
| SP1708 | leg for Burlington basin stand T21A CHR, T22A CHR, T23A CHR, T24A CHR, T50 CHR, T51 CHR |
| SP225 | rubber washer for basin stands |
Downloads
-
2D CAD-File - DWG -
B2 1TH T22A CHR
(B2 1TH T22A CHR _LD.dwg)
-

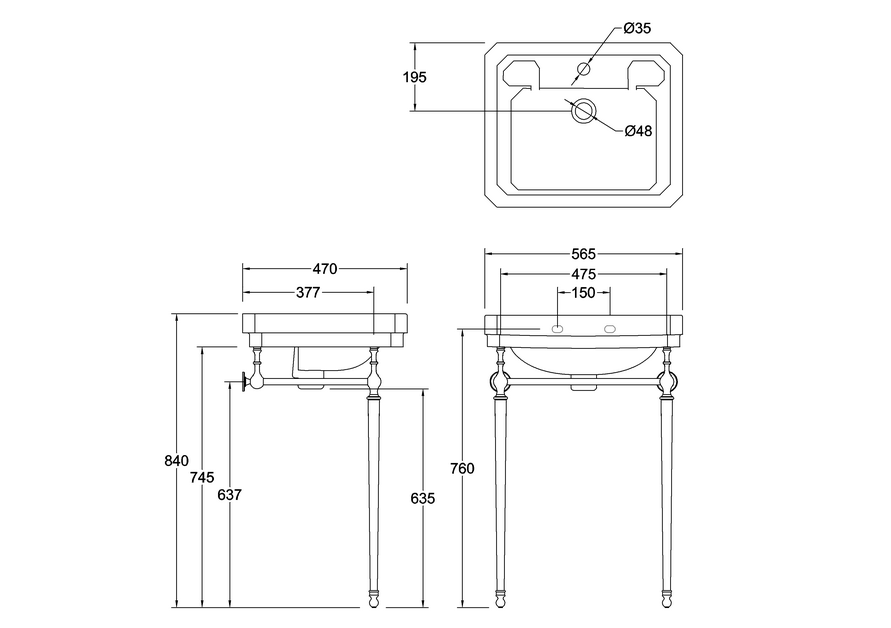

2D Drawing - PDF -
B2 1TH T22A CHR
(B2 1TH T22A CHR _LD.pdf)
2D Drawing - PDF - B2 1TH T22A CHR
-
3D DWG - File - DWG
-
B2 1TH T22A CHR
(2695.dwg)
-
3D DXF - File - DXF
-
B2 1TH T22A CHR
(2695.dxf)
-
3D IGS - File - IGS
-
B2 1TH T22A CHR
(2695.igs)
-
3D RFA BIMM Objects - File - RFA
-
B2 1TH T22A CHR
(2695.rfa)
-

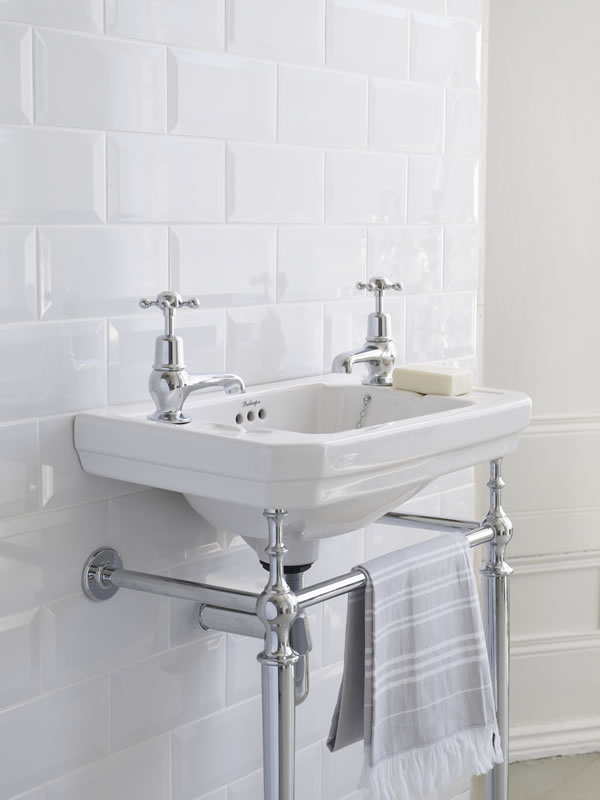

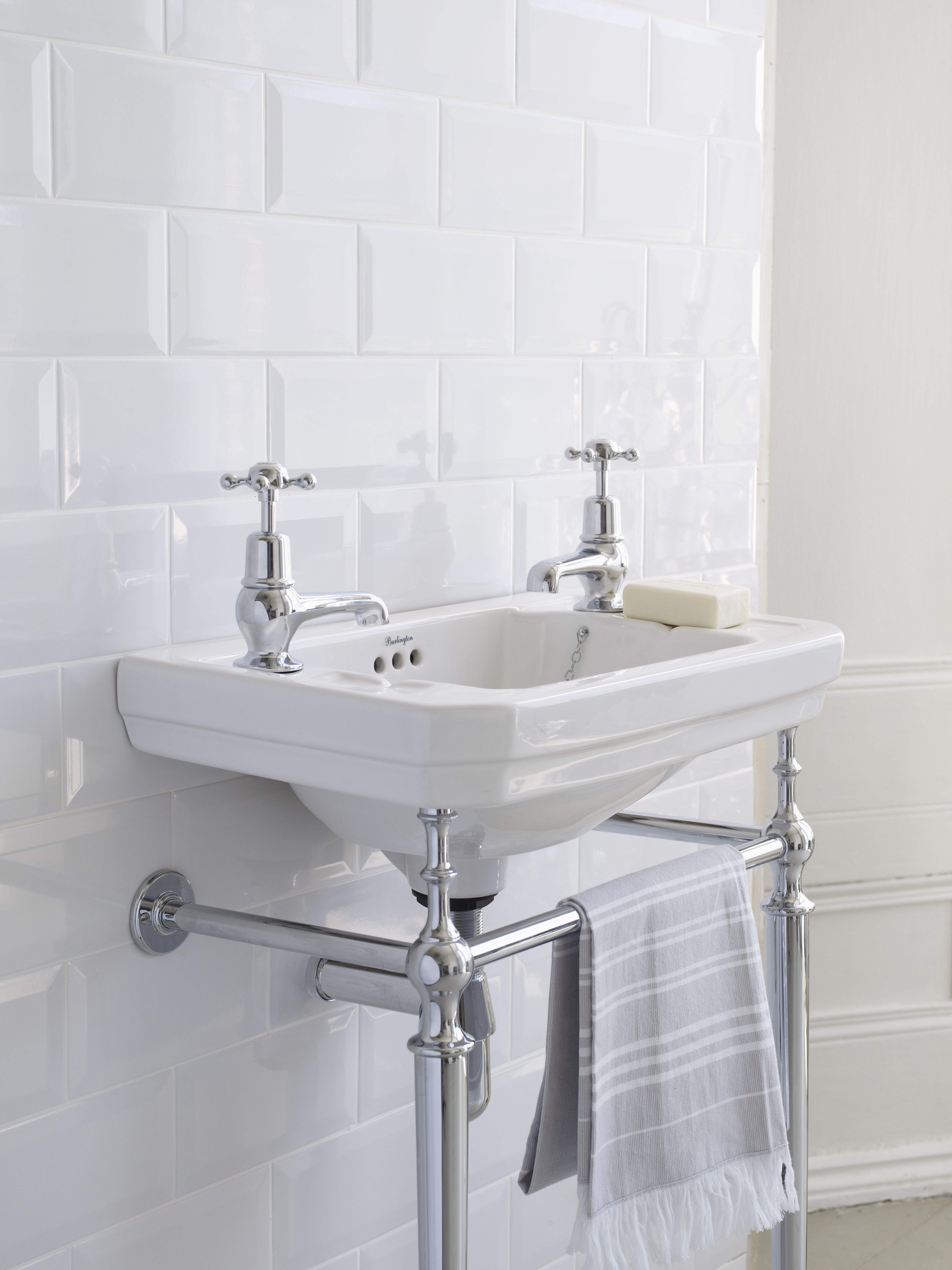

Lifestyle image 1 -
