Victorian 56cm basin
Product Options
mounting options
shelf options
with pedestal
|
with regal pedestal
|
with semi pedestal
|
with wash stand
|
with brushed nickel wash stand
|
with brushed nickel extended wash stand
|
|
no optional shelf
|

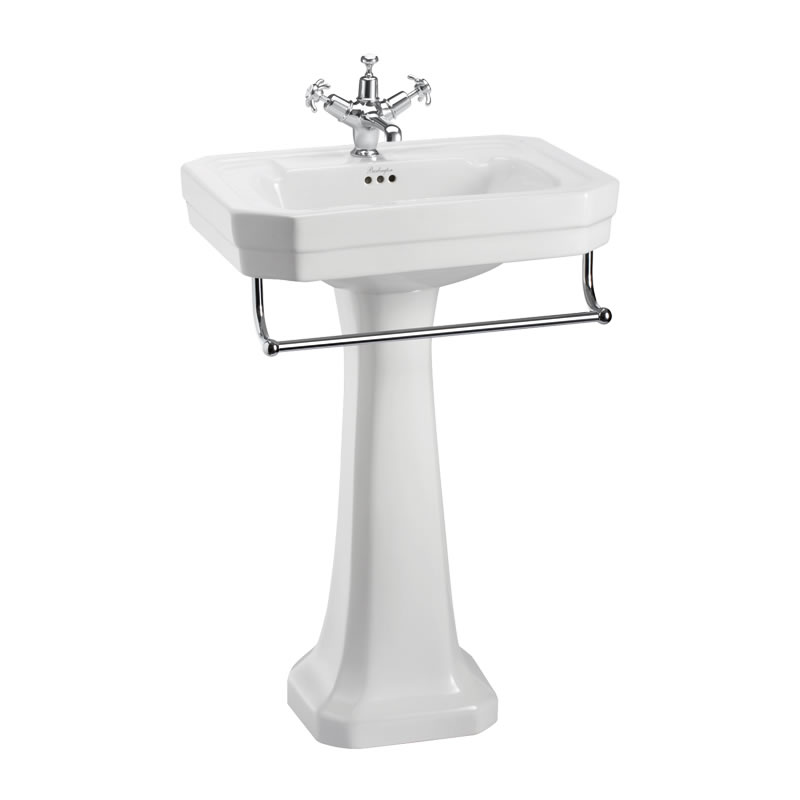

As Shown
| T1 CHR 56cm towel rail chrome |
| P9 Regal pedestal |
| B2 1TH Victorian 56cm basin one tap hole |
Colour
| T1 CHR - towel rail - Polished Chrome |
| P9 - pedestal - Gloss White |
| B2 1TH - basin - Gloss White |
Gross Weight Including Packaging
| T1 CHR - towel rail - 0.72kg |
| P9 - pedestal - 14.95kg |
| B2 1TH - basin - 18.65kg |
Packed Dimension
| T1 CHR - 535 x 125 x 100 = 0.0067 m3 |
| P9 - 732 x 307 x 270 = 0.0607 m3 |
| B2 1TH - 577 x 487 x 217 = 0.061 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| T1 CHR - 56cm Towel rail chrome |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP122 | fixing for towel rail (pair) |
| SP618 | the set of 4 grub screws for T1CHR, T2CHR, T3CHR, T6CHR, T8CHR |
Downloads
- Instructions - PDF - T1 CHR (English)
- Instructions - PDF - P9 (English)
- Instructions - PDF - T1 CHR (French)
- Instructions - PDF - P9 (French)
-
2D CAD-File - DWG -
B2 1TH T1 CHR P9
(B2 1TH T1 CHR P9_20210805.dwg)
-

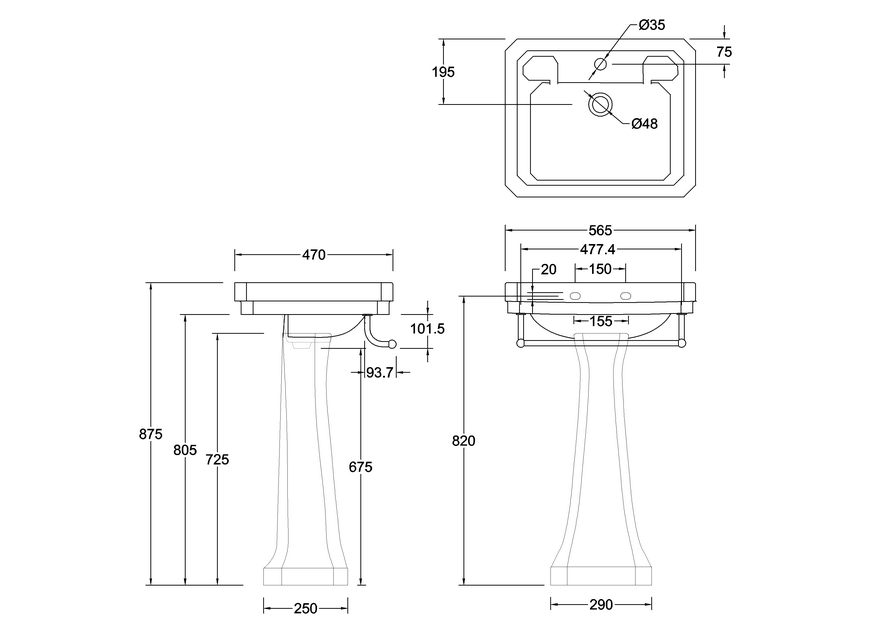

2D Drawing - PDF -
B2 1TH T1 CHR P9
(B2 1TH T1 CHR P9_20210805.pdf)
2D Drawing - PDF - B2 1TH T1 CHR P9
-
3D DWG - File - DWG
-
B2 1TH T1 CHR P9
(2741.dwg)
-
3D DXF - File - DXF
-
B2 1TH T1 CHR P9
(2741.dxf)
-
3D IGS - File - IGS
-
B2 1TH T1 CHR P9
(2741.igs)
-
3D RFA BIMM Objects - File - RFA
-
B2 1TH T1 CHR P9
(2741.rfa)
