Edwardian Rectangular
Product Options
tap hole options
Finish Options
options
1 tap hole
|
2 tap holes
|
|
white
|
wall hung
|
with wash stand
|
with towel rail
|

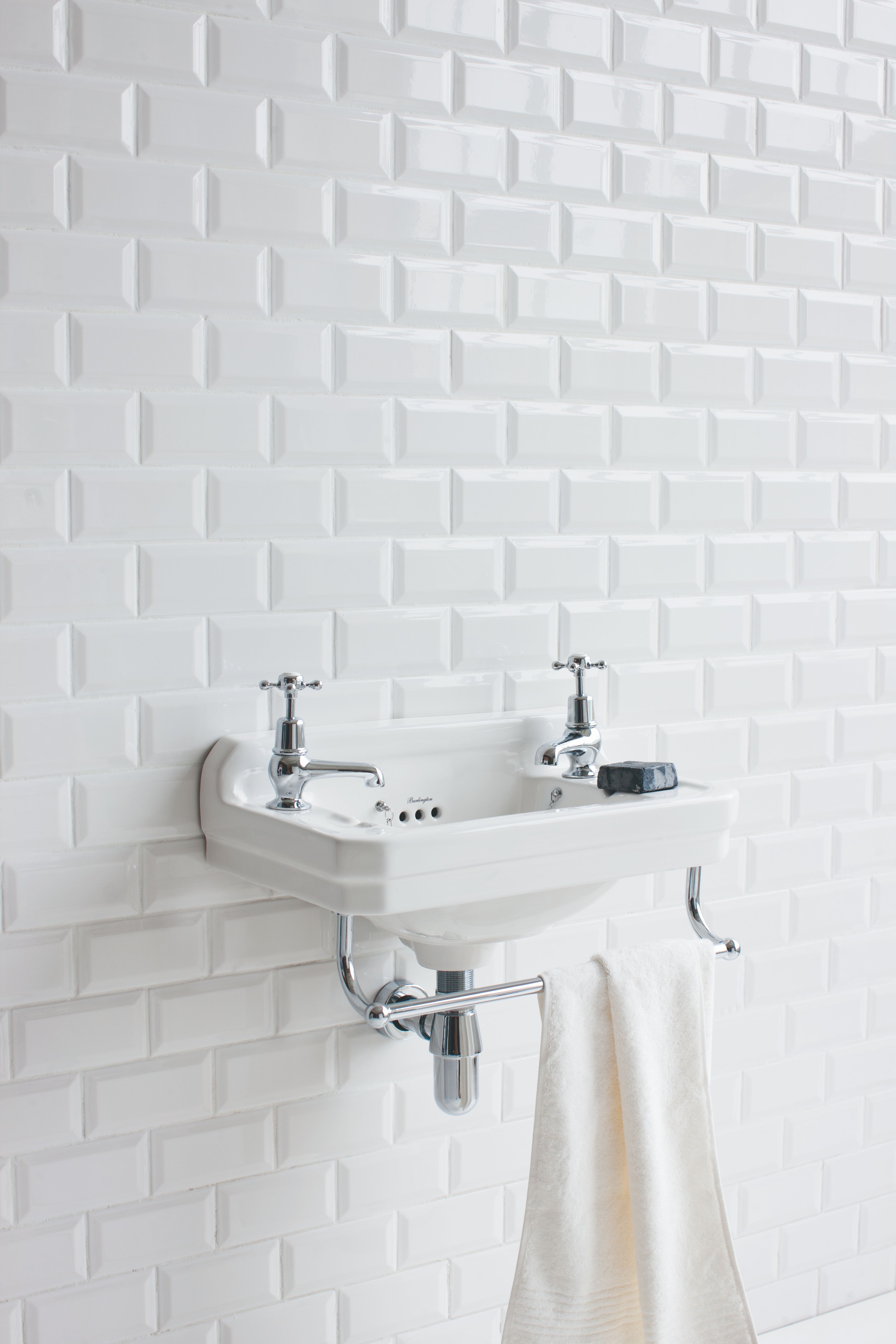

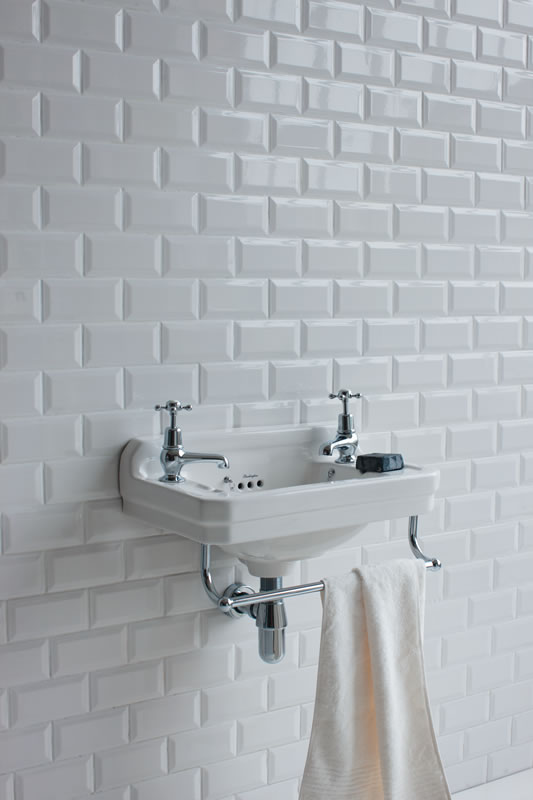

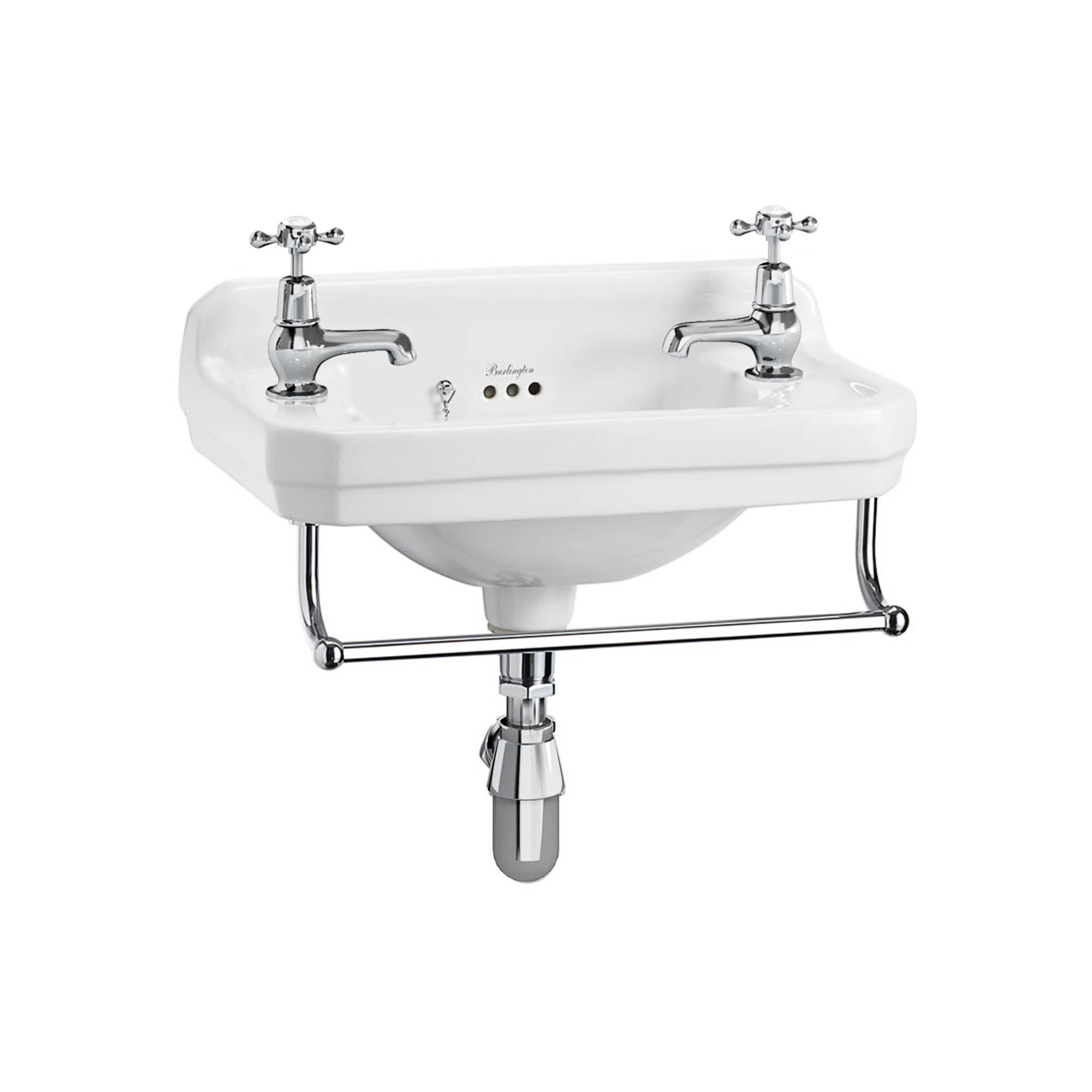

As Shown
| B8 510mm Edwardian cloakroom basin 2TH |
| T6CHR Cloakroom towel rail chrome |
Nett Weight
| B8 - basin - 10.05kg |
| T6CHR - towel rail - 0.46kg |
Gross Weight Including Packaging
| B8 - basin - 11.9kg |
| T6CHR - towel rail - 0.62kg |
Packed Dimension
| B8 - 547 x 337 x 280 = 0.0516 m3 |
| T6CHR - 495 x 110 x 100 = 0.0054 m3 |
Tap Hole Options
| Available with one (B8L or B8R) or two (B8) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| T6 CHR - Cloakroom towel rail chrome |
| SP122 | fixing for towel rail (pair) |
| SP618 | the set of 4 grub screws for T1CHR, T2CHR, T3CHR, T6CHR, T8CHR |
| SP86 | wall brackets for cloakroom basins |
Downloads
- Instructions - PDF - B8 (English)
- Instructions - PDF - T6CHR (English)
- Instructions - PDF - B8 (French)
- Instructions - PDF - T6CHR (French)
-
2D CAD-File - DWG -
B8 T6 CHR
(B8 T6 CHR_20200602.dwg)
-
2D CAD-File - DWG -
B8 T6 CHR
(B8 T6 CHR_LD.dwg)
-

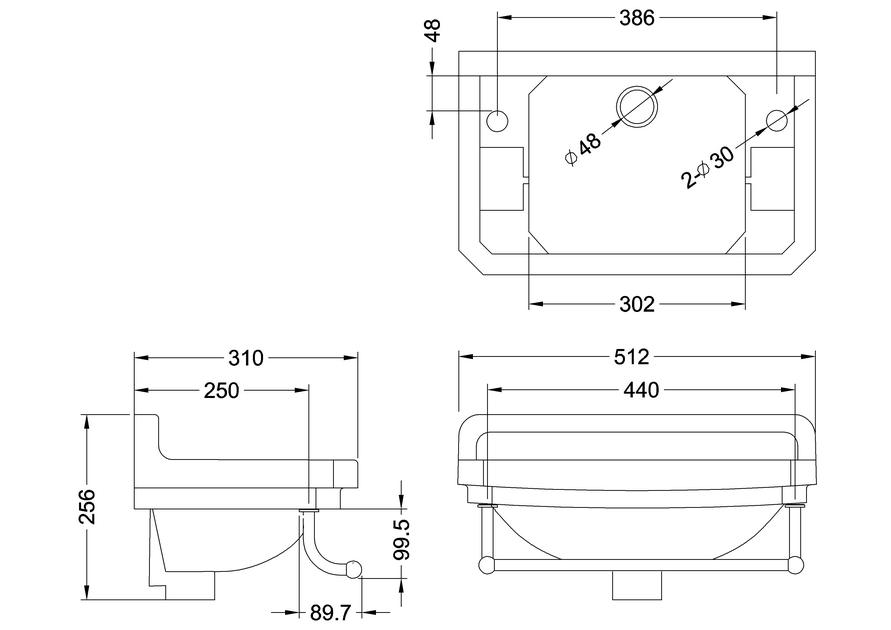

2D Drawing - PDF -
B8 T6 CHR
(B8 T6 CHR_20200602.pdf)
2D Drawing - PDF - B8 T6 CHR
-
3D DWG - File - DWG
-
B8 T6 CHR
(B8_edwardian51cloakroombasin-with T6.dwg)
-
3D RFA BIMM Objects - File - RFA
-
B8 T6 CHR
(B8_edwardian51cloakroombasin-with T6.rfa)
-
3D STP - File - STP
-
B8 T6 CHR
(T6.stp)
-
Lifestyle image 1 -
tiff
jpg -
Lifestyle image 2 -
tiff
pending.
-
Product image 1 -
jpg
-
Product image 2 -
jpg
