Edwardian Rectangular
Product Options
tap hole options
Finish Options
options
1 tap hole
|
2 tap holes
|
|
white
|
wall hung
|
with wash stand
|
with towel rail
|

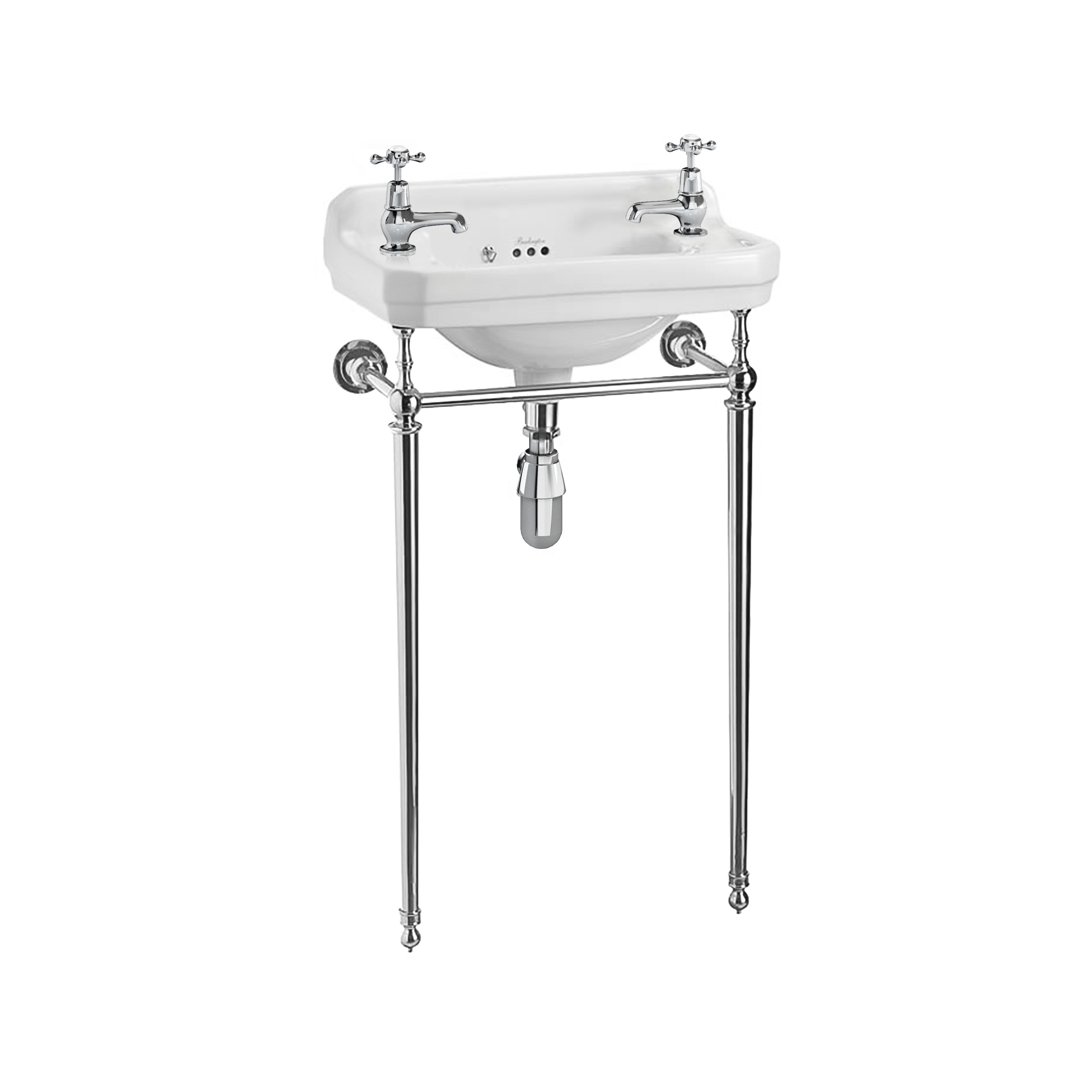

As Shown
| B8 510mm Edwardian cloakroom basin 2TH |
| T21ACHR 51cm cloakroom basin wash stand chrome |
Nett Weight
| B8 - basin - 10.05kg |
| T21ACHR - wash stand - 2.6kg |
Gross Weight Including Packaging
| B8 - basin - 11.9kg |
| T21ACHR - wash stand - 3.29kg |
Packed Dimension
| B8 - 547 x 337 x 280 = 0.0516 m3 |
| T21ACHR - 710 x 300 x 125 = 0.0266 m3 |
Tap Hole Options
| Available with one (B8L or B8R) or two (B8) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
The 2 legs are held securely in place by 2 floor mounted nipples |
|
To raise the height of the wash stand by 6cm use the additional item T62 |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W14 - Traditional basin bottle trap |
| W18 - Flip-top basin waste slotted |
| SP843 | adjustable screw of Burlington basin stands (piece) |
| SP824 | floor fixings of Burlington basin stands (including 6pcs plug, 6pcs screws, 6pcs nipples washers and 2pcs floor nipples) |
| SP838 | foot for Burlington basin stands (piece) |
| SP1587 | grub screw for Burlington basin stands |
| SP1708 | leg for Burlington basin stand T21A CHR, T22A CHR, T23A CHR, T24A CHR, T50 CHR, T51 CHR |
| SP225 | rubber washer for basin stands |
| SP86 | wall brackets for cloakroom basins |
Downloads
- Instructions - PDF - B8 (English)
- Instructions - PDF - T21ACHR (English)
- Instructions - PDF - B8 (French)
- Instructions - PDF - T21ACHR (French)
-
2D CAD-File - DWG -
B8 T21A CHR
(B8 T21A CHR _LD.dwg)
-
2D Drawing - PDF -
B8 T21A CHR
(B8 T21A CHR _LD.pdf)
2D Drawing - PDF - B8 T21A CHR
-
3D DWG - File - DWG
-
B8 T21A CHR
(2746.dwg)
-
3D DXF - File - DXF
-
B8 T21A CHR
(2746.dxf)
-
3D IGS - File - IGS
-
B8 T21A CHR
(2746.igs)
-
3D RFA BIMM Objects - File - RFA
-
B8 T21A CHR
(2746.rfa)
-
