Standard P trap horizontal outlet P5
Product Options
Finish options
WC options
handle options
|
White
|
|
with lever flush 52cm wide cistern C1
|
with lever flush 44cm wide cistern C3
|
with push button flush 52cm wide cistern C2
|
with push button flush 44cm wide cistern C4
|
white & chrome
|
white & nickel
|
white & gold
|
black & chrome
|
walnut & chrome
|
white & brushed nickel
|

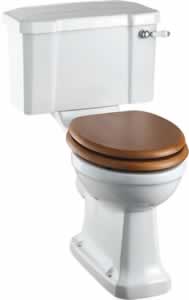

As Shown
| C1 510mm close coupled/low level ceramic lever cistern |
| P5 Close coupled pan |
| S11 Golden oak seat |
| A51CHR Burlington seat handle Chrome |
Colour
| C1 - cistern - Gloss White |
| P5 - pan - Gloss White |
| S11 - seat - Oak |
| A51CHR - accessories - Polished Chrome |
Material
| C1 - cistern - Vitreous China |
| P5 - pan - Vitreous China |
| S11 - seat - Molded Wood |
| A51CHR - accessories - Zinc Alloy |
Nett Weight
| C1 - cistern - 16.15kg |
| P5 - pan - 21.45kg |
| S11 - seat - 2.62kg |
| A51CHR - accessories - 0.04kg |
Gross Weight Including Packaging
| C1 - cistern - 18.45kg |
| P5 - pan - 24.15kg |
| S11 - seat - 2.84kg |
| A51CHR - accessories - 0.07kg |
Packed Dimension
| C1 - 537 x 227 x 360 = 0.0439 m3 |
| P5 - 672 x 370 x 475 = 0.1181 m3 |
| S11 - 440 x 373 x 65 = 0.0107 m3 |
| A51CHR - 60 x 60 x 100 = 0.0004 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
P trap standard height pan - height from floor to pan rim is 42cm. |
|
Water Inlet valve hole is located on the base of cistern tank on the right hand side |
|
Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). |
|
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug. |
|
Dual flush cistern fittings with ceramic lever on the right. |
|
Press lever down for 6 litre flush and up for 3 litre flush. |
|
Regal Height pan ( floor to pan rim height 48cm ) available : P12. |
|
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26. |
|
Metal connection bracket. |
|
Close coupled wc must be used with standard Burlington toilet seats. |
|
Supplied with floor fixings. |
|
Recommended to be used with cistern tank isolation valve W25. |
| SP11 | 51cm Cistern Lid for C1 & C2 |
| SP511 | back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug |
| SP1021 | bottom sealing washer of flush valve for product C1, C3, C3, C4 |
| SP509 | buffers for the seat ring & lid for S11, S12, S16, S17 |
| SP8 | ceramic Cistern lever for Close Coupled, Low Level Cistern |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP84 | cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve) |
| SP390GOLD | cistern Lever for C1, C3 - GOLD |
| SP620 | complete bar hinges for S11, S12 |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP504_2 | inlet valve for Burlington close coupled cisterns |
| SP508 | kit for close couple cistern |
| SP507 | kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR |
| SP5A | lever Flush Bottom Entry cistern fitting with ceramic lever |
| SP17 | screw fixing pack for pan and bidet |
| SP193 | spare Parts for S11, S12 |
| SP802 | the bigger stopper for SP5A, ARCSP7, C24C, SP7 |
| SP387 | WC floor fixing plastic caps - GOLD |
| SP1744 | white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals |
