Traditional bottle trap

asaq2.Model.Web_product_new?.web_name

Product Options

Finish Options

Traditional basin bottle trap

Chrome

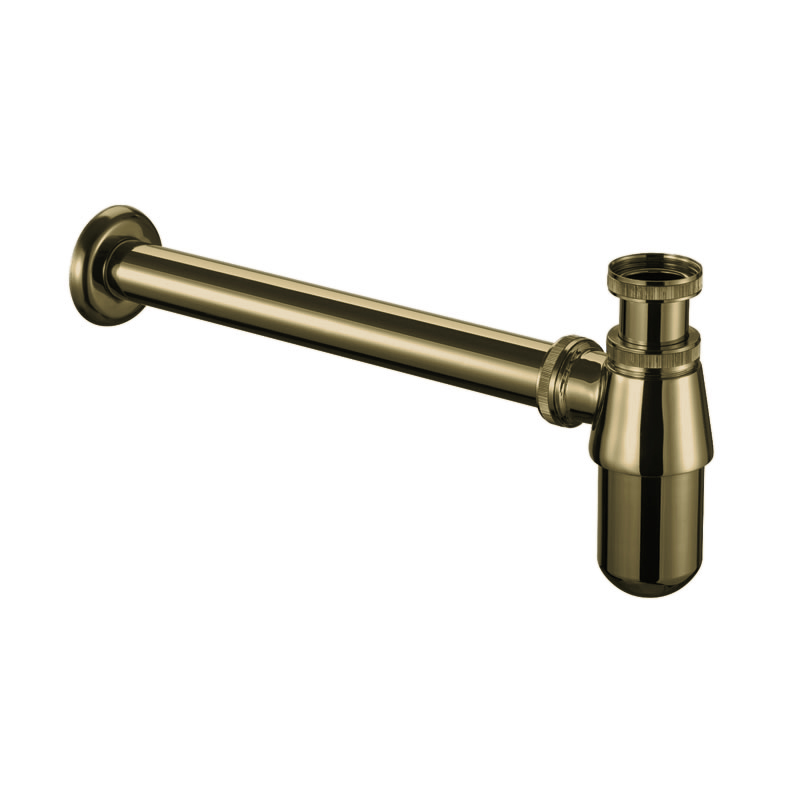

Traditional basin bottle trap

Gold

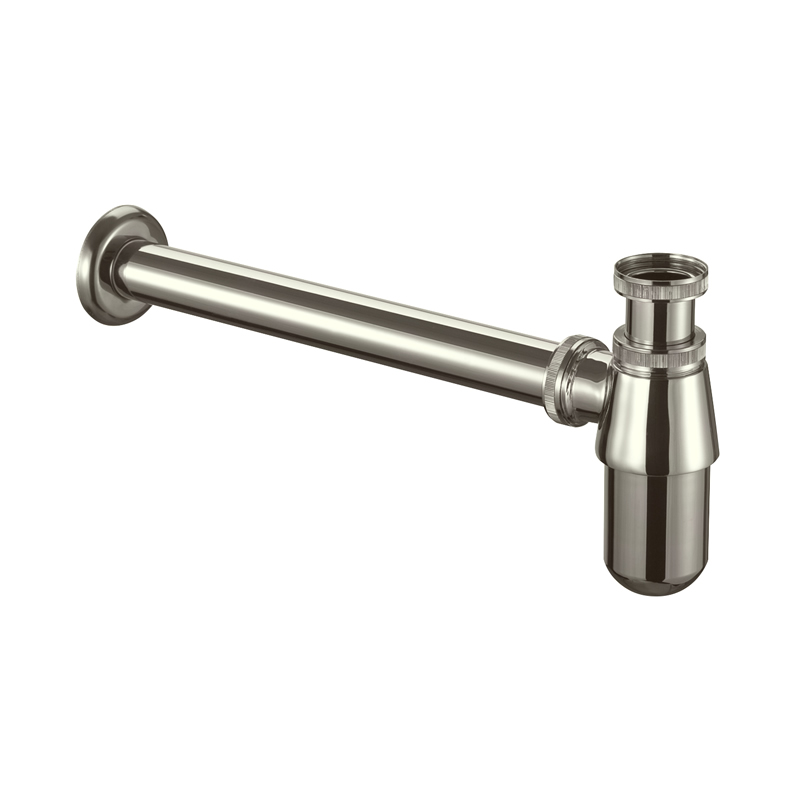

Traditional bottle trap with extended wall tube

Nickel

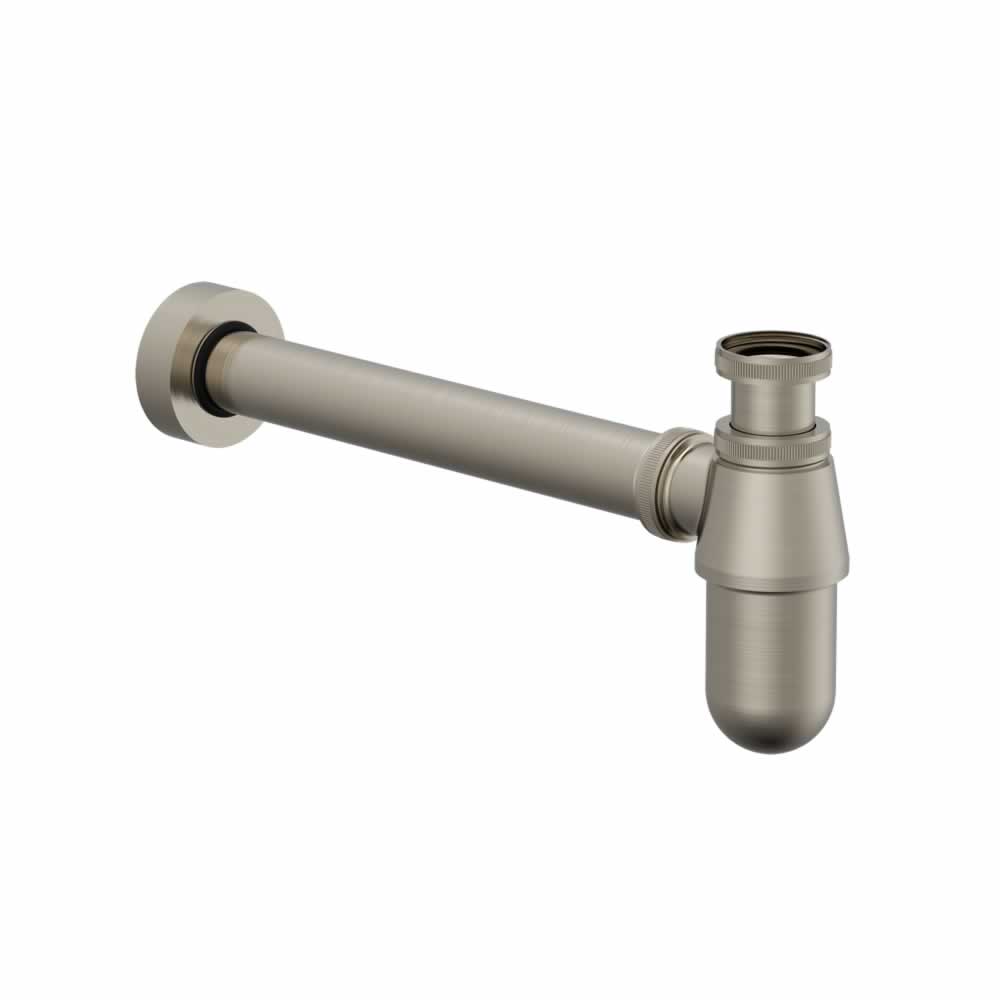

Round Bottom Basin Bottle Trap Brushed Nickel

Brushed Nickel

Alternate Text

As Shown

W14 −

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

N/A

SP909	Chrome pipe of product W14
SP1018	bottom part of product W14
SP1876CHR	extended neck (123mm length) in chrome finish for W14, W13
SP1097	inner box for the W14
SP2026	o ring (between trap body and pipe) for all finishes of W13, W14, W14GOLD, W14BNKL, HOX.0402MB, HOX.0402BB
SP1217	the top washer for all finishes products of W14, W17, W15, W13, HOX.0402
SP1284	wall decorative cover for W13, W14, W17

Downloads

Instructions - PDF - W14 (English)
Instructions - PDF - (French)

2D CAD-File - DWG - W14 (W14_LD.dwg)

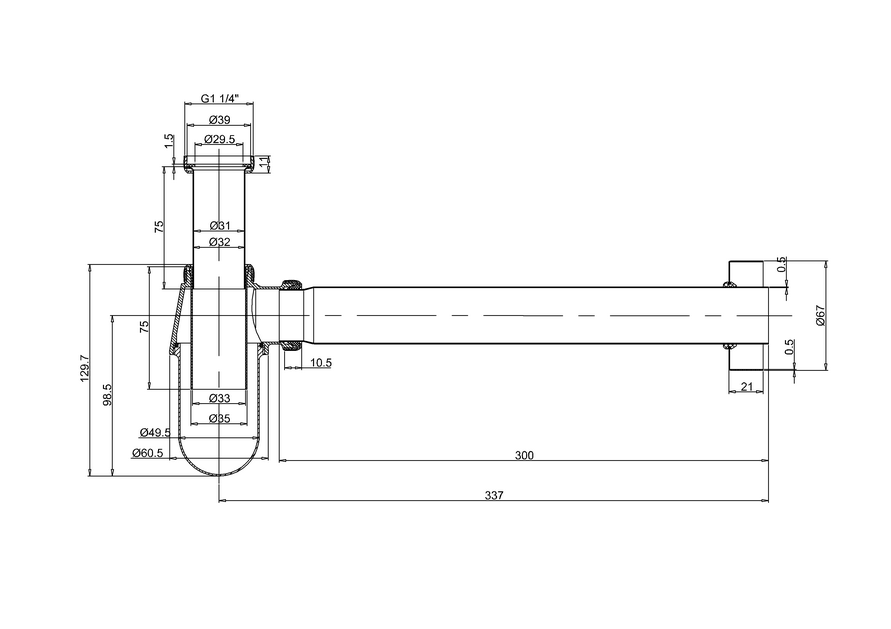

2D Drawing - PDF - W14 (W14_LD.pdf) 2D Drawing - PDF - W14

3D DWG - File - DWG - W14 (W14.dwg)
3D DXF - File - DXF - W14 (W14.dxf)
3D IGS - File - IGS - W14 (W14.igs)
3D RFA BIMM Objects - File - RFA - W14 (W14.rfa)

Lifestyle image 1 - tiff pending.
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
