Traditional bottle trap

asaq2.Model.Web_product_new?.web_name

Product Options

Finish Options

Traditional basin bottle trap

Chrome

Traditional basin bottle trap

Gold

Traditional bottle trap with extended wall tube

Nickel

Round Bottom Basin Bottle Trap Brushed Nickel

Brushed Nickel

Alternate Text

As Shown

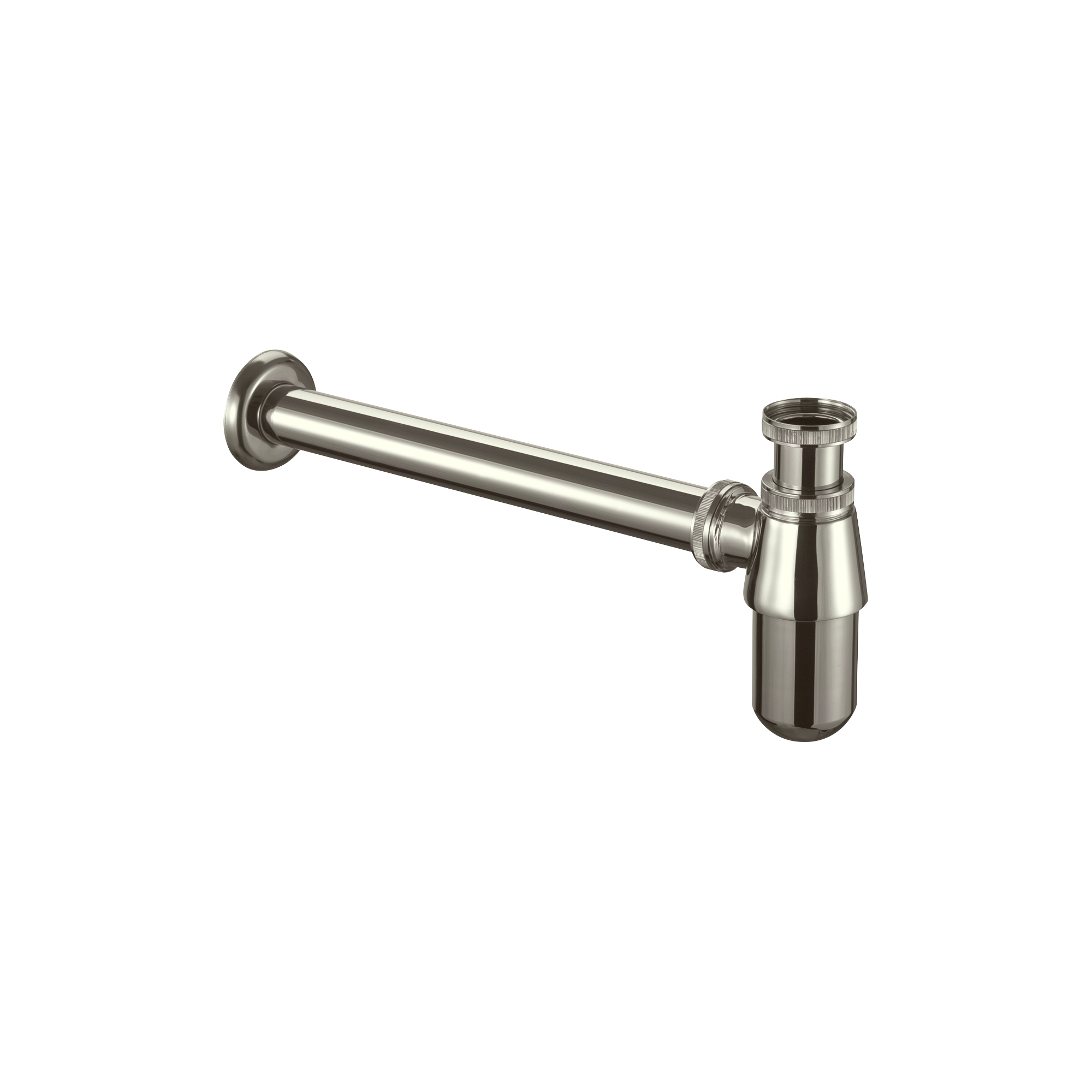

W14 NKL Round bottom basin bottle trap -nickel

Colour

W14 NKL - waste - Polished Nickel

Material

W14 NKL - waste - Brass

Size

W14 NKL - 357 x 67 x 190mm

Nett Weight

W14 NKL - waste - 0.654kg

Gross Weight Including Packaging

W14 NKL - waste - 0.84kg

Packed Dimension

W14 NKL - 400 x 150 x 60 = 0.0036 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

N/A

SP1217

the top washer for all finishes products of W14, W17, W15, W13, HOX.0402

Downloads

Instructions - PDF - W14 NKL (English)
Instructions - PDF - W14 NKL (French)

2D CAD-File - DWG - W4 NKL (ARCW14 NKL_LD.dwg)

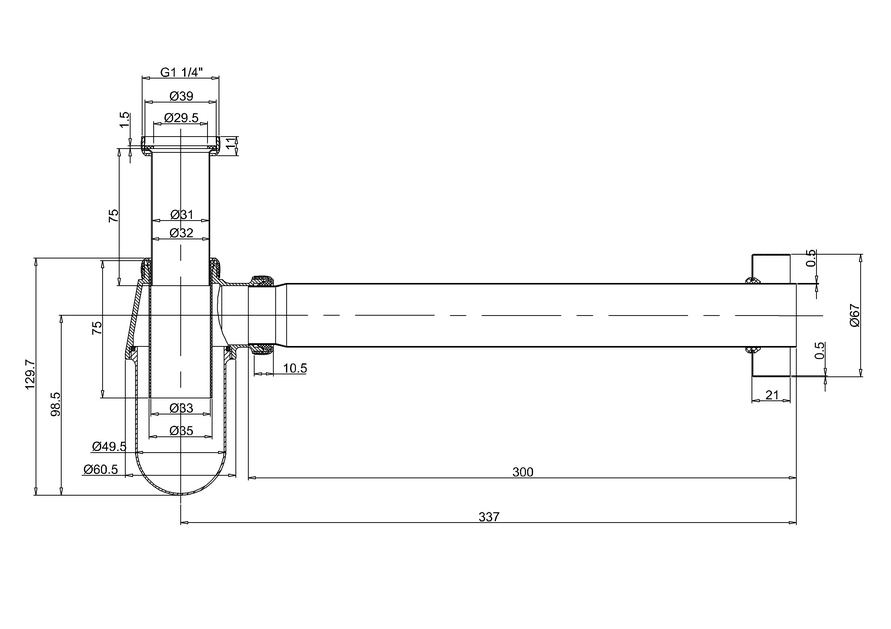

2D Drawing - PDF - W4 NKL (ARCW14 NKL_LD.pdf) 2D Drawing - PDF - W4 NKL

3D DWG - File - DWG - W4 NKL (W14.dwg)
3D DXF - File - DXF - W4 NKL (W14.dxf)
3D IGS - File - IGS - W4 NKL (W14.igs)
3D RFA BIMM Objects - File - RFA - W4 NKL (W14.rfa)

Product image 1 - jpg
Product image 2 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
